Product Overview

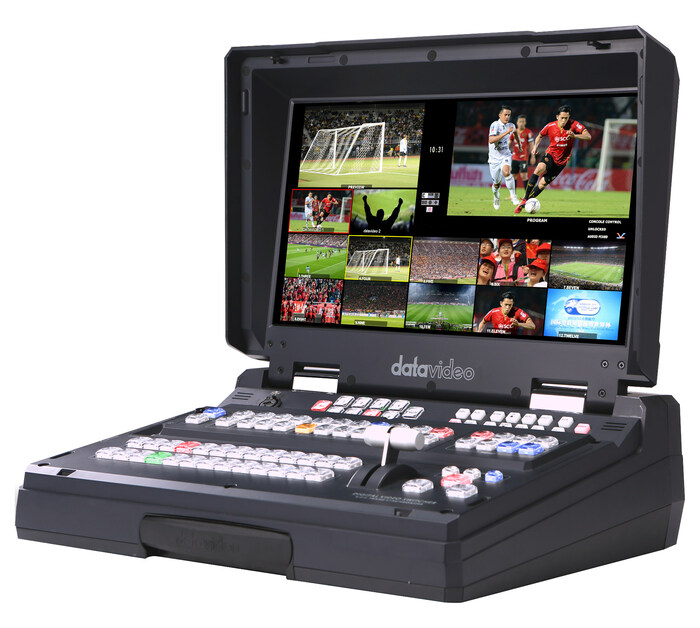

The Datavideo HS-2850-12 is a cost-effective, 12-channel, 10-bit 1920 x 1080i broadcast-quality mobile hand carry switcher. Featuring 12 digital inputs, it is designed for live events and TV programs that need to blend a variety of video and audio sources. This model is lightweight, portable, and powerful, with features perfect for mobile switching.
As a complete AV package, the HS-2850 HD mobile studio enables users to switch seamlessly between video and audio sources and blend high-quality digital content on the fly. Advanced features include a 17.3" video monitor which displays multiple sources, as well as preview and program.
The system is equipped with an eight-way intercom system and is supplied with 4 belt packs for effective communication between the whole production crew. The HS-2850 is ideal for TV and video professionals working in outside broadcast or temporary video studios, such as theatres or conference centers. The HS-2850 is also a great value solution for the worship, education, and AV markets.
Includes
- 1 x HS-2850 Unit
- 1 x AD Switch DC 12V with AC Cord
- 1 x CB-41 / XLR to XLR Cable
- 4 x CB-3 / XLR cable
- 1 x CG-200 Utility CD w/ CD Bag
- 1 x USB Light
- 1 x Goose neck MIC
- 4 x Headphone Microphone
- 4 x ITC-100SL
- 1 x Tally light 1
- 4 x Velcro
Features
- Supports 12 HD or SD Inputs in a variety of configurations:
- HD Mode: (1) 12 HD-SDI , (2) 9 HD-SDI + 3 HDMI
- SD Mode: (1) 12 SD-SDI , (2) 9 SDI + 3 HDMI
- 6 user-defined output options on 3 SDI output channels
- 1 HDMI output for multi-view monitoring
- 4x XLR Analogue Audio Inputs, 2x XLR Analogue Audio Outputs
- User defined and positioned dual PIP.
- Two DSK with a set up choice of basic Luma key or alpha channel
- Built-in title overlay system (TC-200) that works with CG systems
- Cut, Mix and Wipe with border
- Logo and Clock on screen
- XPT (Cross Point Assignment)
- Audio delay for each de-embedded audio source
- SMPTE/ EBU Audio selectable via OSD
- Black burst PAL or Tri-Level Sync Reference
- Tally, GPI support
- Build in 8CH Intercom system
- One 17.3" with a resolution of 1600x900 dots
Specifications
- Model Name: HS-2850
- Product Name: HD/SD 12-Channel Portable Video Studio
- Video Standard: HD & SD
- Video Format:
- 3G/HD/SD input:
- 1080i 50/59.94/60Hz
- 1080p 25/30/59.94/60Hz
- HD Output: 1080i 50/59.94/60Hz
- SD: 576i 50Hz, 480i 59.94Hz
- Input Routable / Crosspoint: All 12, repeatable
- Video Input:
- Standard: 8x SDI, 2x HDMI
- Max: 12x SDI, 3x HDMI
- Computer Graphic Interface: Max 3 via HDMI
- Down-converted output: 2x SDI
- Video output:
- 3x SDI assignable:
- PGM, PVW, AUX & Clean Out
- 1x HDMI assignable:
- PGM & multi-view
- Audio input: 4x Balanced XLR
- Audio output: 2x Balanced XLR
- Embedded audio support:
- Input up to 16 channels
- Output 4 channels
- Audio Delay Calibration: Up to 8 frames
- A+V switching: Yes
- USK: N/A
- DSK: 2x DSK support Luma key & Linear key (Key /Fill)
- Picture in Picture: 2
- Logo Insertion: 2 (or 1 logo + 1 clock)
- Built-in Audio Mixer: N/A
- Built-in Monitor Display: 17.3” HD TFT LED backlit, 1600x900 pix
- Built-in Intercom & Tally: 8 channels (4 belt-packs incl.)
- Dimension (LxWxH): 17.91" x 13.98" x 5.28" (455 x 355 x 134 mm)
- Weight: 19.6 Lbs (9 Kg), Reinforced Plastic Case
- Accessory: CB-22H/23H/46/47/50
