ADJ AV6X-IS-4x2
4x2 AV6X Video Wall Package for Permanent Installation

OUR PART #:  AV6X-IS-4x2

The ADJ AV6X-IS-4x2 is a wall panel package for permantent installation.
Learn More

Call for price! Not available online.
List Price: $8,359.99

Similar Products

The ADJ AV6X-IS-4x2 is a wall panel package for permantent installation.

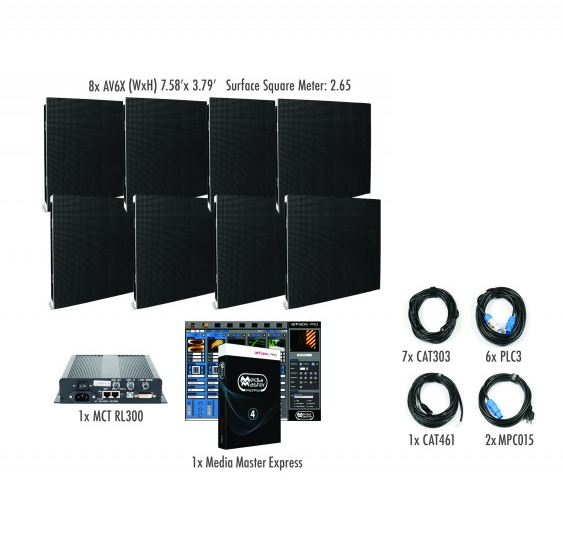

ADJ AV6X-IS-4x2 Includes:

  • 8x AV6 Video wall panels
  • 7x CAT303 Cables
  • 6x PLC3 Cables
  • 1x CAT461 Cable
  • 2x MPC015 Cable
  • 1x MCT RL300
  • 1x Media Master Express

ADJ AV6X-IS-4x2 Specifications:

  • Pixel Pitch: 0.25” (3.91mm)
  • LED Configuration: 3-in-1 SMD2121 LED
  • Pixel Density: 96 x 96; 27,777 per square meter
  • Size: 22.75” x 22.75” x 3” (576 x 576 x 75mm)
  • Module Quantity: 4
  • Weight: 23lbs. (8.15Kg)
  • 8x AV6X (WxH): 7.58 ft x 3.79 ft
  • Surface Square Meter: 2.65
  • Surface Flatness: Gaps<0.5mm
  • Optical Ratings:
    • Brightness: 1200 NITS
    • View Angle:
      • Horizontal 140°
      • Vertical 140°
    • Distance: 20 ft. (6m)
    • Gray Scale / Display Color: 14Bit
    • Brightness Adjustment: 0~100% 100 Levels
    • Processing: 14-bit
  • Power Supply:
    • Operation Power: 100~240V 50-60Hz
    • Max. Power Consumption: 300W/per panel
    • Average Power Consumption: 120W/per panel
    • Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
  • Control System:
    • Control Mode: Nova Star Synchronous System with Control via DVI
    • Frame Update Frequency: 50-60Hz
    • Scan Mode: 1/12
    • Refresh Rate: 1200Hz
    • Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
    • Control Distance: Ethernet Cable <100m or Fiber Optic>120m
    • Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
    • Brightness Correction: Pixel, Module, Cabinet
  • Environmental:
    • Operating Temp / Humidity: -4° + 104°F (-20° + 40°C) / 10-90% (No Condensation)
    • Operating Life / MTBF: 50,000 Hours / 5,000 Hours
    • Protection Level: IP20 (Front and Back)
    • Out of Control Rate: <0.02%
    • Listings:  ETL, CE, FCC Class A
  • Optional Accessories:
    • AV6FC (AV3095): Flight Case - fits 8 AV6 Video Walls
    • AV6RB1 (AV3070): Rigging Bar - Connect up to 20 AV6 Video Walls
    • MCTRL-300: Video Processor
    • Media Master Express 4: Video Software
    • GrandVJ 2.0: Video Software
  • Cables:
    • Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)
    • MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)
    • NEUTRIK powerCON Link Cables
    • NEUTRIK powerCON Main Power Cables
