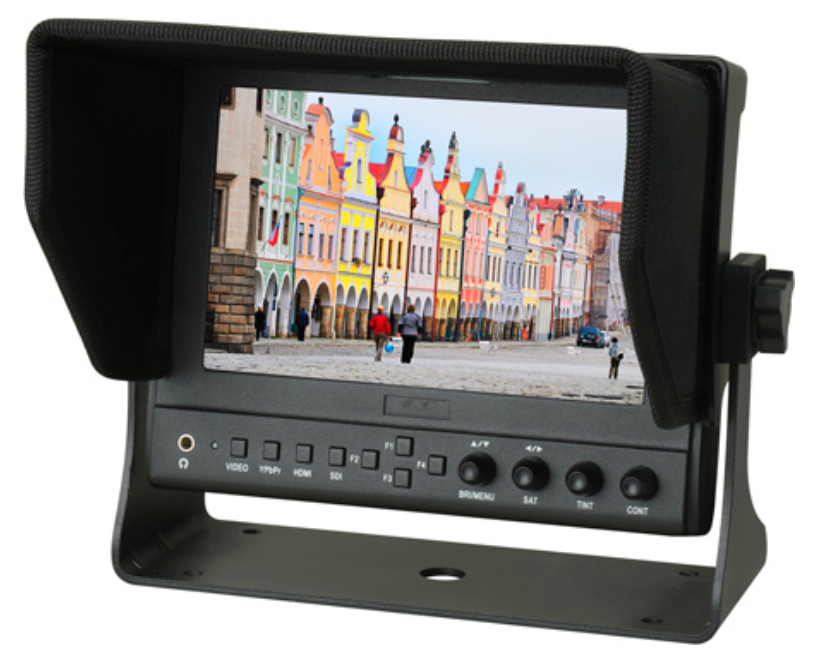

Delvcam DELV-WFORM-7 7" On-Camera HDMI Monitor With Video Waveform Image 1
Delvcam DELV-WFORM-7 7" On-Camera HDMI Monitor With Video Waveform Image 2
Delvcam DELV-WFORM-7 7" On-Camera HDMI Monitor With Video Waveform Image 3
Delvcam DELV-WFORM-7 7" On-Camera HDMI Monitor With Video Waveform
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Delvcam DELV-WFORM-7 is a 7 inch, 16:9, metal framed LED field monitor providing high levels of image accuracy and functionality with HDMI, YPbPr (via BNC), Composite video, and advanced camera auxiliary image controls. Users can also customize the 4 programmable function buttons for shortcut operation. The compact size and peaking functionality are the perfect complements to your DSLR camera's features. The smart screen sunshade acts as a screen protector when folded and saves space in the camera bag.

Most DSLRs only have one HDMI video output, so you need to buy expensive and cumbersome HDMI splitters to connect more than one monitor to the camera. The DELV-WFORM-7 includes an HDMI-output feature which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

The DELV-WFORM-7 monitor provides even more innovations with its super-high contrast LCD. The 800:1 contrast ratio produces colors that are rich and vivid. With a 178 degrees viewing angle, vertically and horizontally, you see the same vivid picture from wherever you are standing.

Delvcam DELV-WFORM-7 Includes:

  • Sunshade
  • Gimbal Bracket
  • Cables: HDMI, Power & Tally
  • Shoe Mount
  • 12VDC Power Adapter
  • Battery Plates: LPE6, F970

Delvcam DELV-WFORM-7 Features:

  • Color/RGB histogram, waveform, vector scope
  • Audio level meter
  • IPS panel 178° wide viewing angles
  • High contrast: 800:1
  • Metal housing
  • TALLY interface with indicating light
  • POP-UP shortcut menu

Delvcam DELV-WFORM-7 Specifications:

  • Display:
    • Panel 7" IPS
    • Physical Resolution 1280x800, support up to 1920x1080
    • Aspect Ratio 16:9
    • Brightness 400cd/m2
    • Contrast 800:1
    • Viewing Angle 178°/178°(H/V)
  • Input:
    • HDMI 1
    • YPbPr 3(BNC)
    • VIDEO 1
    • AUDIO 2(L/R)
  • Output: HDMI 1
  • Audio:
    • Speaker 1 built-in
    • Ear Phone Slot 1
  • Power:
    • Current 900mA
    • Input Voltage: DC 7-24V(XLR)
    • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
    • V-mount / Anton Bauer mount /
    • Power Consumption =11W
  • Environment:
    • Operating Temperature: -4°F~140°F (-20°C~60°C)
  • Dimensions:
    • Dimension (LxWxD): 7.54 x 5.98 x 1.22 inch
    • Weight:
    • 1.68 lbs / 2.07 lbs with cover
    • 4.77 lbs with case
