Octasound TX32A 32 Watt 70 Volt Transformer

OUR PART #: TX32A MFR #: TX32A

Copied to clipboard

The Octasound TX32A is a 70V 32 Watt transformer. ...Read more

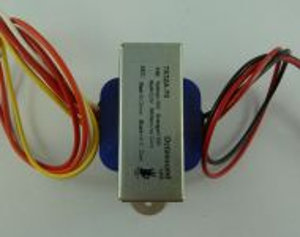

Octasound TX32A 32 Watt 70 Volt Transformer Image 1
Octasound TX32A 32 Watt 70 Volt Transformer
Our Price: $89.06
List Price: $116.00
You save 23%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 14-17 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Octasound TX32A is a 70V 32 Watt transformer. The Octasound TX32A-70 audio distribution transformers are designed for the speaker side of a voltage speaker distribution system.

Octasound TX32A Features:

  • Continuous Use Design: Each unit is designed to operate continuously
  • Primary (Input): The input is designed for a 70V speaker distribution line. 25V, 100V and 140V models available upon request.
  • Secondary (Output): The output is designed for a 8 Ohms speaker.
  • Magnet Wire: All units are wound with the finest virgin copper magnet wire. All windings use heavy insulated wire to provide excellent manufacturing yield, lower customer cost and superior life.
  • The Core: Octasound transformers use the finest M6 line grain oriented steel cores. Each unit is hand stacked to assure at least 92% stack.
  • Termination:
    • 15 inch Wire leads
    • Primary: Red - 80 Ohms, Black - V.C. Common
    • Secondary: Yellow - 32 Watts, Orange - 16 Watts, Red - 8 Watts, White - Line Common
  • Mounting: This unit comes with zinc plated channel/frame for mounting withthe use of two screws.

Octasound TX32A Specifications:

  • Wattage: 32W
  • Primary: 70V
  • Secondary: 8 Ohms
  • Frequency Response: 40~20K Hz.,
  • THD+Noise: < 0.1% @ 1K Hz.
  • Insertion Loss: 1 dB
  • Bobbin Material: Glass Filled Nylon 6/6
  • Flamability Rating: Class B 130°C
  • Core Material: M6 29 ga. line grain oriented steel
  • Termination: 15" Wire Leads
  • Mounting: Zinc plated steel channel/frame
  • Weight: 1.2 lbs.
  • Compliance: RoHS and REACH
