Product Overview
Pro-grade, rack-mountable digital wireless in an easily expandable system.

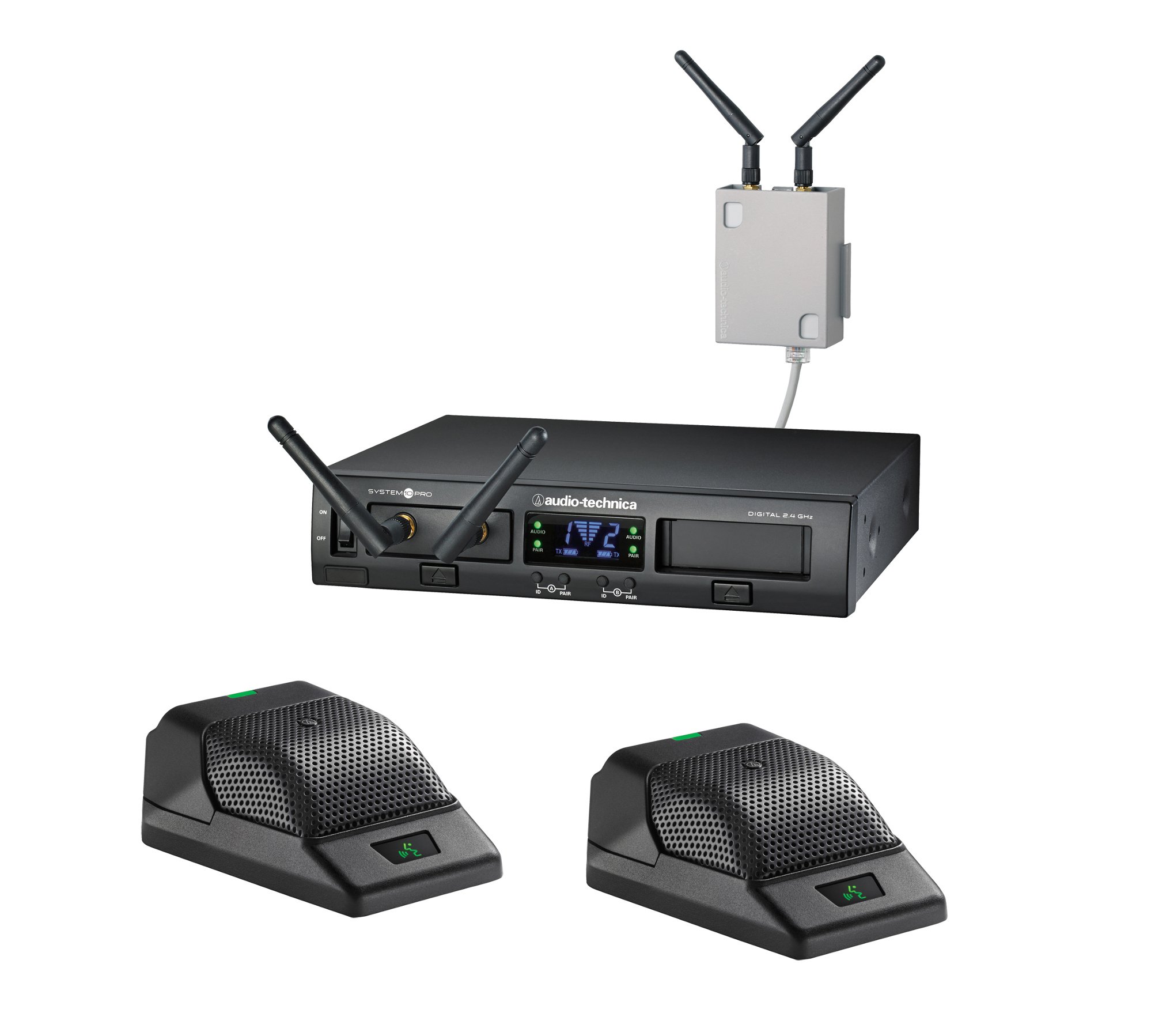

Part of their System 10 PRO Digital Wireless lineup, Audio-Technica's ATW-1366 is a package that consists of the ATW-RC13 rack-mount dual-receiver chassis, (2) ATW-RU13 receiver units, and (2) ATW-T1006 desk stand cardioid condenser boundary microphones/transmitters.
System 10 PRO Rack-Mount
Providing the same interference-free operation in the 2.4GHz range (outside the TV bands) as the original System 10 wireless system, the System 10 PRO Rack-Mount system further expands upon the original's features and versatility. Among those features is a durable half-rack chassis equipped to house 2 receiver units that can be operated locally -or- released from the chassis and mounted in a remote location (up to 328 feet away) via Ethernet cable. Up to 5 chassis (10 receiver units) can be linked using the RJ-12 cable included with each system, creating a stable, multichannel system with simultaneous use of up to 10 channels (additional chassis and receiver units sold separately).
Like all System 10 wireless products, the PRO Rack-Mount includes quality features like 24-bit operation, easy setup, clear and natural sound quality, and 3 levels of diversity assurance – Frequency/Time/Space:
- Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication
- Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference
- Space Diversity uses 2 antennas on each transmitter and receiver unit to maximize signal integrity
Includes
- ATW-RC13 rack-mount dual-receiver chassis
- (2) ATW-RU13 receiver units
- (2) ATW-T1006 desk stand cardioid condenser boundary mic/transmitters
System 10 PRO Features
- Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4GHz range – completely free from TV interference
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to 5 chassis (10 receiver units) can be linked and used simultaneously (Note: additional receivers sold separately)
- Each receiver unit can be paired with up to 10 transmitters (Note: additional transmitters sold separately), allowing users to instantly switch between different transmitter configurations
- Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Automatic frequency selection for seamless, interference-free operation
- Extremely easy operation with instantaneous channel selection, sync, and setup
- (3) levels of diversity assurance: frequency, time and space
- Ground-lift switch helps eliminate audible hum caused by ground loops
ATW-T1006 Features
- Cardioid condenser boundary microphone/transmitter pairs with any System 10 or System 10 PRO digital wireless receiver
- Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
- Operates in the 2.4GHz range – completely free from TV interference
- User switch can be set to toggle between talk and mute modes, or function as a press-to-talk or press-to-mute button
- Gain Control switch allows selection of three input gain levels: -6dB (for loudest voices), 0dB and +6dB (for softest voices)
- (2) red/green LEDs – one visible from the front of the unit, the other from the rear – indicate toggle/talk/mute mode, battery level, and charging status
- Switchable low-cut filter
Specifications
- Overall System:
- Operating Frequencies: 2.4GHz ISM band (2400 - 2483.5MHz)
- Dynamic Range: > 109dB (A-weighted), typical
- Total Harmonic Distortion: < 0.05%, typical
- Operating Range: 200ft (60m) Open range environment with no interfering signals
- Operating Temperature Range: 32°F to 104°F (0°C to +40°C) Battery performance may be reduced at very low temperatures
- Frequency Response: 20Hz - 20kHz, depending upon microphone type
- ATW-RC13 Receivers:
- Receiving System: Diversity (frequency/time/space)
- Output Connectors:
- Remote Receiver Connector: RJ-45
- Link Connector: RJ-12
- Maximum Output Level: XLR, balanced: 0dBV ¼" (6.3mm), unbalanced: +6dBV
- Power Supply: 100 - 240VAC (50 / 60Hz) to 12VDC, 0.5A, power supply switched mode external
- Dimensions (W x H x D): 8.26" x 1.73" x 6.67" (209.8 x 44 x 169.3mm)
- Net Weight: 33.2oz. (940g)
- ATW-T1006 Desktop Boundary Microphone Transmitters:
- Maximum Input Sound Level: 139dB SPL
- RF Power Output: 10mW
- Spurious Emissions: Following federal and national regulations
- Power Supply: 100-240VAC (50 / 60Hz) to 5VDC, 0.5A, switched mode external USB-type power supply
- Internal Battery: 3.7V Rechargeable Li-ion Battery
- Battery Rating: 5.5Wh, 1,460mAh
- Battery Life: 9 hours, depending upon environmental conditions
- Battery Charging Time: 4 hours, 30 minutes, depending upon environmental conditions — an empty battery will recharge 90% in 2 hours.
- Dimensions (W x H x D): 3.78'' x 1.50'' x 4.83'' (96.1 × 38.0 × 122.8mm)
- Net Weight: 14.4oz. (408g)
