Product Overview

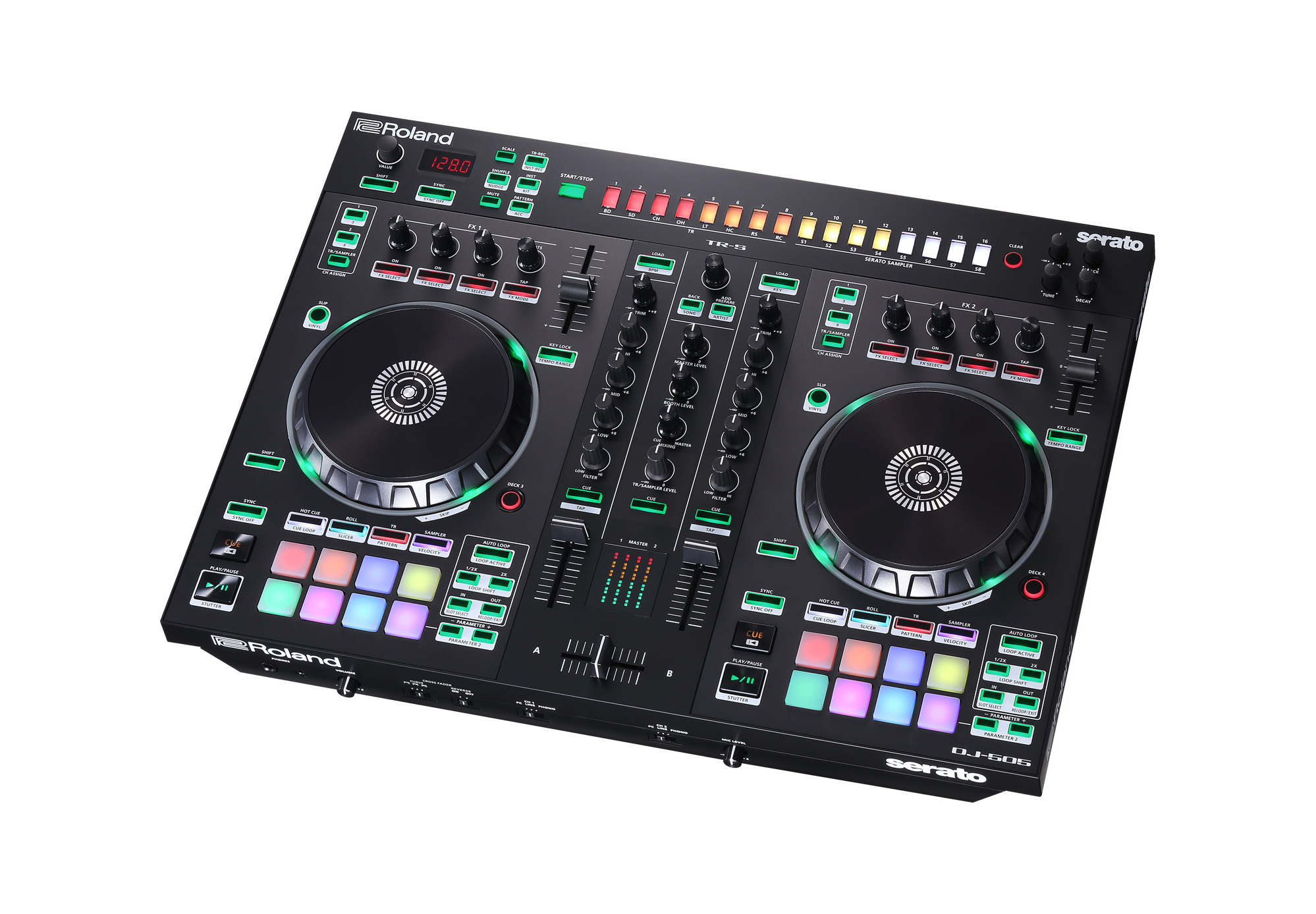

A 2-channel, 4-deck Serato DJ controller, Roland's DJ-505 combines the advanced performance capabilities of Serato DJ with the legendary sounds and sequencing of Roland's TR-808, TR-909, TR-606*, and TR-707* drum machines. It offers you the tools to move beyond mixing music to creating beats and rhythms on the fly that sync to your Serato DJ tracks, enabling the creation of unique transitions, live remixes, beefed-up classic tracks, or your own original music.
Like the flagship DJ-808 and compact DJ-202 controllers (both sold separately), the DJ-505 is a powerful and inspiring instrument that provides unrivaled flexibility to DJ, remix, and produce, empowering exciting new approaches to music performance. Plus, with its standalone mixer functionality, narrow footprint, and Serato DVS upgrade path, it's an ideal controller to pair with turntables or CD players.
Roland DJ-505 Features:
- (2) channels and Deck Select for up to 4 decks
- Large, low-latency platters optimized for scratching
- (8) dedicated pad controls for Serato DJ with Hot Cue, Roll, Slicer, TR, Pattern, and Sampler modes
- Built-in, fully editable drum kits from Roland’s legendary TR-808, TR-909, TR-606*, and TR-707*, realized with advanced ACB (Analog Circuit Behavior) technology
- TR kits contain 8 sounds–Bass Drum, Snare Drum, Closed Hat, Open Hat, Tom, Rim, Clap, and Ride–that can be played on the performance pads and triggered from the sequencer
- Shape TR drum sounds and Serato samples in real time with Level, Attack, Decay, and Tune knobs
- Classic 16-step sequencer that can trigger either TR drum sounds or the Serato Sampler; new features include nudge (TR-S), step-roll, and instrument/sample mute
- Unlocks Serato DJ and comes with a Serato Tool Kit license (includes Serato Pitch ‘n Time DJ, Serato Flip, and all Serato DJ FX packs)
- Mixer can be used standalone via connection of multi-players or turntables to the line and phono inputs; Serato DVS Upgrade Ready
- Balanced XLR outputs let you connect to a professional PA system; Booth Out plus separate 1/4" and 1/8" Phones outputs allow you to monitor your mixes
- Mic input with gate, hi-pass, reverb, and echo FX
- MIDI output to sync external devices with Serato DJ and the TR-S sequencer
- *NOTE: TR-606 and TR-707 sounds will be added in a future user-installable firmware update. Please contact your Sales Pro for more details.
Roland DJ-505 Specifications:
- Signal processing: Sampling Frequency: 48 kHz
- Nominal input level:
- INPUT (1–4) (RCA phono type, LINE): -12 dBu
- INPUT (1, 2) (RCA phono type, PHONO): -39 dBu
- MIC IN (¼" phone type): -60 dBu
- Nominal output level:
- MASTER OUT 1: +6 dBu (balanced)
- MASTER OUT 2: +0 dBu
- BOOTH OUT: +6 dBu (balanced)
- Input impedance:
- INPUT (1–4) (RCA phono type): 47 k ohms or greater
- MIC IN (Combo type): 7 k ohms or greater
- Output impedance:
- MASTER OUT 1: 600 Ohms (balanced)
- MASTER OUT 2: 1 kOhm (unbalanced)
- BOOTH OUT: 600 Ohms (balanced)
- PHONES: 44 Ohms
- Frequency response: 48.0 kHz: 20 Hz – 22 kHz (+0/-2 dB)
- Connectors:
- INPUT (1–2) jacks: RCA phono type
- MIC IN jack: ¼" phone type
- MASTER OUT 1 connectors: XLR type (balanced)
- MASTER OUT 2 jacks: RCA phono type
- BOOTH OUT jacks: TRS phone type (balanced)
- PHONES jacks: stereo ¼" phone type, miniature phone type
- PC port: USB type B
- MIDI OUT connector
- DC IN jack
- PHONO GROUND terminal
- Power supply: AC adapter
- Current draw: 2,000 mA
- Included accessories:
- Startup Guide
- Leaflet: "USING THE UNIT SAFTY"
- AC Adapter
- Power code
- USB cable
- Serato TOOL KIT VOUCHER
- Physical:
- Dimensions (W x D x H): 20-7/8" x 15-7/8" x 2-7/8" (530 x 402 x 73mm)
- Weight: 7 lbs., 12 oz. (3.5 kg)
- *NOTE: 0 dBu = 0.775 Vrms
