TechLogix Networx TL-SMG-VGA
Share-Me VGA & Control Table Insert

OUR PART #:  TL-SMG-VGA

The TechLogix Networx TL-SMG-VGA Share-Me™ VGA table grommet provide connectivity for sources such as laptops and tablets...
Learn More
Our Price: $79.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

TechLogix Networx TL-SMG-VGA
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

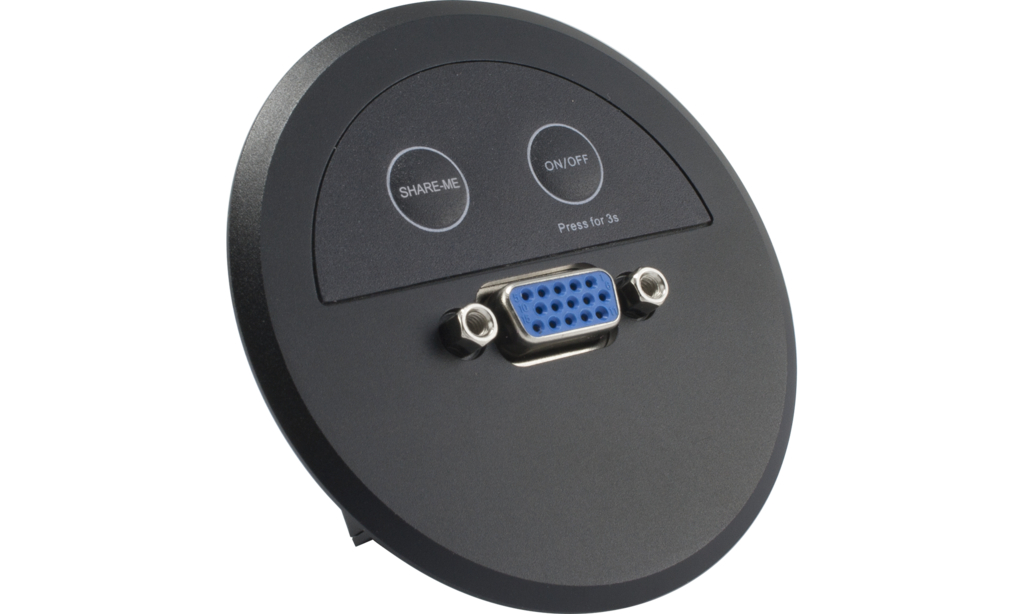

The TechLogix Networx TL-SMG-VGA Share-Me™ VGA table grommet provide connectivity for sources such as laptops and tablets, as well as display on/off and source selection control that is simple enough for any user to understand with virtually no training.

Simply put, an entire meeting can be run with only two buttons: an "on/off" button which turns the switcher and the display on or off, and a "show-me" button which switches the active input channel to the table insert on which the button was pressed.

The system also features automatic switching for sources that are not connected to the table inserts, such as media players, fixed PCs, or document cameras. When a source is connected and/or powered on, the system will recognize the input and automatically switch to that channel.

The TechLogix SM Series is also designed for an extremely quick installation. Simply mount the switcher under the podium or conference room table, mount the table inserts in pre-cut holes sized from 36mm through 60mm, and connect the table inserts to the switcher using standard AV cables (HDMI, DisplayPort, or VGA) and a 3.5mm cable. All power and control commands are sent from the table inserts to the switcher via the 3.5mm cable, and all display on/off commands are sent from the switcher to the display via CEC over an HDMI cable.

TechLogix Networx TL-SMG-VGA Features:

  • VGA input on table top
  • VGA and 3.5mm control outputs on bottom
  • Buttons for display on/off and switching
  • Fits 2.25” (57mm) table grommet hole
  • Fully powered through 3.5mm control cable
  • Mounts securely to the table

TechLogix Networx TL-SMG-VGA Specifications:

  • Compatible Switchers:
    • TL-SM3X1-HD
    • TL-SM3X1-HDV
  • Compatible Control Cables:
    • TL-SMC-001
    • TL-SMC-002
    • TL-SMC-003
    • TL-SMC-006
    • TL-SMC-010
  • Warranty: 3 years
