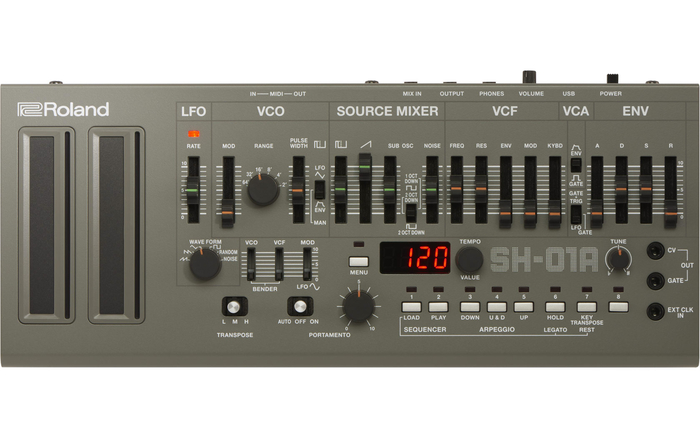

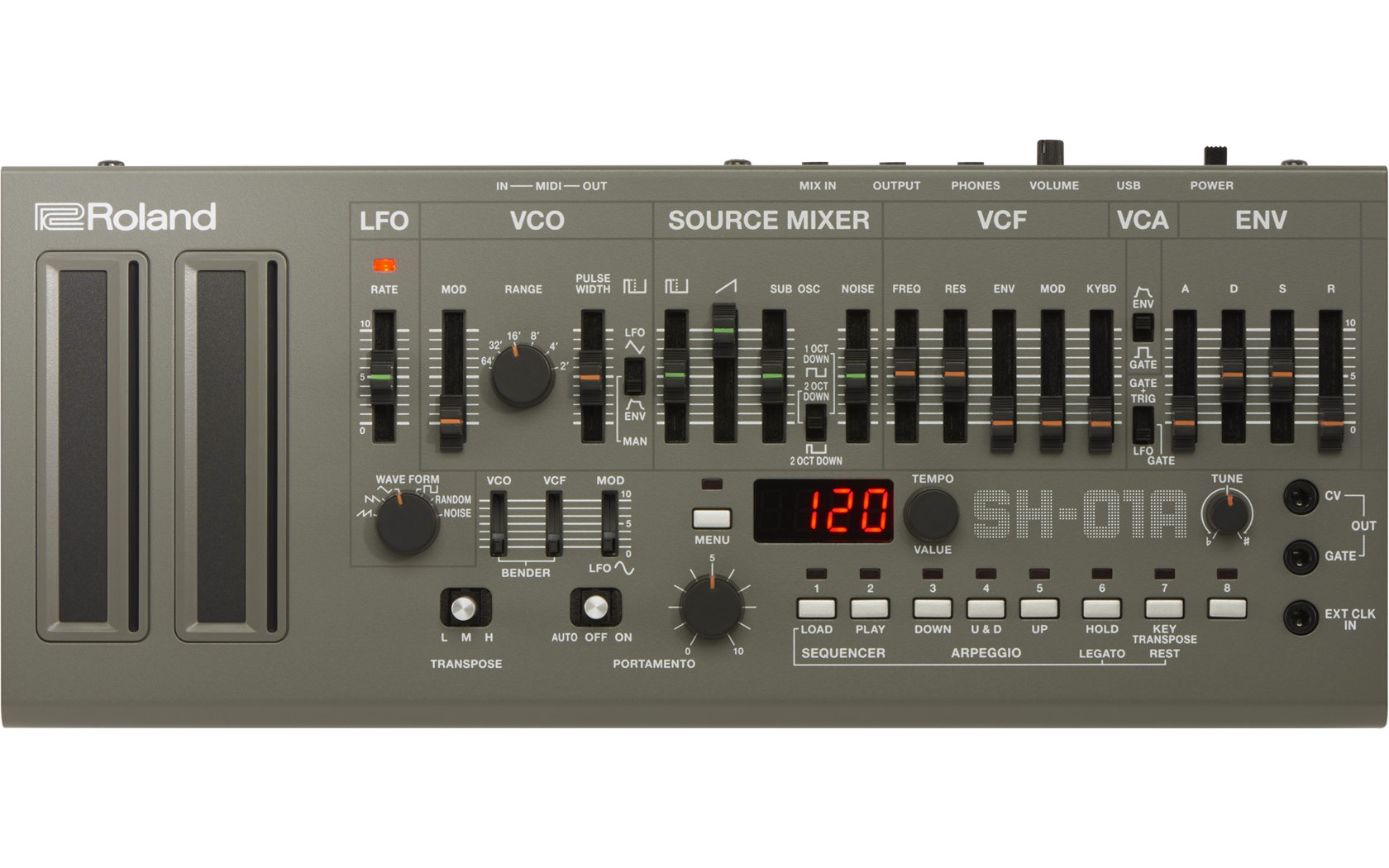

Roland SH-01A
Boutique Synthesizer

OUR PART #:  SH-01A

The SH-01A reproduces the sound of the iconic Roland SH-101 synthesizer.
Learn More
Our Price: $349.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Roland SH-01A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The SH-01A reproduces the sound of the iconic Roland SH-101 synthesizer. Analog Circuit Behavior technology successfully reproduces the SH-101's sound while adding new features of its own. New Unison, Chord, and four-voice Polyphonic modes expand on the sound palette of the original, and the built-in sequencer is equipped with 64 patterns to save and recall.

Roland SH-01A Features:

  • Sounds of the classic SH-101 synthesizer via ACB tech, including bass, lead, noise, and sound effects
  • New Unison, Chord, and four-voice Polyphonic modes expand on the original’s iconic sound palette
  • Built-in sequencer with 64 patterns available to save and recall
  • Easy performance arpeggiator with three playback modes, note hold, and three-way transpose switch
  • CV/Gate output for controlling modular or vintage gear
  • Multiple sync options including internal and external MIDI, MIDI via USB, LFO clock, and trigger input
  • 64 writeable preset patches for increased performance capabilities
  • Selectable advanced LFO with new waveforms and extended range of clock rate
  • Sends and receives MIDI control change messages via traditional MIDI jacks or USB
  • High-quality construction with metal front panel
  • Highly portable for mobile music making
  • Battery-operated (4 x AA) or USB powered
  • Compatible with the K-25m Keyboard Unit and other optional Roland Boutique accessories
  • Available in limited-edition red and blue colors like the original SH-101

Roland SH-01A Specifications:

  • Sound Generator Section
    • Maximum Polyphony: 4 voices
    • Assign Mode: MONO/UNISON/POLY/CHORD
  • User Memory
    • Sound Patch: 64
    • Sequencer Pattern: 64
  • Controllers
    • VOLUME knob
    • Ribbon controllers C1, C2
    • LFO section:
      • RATE indicator and slider
      • WAVE FORM select knob
    • VCO section:
      • MOD depth slider
      • RANGE select knob
      • PULSE WIDTH slider
      • LFO/MAN/ENV select switch
    • SOURCE MIXER section:
      • PULSE level slider
      • SAW level slider
      • SUB OSC level slider
      • SUB OSC select slider
      • NOISE level slider
    • VCF section:
      • FREQ: cutoff frequency slider
      • RES: resonance slider
      • ENV: envelope depth slider
      • MOD: modulation depth slider
      • KYBD: key follow slider
    • VCA section:
      • ENV/GATE select switch
      • ENV section:
      • GATE+TRIG/GATE/LFO select switch
      • A: attack time slider
      • D: decay time slider
      • S: sustain level slider
      • R: release time slider
    • Controller section:
      • TRANSPOSE switch (L/M/H)
      • VCO BENDER sens slider
      • VCF BENDER sens slider
      • LFO MOD slider
      • PORTAMENTO select switch (AUTO/OFF/ON)
      • PORTAMENTO time knob
      • MENU switch and indicator
    • SEQUENCER/ARPEGGIO section:
      • 1/LOAD switch and indicator
      • 2/PLAY switch and indicator
      • 3/DOWN switch and indicator
      • 4/U&D switch and indicator
      • 5/UP switch and indicator
      • 6/HOLD switch and indicator
      • 7/KEY TRANSPOSE switch and indicator
      • 8 switch and indicator
  • Connectors
    • CV OUT jack: mono miniature phone type
    • GATE OUT jack: mono miniature phone type
    • EXT CLK IN jack: mono miniature phone type
    • PHONES jack: stereo miniature phone type
    • OUTPUT jack: stereo miniature phone type
    • MIX IN jack: stereo miniature phone type
    • MIDI (IN, OUT) connectors
    • USB port: Micro-B type (Audio, MIDI)
  • Power Supply
    • Rechargeable Ni-MH battery (AA, HR6) x 4
    • Alkaline battery (AA, LR6) x 4
    • USB bus power
