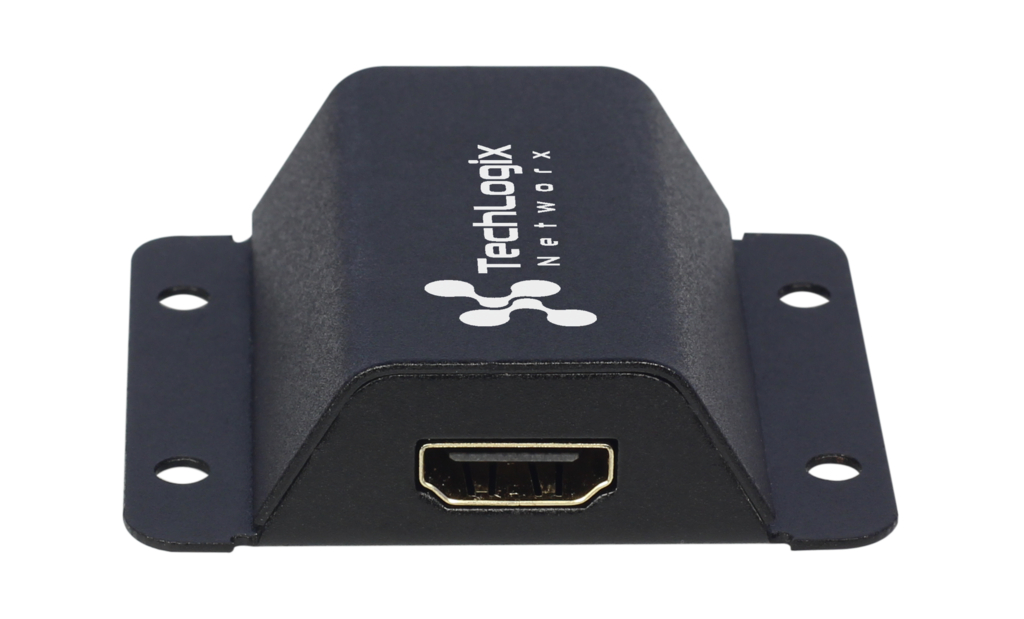

TechLogix Networx TL-CPT-HD01
HDMI Under-Table Pass-Through Port

OUR PART #:  TL-CPT-HD01

Tired of cables scattered across your conference room table? How about untangling knots when all you want to do is connect your laptop? Meet TechLogix Networx TL-CPT-HD01.
Learn More
Our Price: $49.99
Write the first review.
TechLogix Networx TL-CPT-HD01
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tired of cables scattered across your conference room table? How about untangling knots when all you want to do is connect your laptop? Meet TechLogix Networx TL-CPT-HD01.

This compact device provides a clean, low-profile connection point for tables, podiums, desks, racks and credenzas. Simply mount it to the underside of a flat surface and connect one end to your destination device using an HDMI cable. Your classroom or meeting room is now ready for plug-and-play connectivity.

TechLogix Networx TL-CPT-HD01 Features:

  • Mounts under tables, podiums or other surfaces
  • Ideal connection point for devices
  • Female HDMI input
  • Female HDMI output
  • Pass-through signal design
  • 4K@30 compliant
  • HDCP 2.2 compliant
  • Hot-plug compliant
  • HDMI 2.0 compliant
  • Powered through the HDMI connection

TechLogix Networx TL-CPT-HD01 Specifications:

  • Technical:
    • Input: 1 x HDMI IN
    • Input Signal: Type HDMI 2.0
    • Input Resolution Support:
      • VESA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz
      •  SMPTE: 720x480@60Hz, 720x576@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 3840x2160@60Hz, 4096x2160@60Hz
    • Input Video Level: 0.5-1.0 V p-p
    • Maximum Pixel Clock: 600MHz
    • Output Signal Type: HDMI 2.0
    • Output: 1 x HDMI OUT
    • Output Resolution Support:
      • VESA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz,1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz
      • SMPTE: 720x480@60Hz, 720x576@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 3840x2160@60Hz, 4096x2160@60Hz
    • Video Impedance: 100 O
    • Audio Input: Stereo, Dolby digital, Dolby trueHD, DTS digital, DTS master Dolby Atmos,DTS-X
    • Audio Output: Stereo, Dolby digital, Dolby trueHD, DTS digital, DTS master Dolby Atmos,DTS-X
  • General:
    • Operating Temperature: 32°F to 113°F (0°C to 45°C)
    • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
    • Humidity: 10% to 90%, non-condensing
    • ESD Protection:
      • Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge)
    • Surge Protection: Voltage: ±1 kV (Ten times respectively for the positive and negative voltage)
    • Electrical Fast Transient/Burst:
      • Data communication cord: 1 kV
      • Power cord : 2 kV
    • Device Dimensions (WxHxD): 2.37" x 0.66" x 2.13" (60 x 16.59 x 54mm)
    • Product Weight: 0.06kg
    • Certification: CE, FCC, RoHS
