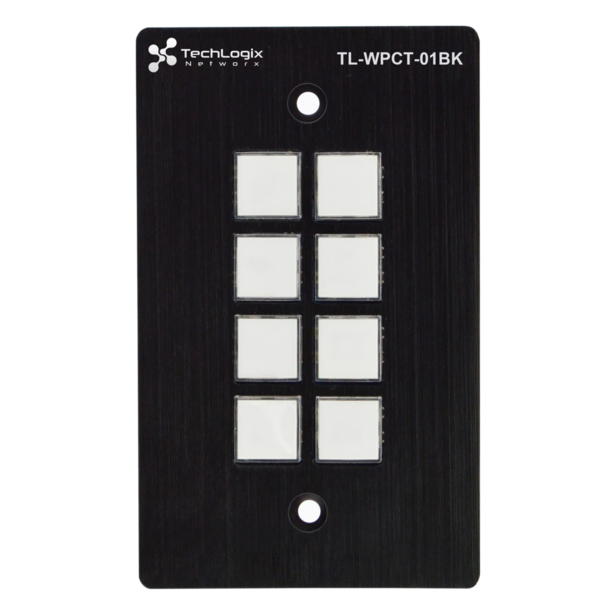

TechLogix Networx TL-WPCT-01BK
Wallplate Controller

OUR PART #:  TL-WPCT-01BK

The TechLogix Networx TL-WPCT-01BK wallplate controller is an intuitive remote pairs a powerful and flexible engine with a durable...
Learn More
Our Price: $474.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-WPCT-01BK
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TechLogix Networx TL-WPCT-01BK wallplate controller is an intuitive remote pairs a powerful and flexible engine with a durable, easy-to-use design that’s ideal for education, hospitality and corporate environments, as well as any other application that requires strength and simplicity in the control interface.

The TL-WPCT-01BK is easily installed and programmed, making it an ideal controller for any device that accepts RS232, IR, or relay remote control commands. Plus, included button overlays for popular devices allow for quick customization, ensuring all users know exactly what they are controlling.

When you install a TL-WPCT-01BK, you install stability, durability and a controller that users are sure to find welcoming to use.

TechLogix Networx TL-WPCT-01BK Includes:

  • Power adapter (US, UK, EU, AUS)
  • Pluggable terminal blocks x 5 ([2] 5-pin, [3] 2-pin)
  • IR emitter [3]
  • Button caps [8]
  • Button labels
  • USB programming cable

TechLogix Networx TL-WPCT-01BK Features:

  • Single gang wallplate
  • Mounts to a standard US-sized single gang box or mounting bracket
  • May be wall or table-top mounted
  • Eight backlit buttons with adjustable lighting settings
  • Customizable buttons with built-in underlays
  • Progammable via RS232, mini USB, or web-based software
  • Outputs control commands in RS232, RS485, IR and relay
  • Control ports include: three RS232 ports, one RS485 port, three IR ports, and two relay ports
  • Built-in IR learning
  • Multiple controller looping for up to 99 units
  • Firmware upgradeable via built-in mini USB port
  • Anti-static chassis design

TechLogix Networx TL-WPCT-01BK Specifications:

  • I/O Connections:
    • RELAY port: Two (2) 2-pin pluggable terminal block
    • RS485 port: One (1) 2-pin pluggable terminal block
    • RS232 port: Three (3) 3-pin pluggable terminal block
    • IR port: Three (3) 2-pin pluggable terminal block
    • Button: Eight (8) white buttons in total
    • Power: One (1) 2-pin pluggable terminal block
  • Chassis and Environmental:
    • Enclosure: Painted aluminum
    • Dimensions (WxHxD): 2.5" x 4.5" x 0.99" (69.85 x 114.3 x 25.2mm)
    • Shipping Weight: 1.83 lbs (0.83Kg)
    • Operating Temperature (Environment): +32° ~ +122°F (0° ~ +50°C)
    • Operating Humidity (Environment): 10% ~ 90% Non-condensing
    • Storage Temperature (Environment): +5° ~ +158°F (-15° ~ +70°C)
    • Storage Humidity (Environment): 10% ~ 90% Non-condensing
  • Power, ESD, Regulatory:
    • Power Supply: DC 12V at 1A
    • Regulatory: CE, FCC
  • Standard Warranty: 3 Year
