TechLogix Networx TL-SMKIT-02
Share-Me Kit: Switcher + (3) HDMI Control Inserts

OUR PART #:  TL-SMKIT-02

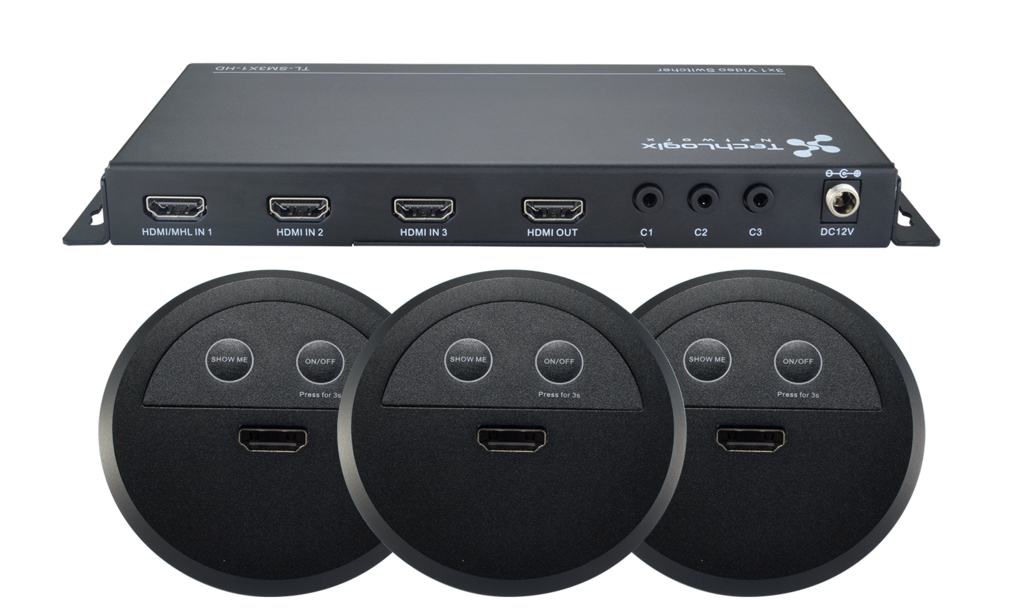

The TechLogix Networx TL-SMKIT-02 is a kit that combines the TL-SM3X1-HDV with (3) TL-SMG-HD grommets.
Learn More
Our Price: $499.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-SMKIT-02
Qty:
In Stock

Similar Products

The TechLogix Networx TL-SMKIT-02 is a kit that combines the TL-SM3X1-HDV with (3) TL-SMG-HD grommets.

TechLogix Share-Me™ Series presentation switchers redefine the usability, versatility and cost of huddle room, meeting room and classroom collaboration. When paired with the included table inserts, the Share-Me™ Series under-table mounted switcher provides both AV switching and display control for the cost of most 40" displays using innovative table insert controllers and a professional-grade switcher.

Three table inserts are included for HDMI source devices, providing connectivity for sources such as laptops and tablets, as well as display on/off and source selection control that is simple enough for any user to understand with virtually no training.

Simply put, an entire meeting can be run with only two buttons: an "on/off" button which turns the switcher and the display on or off, and a "share me" button which switches the active input channel to the table insert on which the button was pressed.

The system also features automatic switching for sources that are not connected to the table inserts, such as media players, fixed PCs, or document cameras. When a source is connected and/or powered on, the system will recognize the input and automatically switch to that channel.

The TechLogix Share-Me™ Series is also designed for an extremely quick installation. Simply mount the switcher under the podium or conference room table, mount the table inserts in pre-cut holes sized from 36mm through 60mm, and connect the table inserts to the switcher using standard HDMI cables and a 3.5mm cable. All power and control commands are sent from the table inserts to the switcher via the 3.5mm cable, and all display on/off commands are sent from the switcher to the display via CEC over an HDMI cable.

TechLogix Networx TL-SMKIT-02 Includes:

  • Switcher with three HDMI inputs and one HDMI output
  • Three HDMI control grommets
  • Three 2m (6') HDMI cables
  • Three 2m (6') SMC controller cables

TechLogix Networx TL-SMKIT-02 Features:

  • Manual or automatic switching modes
  • HDMI ports support DisplayPort and MHL
  • CEC display control
  • Under table mounting kit included
  • Quick connect ports for table insert integration

TechLogix Networx TL-SMKIT-02 Specifications:

  • Input/output:
    • Video Input:
      • 1 HDMI/MHL
      • 2 HDMI
    • Video Input Connector: 3 female HDMI
    • Input Video Signal: HDMI
    • Video Output: 1 HDMI
    • Video Output Connector: 1 female HDMI
    • Output Video Signal: HDMI
    • Output Resolution: HDMI output video support HDMI 1.4 & HDCP 1.4; maximum resolution of 4K@30
  • Control Part:
    • Control Port:
      • 3 Dry Contact (C1~C3)
      • 1 FIRMWARE
    • Control Connector:
      • 3 3.5mm mini jack
      • 1 Micro-USB
    • Control Buttons: HDMI 1, HDMI 2, HDMI 3, AUTO
  • General:
    • Temperature: 0 ~ +50°C
    • Humidity: 10% ~ 90%
    • Power Supply: DC12V 1A
    • Max Power Consumption: 2W
    • Dimension (WxHxD): 201.5 x 22.0 x 84.0mm
    • Weight: 246g
    • Compatible TechLogix Table Inserts:
      • TL-SMG-HD (HDMI)
      • TL-SMG-DP (DisplayPort)
    • Warranty: 3 years
