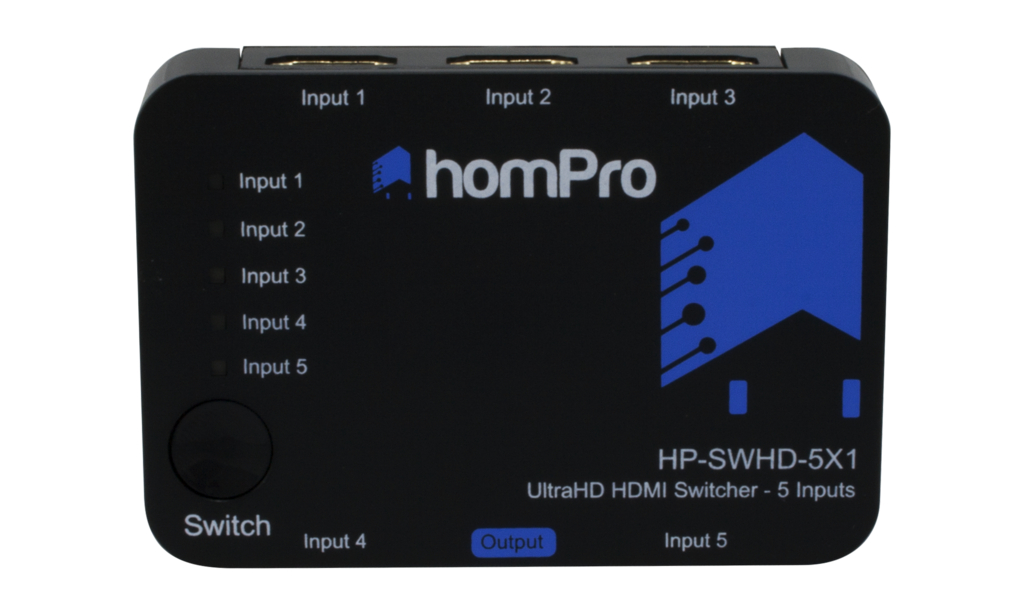

TechLogix Networx HP-SWHD-5X1
5x1 HDMI Switcher

OUR PART #:  HP-SWHD-5X1

The TechLogix Networx HP-SWHD-5X1 UltraHD 5-input HDMI switcher switches five HDMI sources to a single HDMI display.
Learn More
Our Price: $56.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx HP-SWHD-5X1
Qty:
In Stock

Similar Products

The TechLogix Networx HP-SWHD-5X1 UltraHD 5-input HDMI switcher switches five HDMI sources to a single HDMI display. Plus, a built-in autoswitching circuit makes the HP-SWHD-5X1 ideal for small conference rooms and classrooms.

For added versatility, the HP-SWHD-5X1 requires very minimal power, eliminating the need for a power supply in most applications and with most compatible products. It does include a USB power cable in the event that low power source or destination device is used.

TechLogix Networx HP-SWHD-5X1 Includes:

  • HDMI 1.4 3 by 1 or 5 by 1 Switcher
  • 5V USB to DC Power Supply cable
  • Remote control
  • IR Receive Extend cable
  • Operation Manual

TechLogix Networx HP-SWHD-5X1 Features:

  • Extremely compact design (3.4" x 2.3" x 0.7")
  • Extremely light (60 grams)
  • 5 HDMI inputs to 1 HDMI output
  • Switching via front panel or IR
  • Built-in autoswitching between sources
  • Supports resolutions up to 10G (4K@30)
  • HDCP 1.4 and EDID compliant
  • No power supply required
  • Includes an IR remote control
  • Supports multichannel audio, including Dolby TrueHD & DTS-HD MasterAudio 7.1

TechLogix Networx HP-SWHD-5X1 Specifications:

  • Frequency Bandwidth: 2.97 Gbps
  • Input Ports: 3 or 5 HDMI Female ports, IR Receiveport
  • Output port: 1 HDMI Female port
  • HDMI Audio Output: PCM2, 5.1, 7.1CH, Dolby 5.1,DTS5.1, Dolby TrueHD, DTS-HD
  • ESD Protection (Human Body Model):
    • ± 8kV (air-gap discharge)
    • ± 4kV (contact discharge)
  • Dimensions (DxWxH): 87 x 59.5 x 19 mm
  • Weight: 60g
  • Power Consumption: 0.2W
  • Operating Temperature: 32° ~ 104°F (0° ~ 40°C)
  • Storage Temperature: -4° - 140°F (-20° - 60°C)
  • Power Consumption: 0.5 watts (max)
