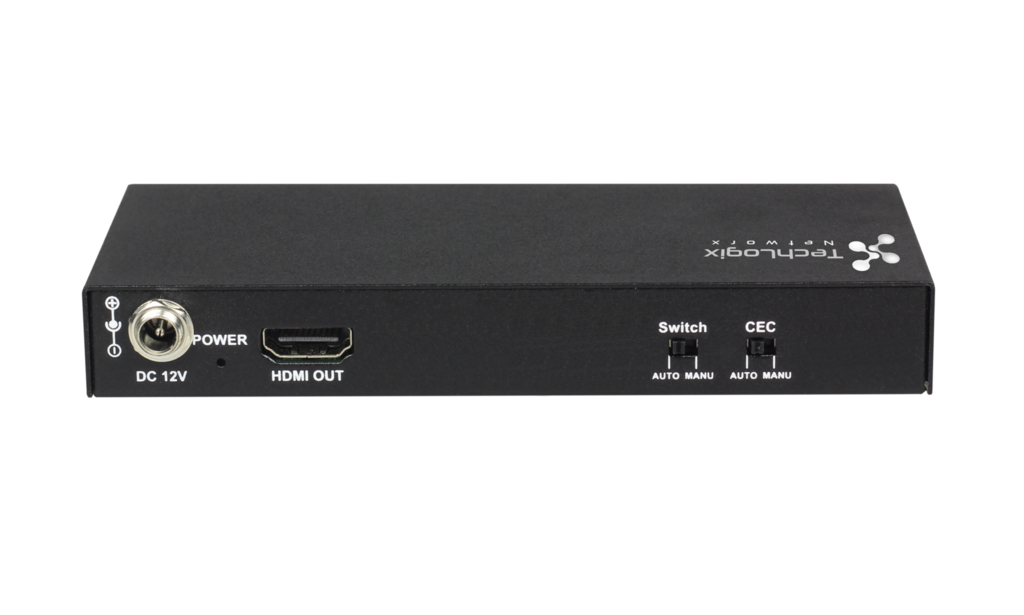

TechLogix Networx TL-2X1-HDV 2x1 HDMI and VGA Switcher

The TechLogix Networx TL-2X1-HDV 2x1 HDMI & VGA switcher automatically manages the connections of two unique users or two unique connections—no more passing cables, pushing buttons, and untangling knots. The switcher automatically “senses” when someone plugs in an HDMI or VGA cable and makes their device live to the display. It’s the latest and greatest in automatic switching technology.

TechLogix Networx TL-2X1-HDV Features:

• (1) HDMI input
• (1) VGA and 3.5mm stereo audio input
• (1) HDMI output
• Automatic switching with connection sensing
• 4K@60 4:2:0 support
• 1080p@60 support
• Built-in CEC controller for display control
• Manual switching via front panel buttons
• Manual display power on/off via front panel buttons
• Built-in ESD and surge protection

TechLogix Networx TL-2X1-HDV Specifications:

• Technical:
  • Input:
    • 2 x HDMI IN
    • 1 x VGA IN
  • Input Signal Type:
    • HDMI: HDMI1.4 with HDCP
    • VGA: VESA
  • Input Resolution Support:
    • HDMI: 4096x2160@24/25/30 Hz (60 Hz at 4:2:0), 3840x2160@24/25/30 Hz (60 Hz at 4:2:0), 1080P, 1080I, 720P, 576p, 576i, 480p, 480i
    • VGA: 1920x1200/1920x1080/1680x1050/1600x1200/1600x900/1400x1050/1440x900/1366x768/1280x1024/1280x800/1280x768/1280x720/1024x768/800x600/640x480@60Hz
  • Input EDID (HDMI): EDID from Display
  • Input EDID (VGA): 1920x1080@60 Hz
  • Input Video Level: 0.5-1.0 V p-p
  • Maximum Pixel Clock:
    • HDMI: 340MHz
    • VGA: 165MHz
  • Output: 1 x HDMI OUT
  • Output Signal Type: HDMI1.4 with HDCP
  • Output Resolution Support:
    • VESA (60 Hz): 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 960,
    • SMPTE: 720 x 480@60Hz, 720 x 576@50Hz, 1280 x 720@50/60Hz, 1920 x 1080@50/60Hz, 3840 x 2160@30Hz (60 Hz at 4:2:0)
  • Video Impedance: 100 O
• General:
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
  • Humidity: 10% to 90%, non-condensing
  • ESD Protection:
    • Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
  • Surge Protection:
    • Voltage: ± 1 kV (Ten times respectively for the positive and negative voltage)
  • Electrical Fast Transient/Burst:
    • Data communication cord: 1 kV
    • Power cord: 2 kV
  • Power Supply: DC 12 V/0.5 A
  • Power Consumption (Maximum): 1.5W
  • Device Dimension: (WxHxD): 5.54" x 2.53" x 0.70" (141.8 x 64.2 x 20mm)
  • Product Weight: 0.22kg
  • Certification: CE, FCC
