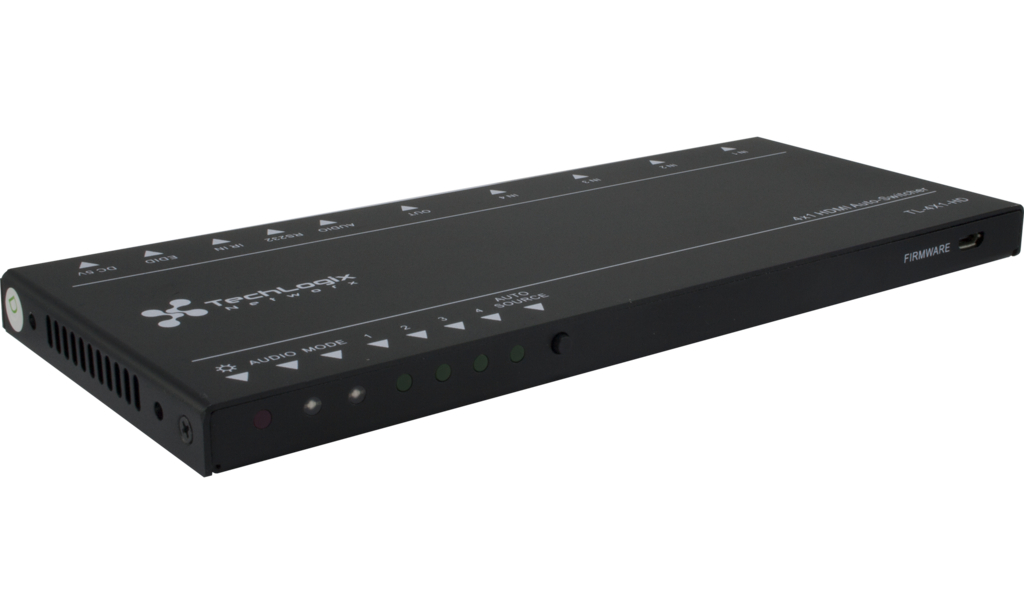

TechLogix Networx TL-4X1-HD
4K@30 4 x 1 HDMI Switcher

OUR PART #:  TL-4X1-HD

The TechLogix Networx TL-4X1-HD 4x1 HDMI switcher automatically manages the connections of up to four unique users—no more passing cables, pushing buttons, and untangling knots.
Learn More
Our Price: $199.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-4X1-HD
Qty:
In Stock

Similar Products

The TechLogix Networx TL-4X1-HD 4x1 HDMI switcher automatically manages the connections of up to four unique users—no more passing cables, pushing buttons, and untangling knots. Each user gets their own cable and the system automatically “senses” when someone plugs in and makes their device live to the display. It’s the latest and greatest in automatic switching technology.

Installation and use is easy: place the TL-4X1-HD on or under the conference room table, run up to four HDMI cables to the different points on the table, and connect your devices (typically laptops, tablets, and phones). HDMI cables don’t need to move and the TL-4X1-HD handles user signal switching and distribution. You can even connect secondary audio-video inputs, such as BluRay players, dedicated computers, and cable boxes.

TechLogix Networx TL-4X1-HD Includes:

  • Installation guide
  • Power adaptor
  • Mounting “L” brackets (2 ea)
  • Mounting screws (4 ea)
  • Plastic cushions (4 ea)
  • RS232 cable
  • IR remote
  • IR receiver

TechLogix Networx TL-4X1-HD Features:

  • (4) HDMI inputs
  • (1) HDMI output
  • 4K@30 support
  • 1080p@60 support
  • Automatic switching with connection sensing
  • Manual switching via IR, RS232 & front panel
  • Audio Return Channel (ARC)
  • Analog audio de-embedding

TechLogix Networx TL-4X1-HD Specifications:

  • I/O Connections:
    • HDMI Inputs: Four (4) HDMI type A receptacle
    • HDMI Output: One (1) HDMI type A receptacle
    • Ed-embedded Audio Output: One (1) 3.5mm TRS jack
    • IR Input: One (1) 3.5mm TRS jack
    • RS232 Control: One (1) 3-pin pluggable terminal block
    • EDID Data Selector: One (1) 4-pin solider switch
    • Source Select Button (Front Panel): One (1) button
    • DC 5V Power: One (1) 2.35 mm outside diameter, 0.7 mm inside diameter barrel (EIAJ-1)
    • Firmware Update: One (1) mini USB type B receptacle
  • Supported Video and Audio:
    • Resolutions:
      • HDMI: 480I, 480p, 576I, 576P, 720p, 1080I, 1080p, 4Kx2K@30Hz
      • DVI: 640x480@60Hz, 640x480@72Hz, 640x480@75Hz, 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1600x1200@60hz, 1920x108@60Hz, 1920x1200@60Hz
    • Video Compliance: HDMI, HDCP 1.4, DVI1.0
    • Bandwidth: 10.2 Gbps
    • Embedded Audio Compatibility: PCM, Dolby Digital, DTS, and DTS-HD
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 ~ 1.0 volts p-p
    • IR Carrier Frequency Range: 33-55KHz at 5V
  • Chassis and Environmental:
    • Enclosure: Painted aluminum
    • Dimensions (WxHxD): 6.00" x 0.47" x 2.77" (194 x 12 x 80.4mm)
    • Shipping Weight: 1.60 lbs (0.73 Kg)
    • Operating Temperature:
      • Environment: +14° ~ +104°F (-10° ~ +40°C)
      • Chassis: 113°F (45°C)
    • Humidity (Environment):
      • Operating: 10% ~ 90% Non-condensing
      • Storage: 10% ~ 90% Non-condensing
    • Storage Temperature (Environment): +5° ~ +167°F (-15° ~ +70°C)
  • Power, ESD, Regulatory:
    • Maximum Power Consumption: 4.2W
    • Power Supply: 5V at 1A
    • ESD Protection: 15KV
    • Regulatory: CE, FCC
  • Other:
    • Standard Warranty: 1 Year
    • Indicators: 1 Power, 1 Audio status, 1 switch mode, 4 Input status, 1 Output connection status
