Product Overview

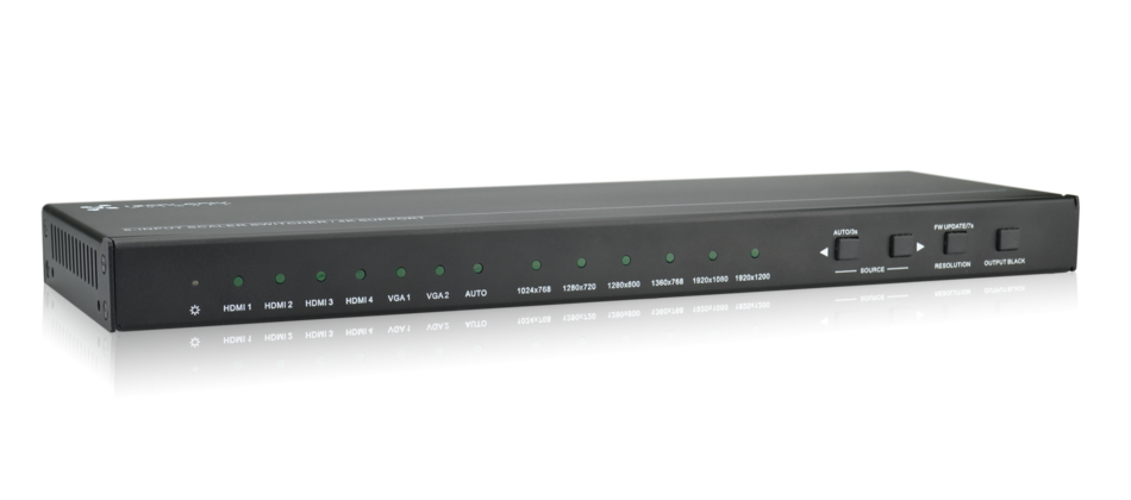

The TechLogix Networx TL-6X1-HDV is a 6x1 HDMI and VGA switcher that automatically manages the connections of up to six unique users—no more passing cables, pushing buttons, and untangling knots. Each user gets their own cable and the system automatically “senses” when someone plugs in and makes their device live to the display. Plus, HDMI and VGA dual connectivity ensure both new and old devices can connect to the system.
Installation and use is easy: place the TL-6X1-HDV on or under the conference room table, run up to four HDMI cables and two VGA cables to the different points on the table, and connect your devices (typically laptops, tablets, and phones). Cables don’t need to move and the TL-6X1-HDV handles user signal switching and distribution. You can even connect secondary audio-video inputs, such as BluRay players, dedicated computers, and cable boxes.
TechLogix Networx TL-6X1-HDV Includes:
- Installation guide
- Power adapter
- Mounting ears (2 ea)
- Mounting screws (8 ea)
- RS232 cable
- Rubber feet (4 ea)
- IR receiver
- IR remote
- 3-pin captive screw connectors (2 ea)
TechLogix Networx TL-6X1-HDV Features:
- (4) HDMI inputs
- (2) VGA inputs
- (1) HDMI output
- Scaling to WUXGA
- 4K@30 HDMI pass-through
- 1080p@60 support
- Automatic switching with connection sensing
- Manual switching via IR, RS232 & front panel
- Analog audio de-embedding
- Analog audio embedding on the VGA channel
TechLogix Networx TL-6X1-HDV Specifications:
- I/O Connections:
- HDMI Inputs: Four (4) Type A receptacle
- VGA Inputs: Two (2) HD-15 female receptacle
- Audio Inputs: Two (2) 3.5mm TRS jack
- HDMI Output: One (1) Type A receptacle
- Audio Outputs: One (1) 3-pin captive screw connector, One(1) 3.5mm TRS jack, One(1) optical jack
- IR Input: One(1) 3.5mm TRS jack
- RS232 Control: One (1) 3-pin captive screw connector
- Button Control (Front Panel): Four (4) buttons in total
- Firmware Update: One (1) Type A receptacle
- DC 5V Power: One (1) Power connector with locking screw (5.5mm outside diameter, 2.1mm inside diameter)
- Supported Video, Audio and Control:
- Maximum Video Compatibility: Deep color 48/36/30/24 Bit at 1080P,3D and 4Kx2K(UHD)
- VGA Scaling Resolution: 1920x1200@60Hz, 1920x1080@60Hz, 1360x768@60Hz, 1280x800@60Hz, 1280x720@60Hz, 1024x768@60Hz.
- HDMI EDID: Pass through from display, 1080P&PCM 2ch, 1080P&5.1ch, 1080P3d&5.1ch, 1080i&PCM 2ch, 4K&PCM 2ch
- VGA EDID: 1360x768
- Embedded Audio: Up to 8 channel, Dolby Digital TrueHD, and DTS-HD master audio
- Analog Audio Frequency Response: 20Hz~20K Hz
- Analog Audio Input Impedance: > 10KO
- Analog Audio Output Impedance: 50O
- Maximum Passive HDMI Distance: 15m (49ft)
- IR Carrier Frequency Range: 33-55KHz at 5V
- Chassis and Environmental:
- Enclosure: Painted aluminum
- Dimensions (WxHxD): 13.78" x 1.10" x 4.33" (350 x 28 x 110mm)
- Shipping Weight: 3.86 lbs (1.75 Kg)
- Operating Temperature:
- Environment: +32° ~ +104°F (0° ~ +40°C)
- Chassis: 113°F (45°C)
- Operating Humidity (Environment): 10% ~ 90% Non-condensing
- Storage Temperature (Environment): +5° ~ +158°F (-15° ~ +70°C)
- Storage Humidity (Environment): 10% ~ 90% Non-condensing
- Power, ESD, Regulatory:
- Maximum Power Consumption: 3.8W
- Power Supply: DC 5V at 3A
- ESD Protection: 15KV
- Regulatory: CE, FCC
- Other:
- Standard Warranty: 1 Year
- Indicator: 1 Power, 2 Source select, 6 resolution select
