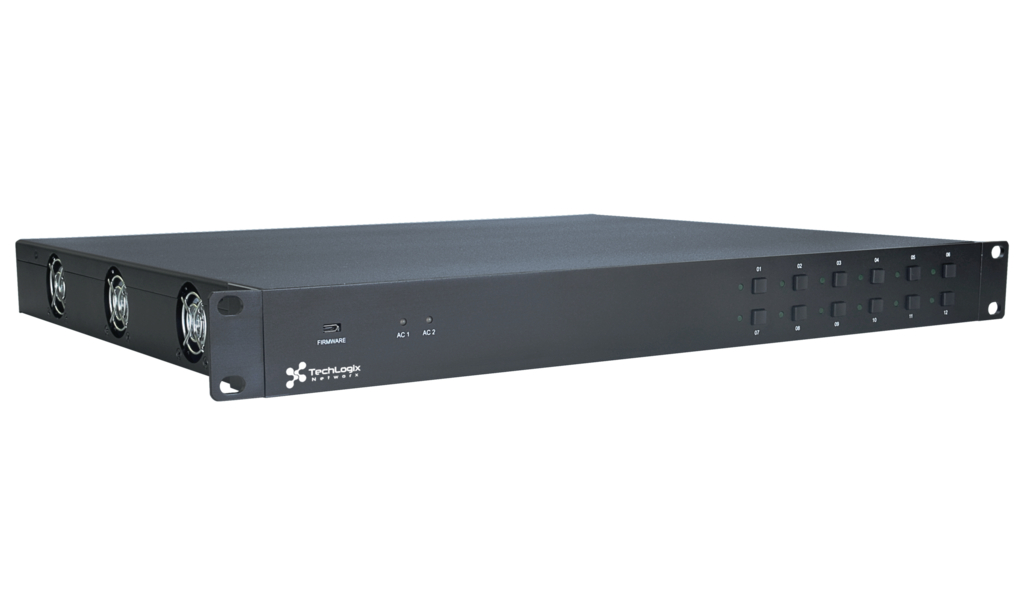

TechLogix Networx TL-RKPS-01
12 Port Rack-Mount Power Hub

OUR PART #:  TL-RKPS-01

The TechLogix Networx TL-RKPS-01 12 port rack-mount power hub eplaces up to twelve 5V, 12V and/or 24V power supplies with a single, easily mounted rack chassis.
Learn More
Our Price: $1,399.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

TechLogix Networx TL-RKPS-01
Qty:
In Stock

Similar Products

The TechLogix Networx TL-RKPS-01 12 port rack-mount power hub eplaces up to twelve 5V, 12V and/or 24V power supplies with a single, easily mounted rack chassis. Each channel is selectable, thereby accommodating various makes and models of equipment—everything from extenders to splitters to switchers. Plus, remote control allows individual channels to be cycled from any remote location, and 100ms startup sequencing ensures smooth power reboots. The TL-RKPS-01 is the ultimate tool for clean integrations and hassle-free maintenance.

TechLogix Networx TL-RKPS-01 Includes:

  • (1) power cable
  • (12) 2-pin phoenix connectors
  • (1) 3-pin phoenix connector
  • (1) RS232 cable (DB9 to 3-pin phoenix connector)
  • (2) DC cables

TechLogix Networx TL-RKPS-01 Features:

  • Provides power to 12 DC-powered devices
  • Each output channel is selectable between 5, 12 & 24VDC
  • Redundant power supplies ensure uninterrupted operation
  • Input channels rated for 100~240VAC
  • Maximum output power consumption of 15W per channel
  • 100ms sequencing per channel on startup
  • Remote channel on/off control via RS232, Ethernet or built-in webserver
  • Front panel control & keylock
  • Standard 1RU size
  • Includes mounting hardware
  • Firmware upgradeable

TechLogix Networx TL-RKPS-01 Specifications:

  • I/O Connections:
    • Input channels: (2) AC
    • Input voltage:
      • 100~240VAC
      • 50~60HZ
    • Output channels: (12) DC 2-pin phoenix
    • Output voltage (selectable):
      • 5V (4.75~5.25V)
      • 12V (11.4~12.6V)
      • 24V (22.8~25.2V)
    • Output power rating: 15W per channel
    • Total output power consumption: 180W
    • Voltage selection: Rear panel TACT switch, R
  • Control:
    • Sequencing startup time: 100ms
    • Control formats:
      • RS232 (3-pin phoenix)
      • Front panel (12 buttons–one per channel)
      • TCP/IP (RJ45)
      • Web-based GUI
    • Default IP address:
      • 192.168.0.178
      • Port: 4001
    • Supported baud rates: 1200, 2400, 4800, 9600 (default), 19200, 38400, 57600, 115200
  • General:
    • Enclosure: Painted aluminum
    • Regulatory: UL, FCC, CE
    • Standard warranty: 3 years
    • Operating temperature range: 32°~122°F (0°~50°C)
    • Operating humidity range: 10~90% non-condensing
    • Dimensions (WxHxD): 17.2” x 1.7” x 14.1” (437 x 44 x 357mm)
    • Weight: 9.2lbs (4.2Kg)
