Product Overview

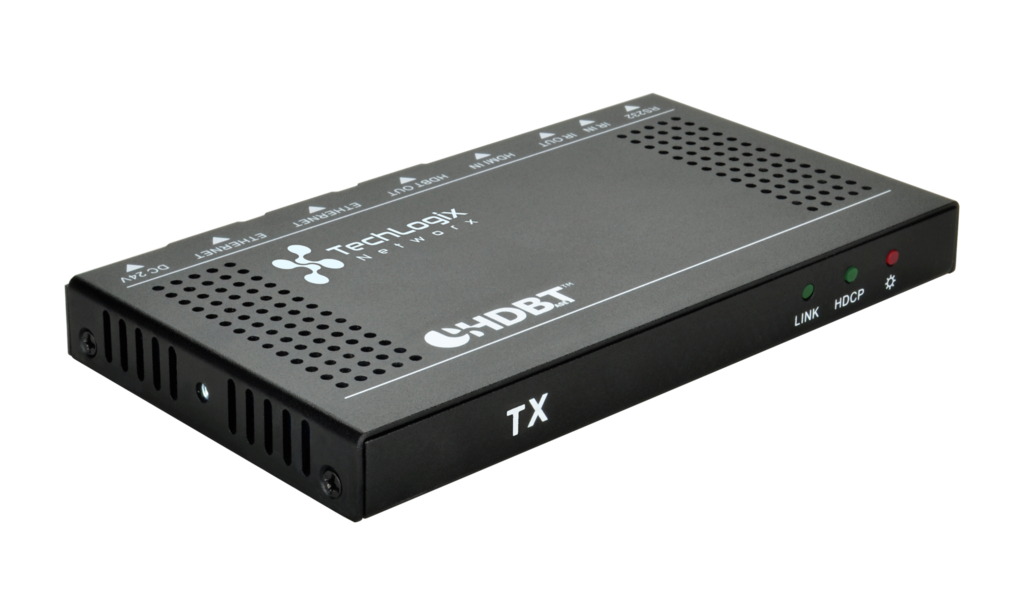

The TechLogix Networx TL-TP100-HDC HDMI Extender replaces a traditional HDMI cable with active electronics designed specifically for sending video signals up to 330 feet. Plus, built-in IR and RS232 control signal embedding allow you to also transmit remote control commands with the HDMI stream.
In actual practice, this means you can use the TL-TP100-HDC to send audio and video signals from your source device (often a switcher, cable box, or DVD player) to your destination device (often a display or projector) and control the source device remotely...all using a single twisted pair cable. In other words, you can install your source device in a remote closet or cabinet and control it with the same remote control used for your display.
TechLogix Networx TL-TP100-HDC Includes:
- Installation Guide
- Power supply
- US power cord
- Mounting “L” brackets (4 ea)
- Mounting screws (4 ea)
- IR Transmitter
- IR Receiver
TechLogix Networx TL-TP100-HDC Features:
- Transmit HDMI, RS232 & IR over a single twisted pair cable
- Extend 1080p HD up to 330 ft. (100m.)
- Extend 4K@30 HD up to 230 ft. (70m.)
- Embedded bi-directional IR and RS232 control
- Two Ethernet pass-through channels
- System powered from either the transmitter or receiver
- HDBaseT Certified
TechLogix Networx TL-TP100-HDC Specifications:
- I/O Connections:
- HDMI: HDMI Type A Receptacle
- Twisted Pair: 8P8C port (Shielded RJ45)
- IR Input: 3.5mm TRS Jack
- IR Output: 3.5mm TS Jack
- RS232: 3pin phoenix socket
- 24V DC Power: 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)
- Ethernet: 2x 8P8C port (Shielded RJ45)
- Supported Video and Audio:
- Maximum Video Compatibility: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2; up to 60 Hz: YCbCr 4:2:0
- Video Compliance: HDMI, HDCP 2.2, and CEC (Consumer Electronics Control)
- Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
- Input DDC Signal: 5.0 volts p-p (TTL)
- Input Video Signal: 0.5 to 1.0 volts p-p
- IR Carrier Frequency Range: 33-55kHz at 5 volts
- HDBaseT Signal Characteristics:
- Maximum Distance: 330 ft. (100m)
- Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B
- Bandwidth: 10.2 Gbps
- Chassis and Environmental:
- Enclosure: Painted aluminum
- Dimensions: 152 x 84 x 16mm
- Shipping Weight: 0.71Kg (1.55 lbs)(Tx+Rx)
- Operating Temperature (Environment): -10° to +40° C
- Operating Temperature (Chassis): 45° C
- Operating Humidity (Environment): 10% ~ 90%
- Storage Temperature (Environment): -15° to +70° C
- Storage Humidity (Environment): 0%~55%
- Power, ESD, Regulatory:
- Maximum Power Consumption: 4.4W (TX), 6.7W (RX)
- Power Supply: 24V DC
- ESD Protection: 15KV
- Regulatory: HDBaseT, CE, FCC
- Other:
- Standard Warranty: 1 Year
- Diagnostic Indicators: Power, Link, and HDCP LEDs
- Network Indicators: Link Speed and Activity
