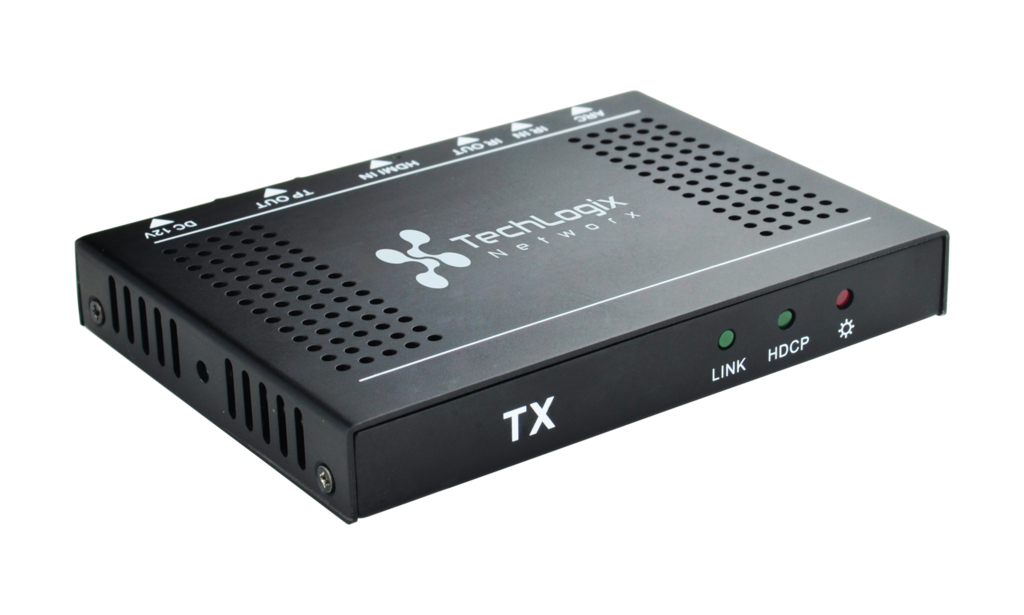

TechLogix Networx TL-TP70-HDIR
70m HDMI & IR over Twisted Pair Cable Extender

OUR PART #:  TL-TP70-HDIR

The TechLogix Networx TL-TP70-HDIR HDMI Extender replaces a traditional HDMI cable with active electronics designed specifically for sending video signals up to 230 feet.
Learn More
Our Price: $399.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-TP70-HDIR
Qty:
In Stock

Similar Products

The TechLogix Networx TL-TP70-HDIR HDMI Extender replaces a traditional HDMI cable with active electronics designed specifically for sending video signals up to 230 feet. Plus, built-in IR control signal embedding allow you to also transmit bi-directional IR commands with the HDMI stream.

In actual practice, this means you can use the TL-TP70-HDIR to send audio and video signals from your source device (often a switcher, cable box, or DVD player) to your destination device (often a display or projector) and control the source device remotely...all using a single twisted pair cable. In other words, you can install your source device in a remote closet or cabinet and control it with the same remote control used for your display.

TechLogix Networx TL-TP70-HDIR Features:

  • Transmit HDMI & IR over a single twisted pair cable
  • Extend 1080p HD up to 230 ft. (70m.)
  • Extend 4K@30 HD up to 130 ft. (40m.)
  • Embedded bi-directional IR control
  • System powered from either the transmitter or receiver
  • Audio Return Channel (ARC)

TechLogix Networx TL-TP70-HDIR Specifications:

  • I/O Connections:
    • HDMI: 1 HDMI type A connector
    • HDBT: 1 RJ45 connector
    • IR in: 1 3.5mm stereo jack
    • IR out: 1 3.5mm mono jack
    • ARC audio: 1 coaxial RCA connector in transmitter
    • Power: 1 DC 12V connector with locking screw
  • Supported Audio and Video:
    • Maximum Video Compatibility:
      • 70 m: Deep Color 36/30/24 Bit at 1080p
      • 40 m: Deep Color 48 Bit at 1080p, 3D, 4k x 2k (UHD) 30 Hz: RGB,
      • YCbCr 4:4:4, YCbCr 4:2:2, 60 Hz: YCbCr 4:2:0
    • Video Compliance: HDMI 1.4, HDCP 2.2
    • ARC audio: PCM on HDMI (input) or Coax digital output
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
    • Input Video Signal: 0.5-1.0 Vpp
  • HDBaseT Signal Characteristics:
    • Maximum Distance: 70m
    • Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
    • Bandwidth: 10.2 Gbps
