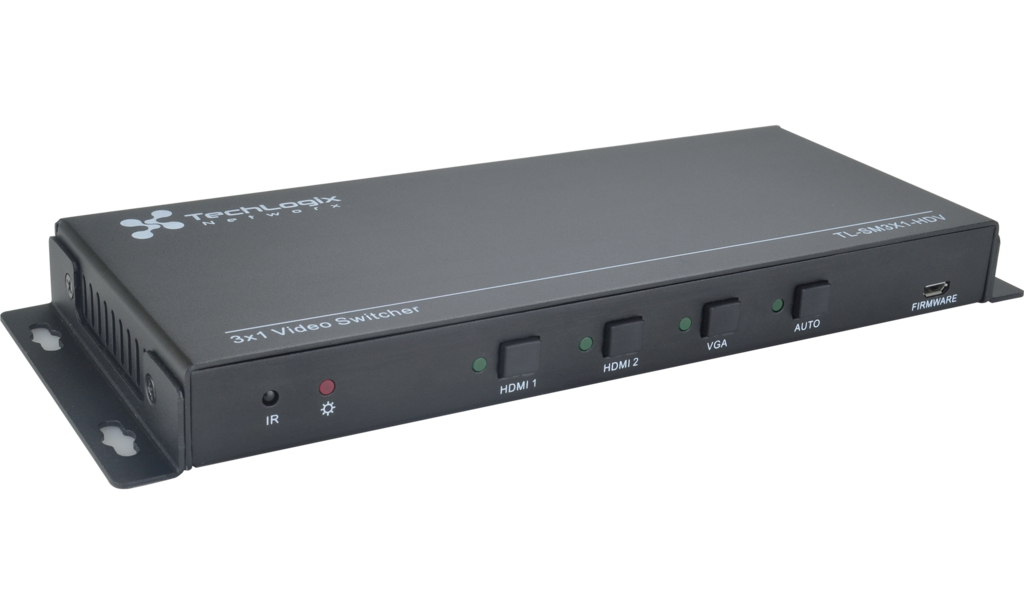

TechLogix Networx TL-SM3X1-HDV
Share-Me 3x1 HDMI & VGA Switcher

OUR PART #:  TL-SM3X1-HDV

The TechLogix Networx TL-SM3X1-HDV is a 3x1 collaboration switcher with HDMI and VGA inputs.
Learn More
Our Price: $299.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-SM3X1-HDV
Qty:
In Stock

Similar Products

The TechLogix Networx TL-SM3X1-HDV is a 3x1 collaboration switcher with HDMI and VGA inputs. TechLogix Share-Me™ Series presentation switchers redefine the usability, versatility and cost of huddle room, meeting room and classroom collaboration. When paired with a compatible table insert, the Share-Me™ Series under-table mounted switcher provides both AV switching and display control for the cost of most 40" displays using innovative table insert controllers and a professional-grade switcher.

Table inserts (sold separately) are available for HDMI, VGA and DisplayPort source devices, providing connectivity for sources such as laptops and tablets, as well as display on/off and source selection control that is simple enough for any user to understand with virtually no training.

Simply put, an entire meeting can be run with only two buttons: an "on/off" button which turns the switcher and the display on or off, and a "share-me" button which switches the active input channel to the table insert on which the button was pressed.

The system also features automatic switching for sources that are not connected to the table inserts, such as media players, fixed PCs, or document cameras. When a source is connected and/or powered on, the system will recognize the input and automatically switch to that channel.

The TechLogix Share-Me™ Series is also designed for an extremely quick installation. Simply mount the switcher under the podium or conference room table, mount the table inserts in pre-cut holes sized from 36mm through 60mm, and connect the table inserts to the switcher using standard AV cables (HDMI, DisplayPort, or VGA) and a 3.5mm cable. All power and control commands are sent from the table inserts to the switcher via the 3.5mm cable, and all display on/off commands are sent from the switcher to the display via CEC over an HDMI cable.

TechLogix Networx TL-SM3X1-HDV Features:

  • Two HDMI inputs and one VGA input
  • One HDMI output
  • Manual or automatic switching modes
  • HDMI ports support DisplayPort and MHL
  • CEC display control
  • Built-in scaling up to 1080p/1920x1200 per channel
  • Under table mounting kit included
  • Quick connect ports for table insert integration

TechLogix Networx TL-SM3X1-HDV Specifications:

  • Input/output:
    • Video Input:
      • 1 HDMI/MHL
      • 1 HDMI
      • 1 VGA
    • Video Input Connector:
      • 2 female HDMI
      • 1 female VGA (15-pin)
    • Input Video Signal: HDMI, YPbPr, C-video, VGA
    • Video Output: 1 HDMI
    • Video Output Connector: 1 female HDMI
    • Output Video Signal: HDMI
    • Output Resolution:
      • HDMI output video support HDMI 1.4 & HDCP 1.4; maximum resolution of 4K@30 4:4:4
      • VGA output video support HDMI 1.4 & HDCP 1.4; maximum resolution of 1920x1200. Other supported resolutions include: 1920x1080, 1600x1200, 1600x900, 1360x768, 1280x800, 1280x720, or 1024x768
  • Audio:
    • Audio Input: 1 stereo audio input for VGA video
    • Audio Input Connector: 1 3.5mm stereo jack
    • Audio Input Impedance: >10kO
    • Frequency Response: 20Hz~20K Hz
    • Stereo Channel Separation: >80dB @1KHz
  • Control Part:
    • Control Port:
      • 3 Dry Contact (C1~C3)
      • 1 FIRMWARE
    • Control Connector:
      • 3 3.5mm mini jack
      • 1 Micro-USB
    • Control Buttons:
      • Front Panel: HDMI 1, HDMI 2, VGA, AUTO
      • Rear Panel: RES RESET
  • General:
    • Temperature: 0 ~ +50°C
    • Humidity: 10% ~ 90%
    • Power Supply: DC12V 1A
    • Max Power Consumption: 2W
    • Dimension (WxHxD): 201.5 x 22.0 x 84.0mm
    • Weight: 246g
    • Compatible TechLogix Table Inserts:
      • TL-SMG-HD (HDMI)
      • TL-SMG-VGA (VGA)
      • TL-SMG-DP (DisplayPort)
    • Warranty: 3 years
