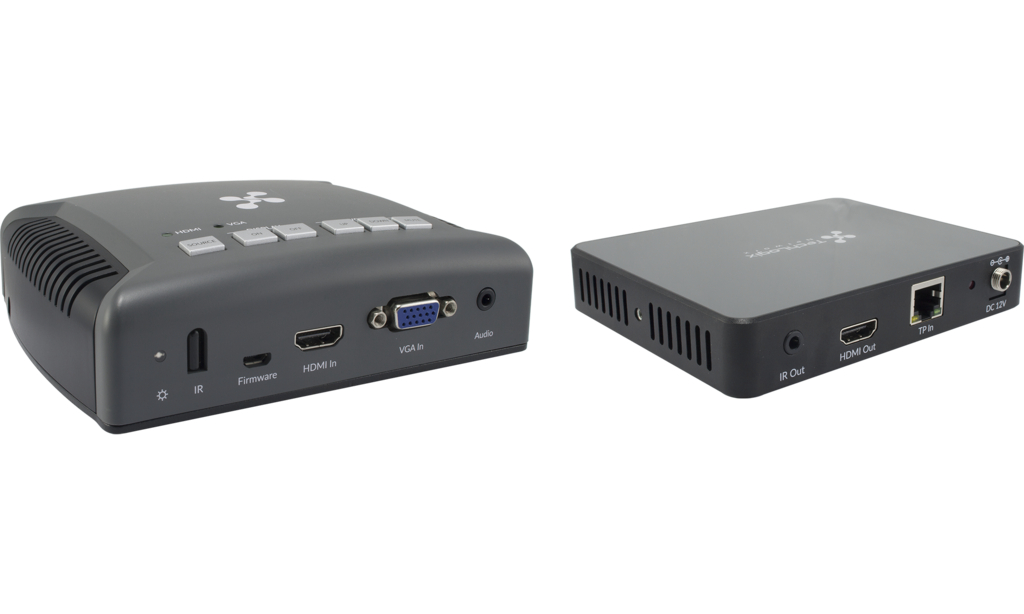

TechLogix Networx TL-SMP-HDV
Share-Me Hub & Receiver with HDMI & VGA inputs

OUR PART #:  TL-SMP-HDV

The TechLogix Networx TL-SMP-HDV package combines a control system, twisted pair extender, and presentation switcher in a single, affordable package.
Learn More
Our Price: $599.99
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-SMP-HDV
Qty:
In Stock

Similar Products

The TechLogix Networx TL-SMP-HDV package combines a control system, twisted pair extender, and presentation switcher in a single, affordable package.

Simply place the transmitter in the collaboration space, place the receiver at the display or projector, connect the two with a twisted pair cable, and connect power to the receiver.

No more complexity, lost remote controls or missing presentation adapters—the SMP transmitter and receiver manage the room reliably, affordably, and intuitively.

TechLogix Networx TL-SMP-HDV Includes:

  • Power supply with adapters (US, EU, UK, AU)
  • Mounting “L” brackets (2 ea)
  • Mounting screws (2 ea)
  • IR Transmitter
  • Rubber feet (8 ea)

TechLogix Networx TL-SMP-HDV Features:

  • Designed for table or podium-top use
  • HDMI and VGA+audio inputs
  • HDMI output
  • Twisted pair connection between transmitter and receiver
  • Buttons for source selection and display control
  • Built-in cable strain relief and security
  • Built-in IR window for learning commands
  • Selectable CEC and IR display control outputs
  • Powered from the receiver
  • Locking power supply
  • 220 ft. (70m) max distance between transmitter and receiver

TechLogix Networx TL-SMP-HDV Specifications:

  • Transmitter I/O Connections:
    • HDMI In: HDMI Type A Receptacle
    • VGA In with Audio: Female HD15 connector with 3.5 mm TRS
    • TP Out (Bottom of device): 8P8C port (Shielded RJ45)
    • IR (IR learning only): Embedded IR receiver
    • Firmware: Micro USB Type B
  • Receiver I/O Connections:
    • HDMI Out: HDMI Type A Receptacle
    • TP In: 8P8C port (Shielded RJ45)
    • IR Out: 3.5mm TS Jack
    • DC 12V: 5.5 mm Outside Diameter, 2.6 mm Inside Diameter Barrel (Locking)
  • Supported Video and Audio:
    • Maximum Video Compatibility: 70 m: Deep Color 36/30/24 Bit at 1080p 40 m: Deep Color 48 Bit at
      1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2; up to 60 Hz: YCbCr 4:2:0
    • Video Compliance: HDMI, HDCP 1.4, and CEC (Consumer Electronics Control)
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
  • Extender Signal Characteristics:
    • Maximum Distance:
      • 70 m: Deep Color 36/30/24 Bit at 1080p
      • 40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2; up to 60 Hz: YCbCr 4:2:0
    • Cable Requirements: Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
    • Bandwidth: 10.2 Gbps
    • Maximum Distance: 70 m (220 ft)
  • Chassis and Environmental:
    • Enclosure: Top: Gray ABS, Bottom: Painted Steel
    • Transmitter Dimensions (HxWxD): 1.65" x 5.91" x 4.72" (42 x 150 x 120 mm)
    • Receiver Dimensions (HxWxD): 0.91" x 5.12" x 4.02" (23 x 130 x 102 mm)
    • Shipping Weight: 3.80 lbs (1.72 kg)
    • Operating Temperature (Environment): -10° to +40°C
    • Operating Humidity (Environment): 10% ~ 90%
    • Storage Temperature (Environment): -15° to +70°C
    • Storage Humidity (Environment): 0%~55%
  • Power, ESD, Regulatory:
    • Maximum Power Consumption: 4.4W(TX), 6.7W(RX)
    • Power Supply: 12V DC
    • ESD Protection: 15KV
    • Regulatory: CE, FCC
  • Other:
    • Standard Warranty: 1 Year
    • Transmitter Diagnostic Indicators: Power LED, HDMI active LED, VGA active LED
    • Receiver Diagnostic Indicators: Power LED, Twisted Pair LEDs
