Product Overview
The TechLogix Networx TL-SM-HDVDP Share-Me™ is a HDMI, VGA, and DP presentation system. Each TL-SM-HDVDP presenter is versatile enough to service as a four input switcher for both local and remote sources, while also serving two independent outputs—one local and one remote—with selectable video and display control. It’s effectively a switcher, extender, scaler, and controller all in a single device.
Simply place a TL-SM-HDVDP presenter at each user station, local room, or meeting table and connect up to three local sources. Connect the presenters to in-area local displays via an HDMI cable, or connect the presenters to remote displays and/or additional presenters via twisted pair cable. Each unit can select and display the local video sources and the remote sources linked in the chain.
The TL-SM-HDVDP offers a clean, easy-to-use and affordable alternative to the traditional AV system, all without sacrificing processing horsepower or usability.
TechLogix Networx TL-SM-HDVDP Features:
- Share-Me™ system for in-room and multi-room applications
- Ideal for distributed AV systems & cascaded devices
- Link multiple devices & rooms via HDBaseT twisted pair extension
- Twisted pair extension up to 330 ft. (100m)

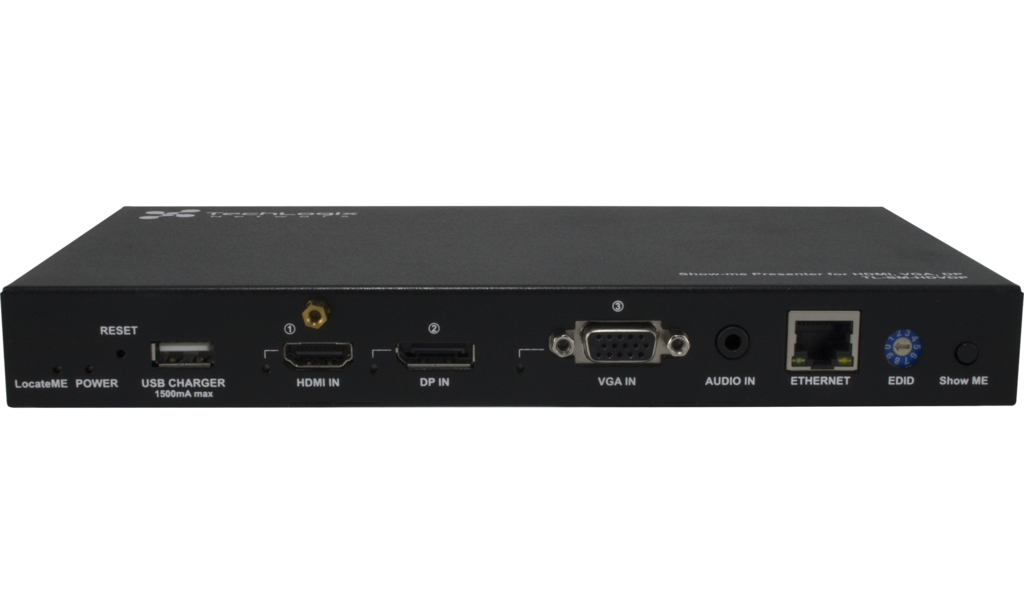

- Three local device inputs: HDMI, DisplayPort & VGA
- One twisted pair input & one twisted pair output
- Local HDMI output with audio de-embedding
- Auto or manual switching between outputs
- Manual switching via contact closure, front panel or software
- HDMI 2.0 compliant
- HDCP 2.2 compliant
- Output video signal scaling
- Video support up to 4K@60 4:2:0
- Display control via CEC and RS232
- Two port Ethernet switch with integrated extension over twisted pair
- Built-in USB charger for mobile devices
- Built-in web server for software control
- Built-in signal re-clocking & cable equalization
TechLogix Networx TL-SM-HDVDP Specifications:
- Technical:
- Input:
- 1 x HDMI IN, 1 x DisplayPort IN
- 1 x VGA IN, 1 x HDBaseT IN
- 1 x Audio in for VGA, DP/HDMI/HDBT embedding audio
- Input Signal Type:
- HDMI: HDMI 2.0 w/HDCP 2.2,
- DP: DP 1.2 w/HDCP2.2
- Audio: 3.5mm jack
- Input Resolution Support:
- HDMI: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080p@24/25/30/50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz, 1920x1200@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1600x900@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x1024@60H, 1280x960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1024x768@60Hz, 800x600@60Hz
- DisplayPort: 800x600@60 Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680 x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz, 1920x1080P@60Hz, 3840x2160@50Hz, 3840x2160@60Hz, 4096x2160@50Hz, 4096x2160@60Hz.
- VGA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440 x900@60Hz, 1600 x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920 x1080@60Hz, 1920 x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz, 1920x1080P@60Hz
- Output:
- 1 x HDMI OUT, 1x HDBaseT OUT,
- 1 x HDMI audio de-embedded, Stereo
- Output Signal Type: HDMI 1.4 w/HDCP 2.2, HDBaseT
- Output Resolution Support:
- HDMI: 4096 x 2160@24/25/30/50/60Hz, 3840 x 2160@24/25/30/50/60Hz, 1080p@24/25/30/50/60Hz, 1080i@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz; 1920 x 1200@60Hz, 1680 x 1050@60Hz, 1600 x 1200@60Hz, 1600 x 900@60Hz, 1440 x 900@60Hz, 1400 x 1050@60Hz, 1366 x 768@60Hz, 1360 x
- DisplayPort: 800x600@60 Hz, 1024x768@60Hz , 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz, 1920x1080P@60Hz, 3840x2160@50Hz, 3840x2160@60Hz, 4096x2160@50Hz, 4096x2160@60Hz
- VGA: 800x600@60 Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680 x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1280x720P@50Hz, 1280x720P@60Hz, 1920x1080P@50Hz, 1920x1080P@60Hz,
- Note: HDBaseT out: HDMI 1.4 with 4k@60Hz (Chroma sub-sampling 4:2:0 8-bit only)
- Video Impedance: 100 O
- Input Video Level: 0.5-1.2 V p-p
- Input DDC Level: 5 volts p-p (TTL)
- Maximum Pixel Clock: 600MHz
- Control:
- Control Method: Share-Me™, Contact Closure, Telnet, Web GUI
- General:
- Operating Temperature: 32°F to 113°F (0°C to 45°C)
- Storage Temperature: -4°F to 158°F (-20°C to 70°C)
- Humidity: 10% to 90%, non-condensing
- ESD Protection: Human-body Model: ±8kV (Air-gap discharge)/±4kV (Contact discharge)
- Power Supply: DC 12V 3A
- Power Consumption: 20.52W (Maximum)
- Device Dimension (W x H x D): 8.78" x 1.06" x 4.89" (223 x 27 x 124.2mm)
- Product Weight: 0.8kg
- Certification: CE, FCC, RoHS
