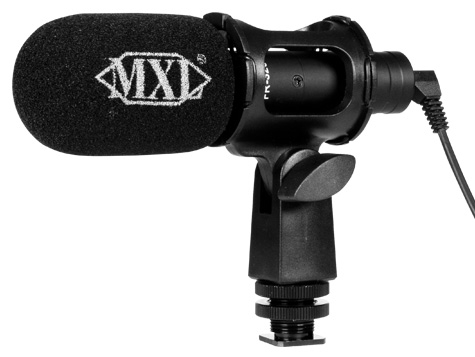

MXL FR-320 Stereo Field Recording Microphone Image 1
MXL FR-320 Stereo Field Recording Microphone
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The MXL FR-320 is a stereo field recording microphone. Portable electret condenser microphone with dual capsules positioned in a 90-degree X/Y pattern for capturing realistic stereo sound. Designed for use with portable recorders, video cameras and video-enabled DSLR cameras. The sensitive electret condenser capsules are positioned in a 90 degree X/Y pattern to capture a realistic stereo image whether you are recording a live concert performance or audio on a movie set. The microphone can be powered by either an LR44 battery or 2.5V mic bias provided from the recording device. Features a removable 1/8" TRS cable, on off switch to extend battery life when the microphone is not in use, and a durable metal housing.

MXL FR-320 Features:

  • Stereo Electret Condenser Microphone
  • 90 degree X/Y pickup pattern captures realistic stereo sound
  • Powered by battery (LR44) or Mic bias (2.5V)
  • 1/8" TRS Cable
  • Durable metal construction for use in the field and on the road

MXL FR-320 Specifications:

  • Transducer: 2 Electret Condenser Capsules
  • Polar Pattern: X/Y Stereo
  • Frequency Response: 50Hz - 16kHz
  • Output Impedance: 600 ohms
  • Power Requirements: LR44 battery or 2.5V mic Bias
  • Output Connector: 3.5mm TRS
  • Dimensions: 5 in. x 7/8 in.
  • Weight: 0.5lbs
