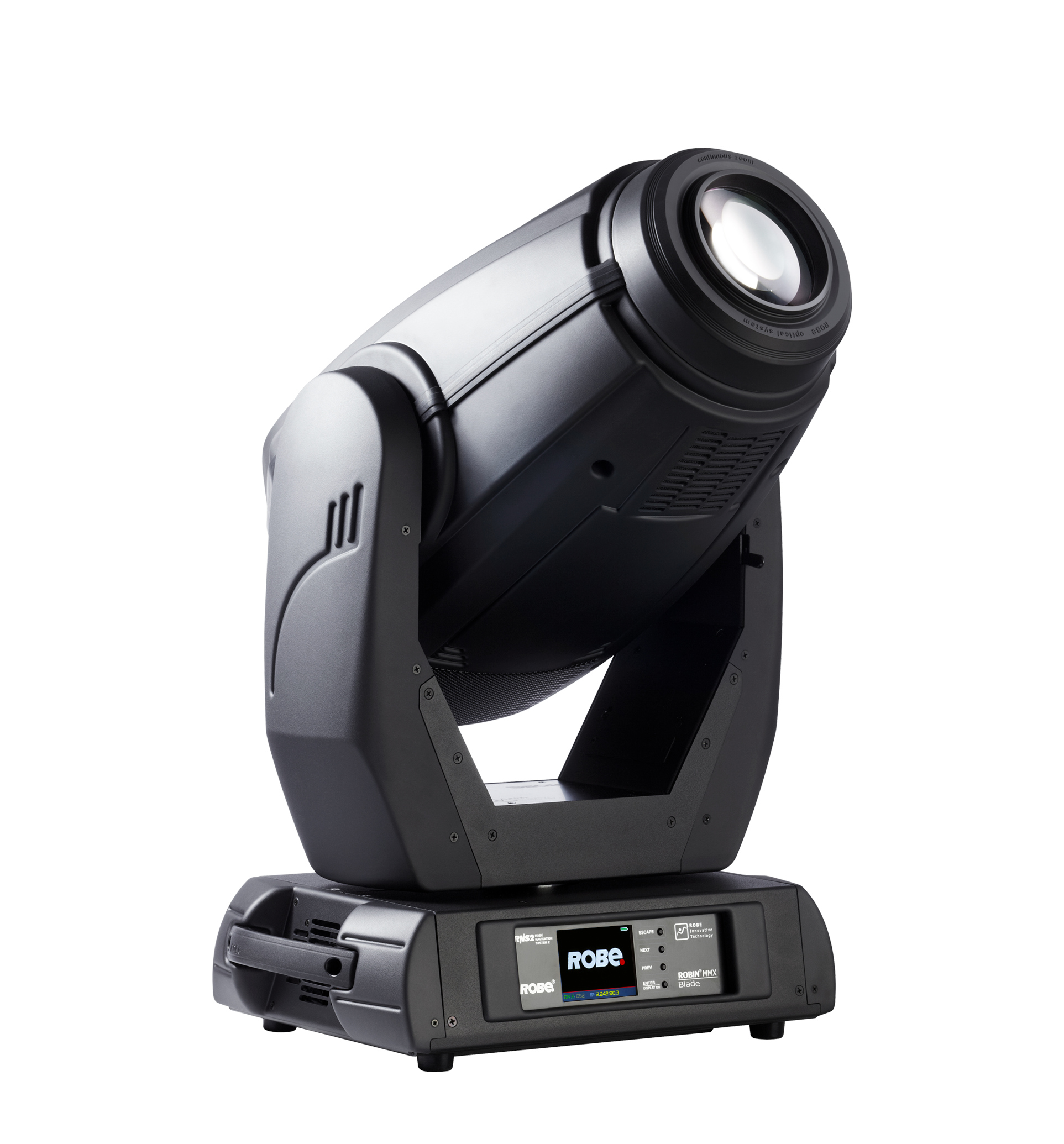

Robe Lighting, Inc MMX Blade
Moving Head Profile Fixture

OUR PART #:  ROBIN-MMX-BLADE-CDBD

The Rode Robin MMX Blade™ is based on the new technology MMX discharge fixture, comparable output to 1200 W luminaires...
Learn More

Call for price! Not available online.
List Price: $13,349.00

Similar Products

The Rode Robin MMX Blade™ is based on the new technology MMX discharge fixture, comparable output to 1200 W luminaires, the MMX Blade adds a framing shutter system into the optical path.

Four fast, smooth moving, shutter blades are individually angled and positioned within a frame which itself can rotate through 90°. As well as providing a sharp or soft, precisely repeatable, frame for the projected image, the system produces a new series of fast moving in-air effects through pre-programmed blade shape and movement sequences. The MMX Blade includes many of the innovative features of the MMX including the Robe exclusive Hot-Spot lamp control feature that allows remote adjustment of flat beam uniformity or power beam hot-spot.

NOTE: Optional Road Case Available

Rode Robin MMX Blade™ Features:

  • Light source: Philips MSR Platinum 35
  • Light output: 26.141 lm
  • Zoom range: 8,5° - 45, 5°
  • Effects: rotating gobo wheel, Dual Animation Wheel, Framing Shutters module, 5-facet rotating prism

Rode Robin MMX Blade™ Specifications:

  • Source:
    • Lamp: Compact high-pressure metal halide lamp
    • Base: PGJX36
    • Approved model: Philips MSR Platinum 35, 1200 W equivalent
    • Lamp Life: 750 hours
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical system:
    • Dichroic glass reflector for maximising the light efficiency
    • Zoom range: 8.5° – 45.5° (8.5° – 41.5° for gobo, 9.8° – 45.5° for open hole)
  • Electromechanical Effects:
    • Cyan: 0–100%
    • Magenta: 0–100%
    • Yellow: 0–100%
    • CTO: 0–100%
    • Hot-spot control: Hot-or-not-spot
    • Color wheel: 6 dichroic filters + white
    • Framing shutters: 4 individually positionable blades with 90° rotation of the complete framing system
    • Aluminium Animation wheel
    • Rotating Gobo wheel 1: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
    • Iris: Motorized, stepless, pulse effects up to 3 Hz
    • Prism: 5-facet prism rotating in both directions at different speeds
    • Frost effect: separate, variable
    • Dimmer/Shutter: full range dimming and variable strobe effect, Electronic strobbing "ZAP" effect
    • Motorized zoom and focus
    • Pan: 540°
    • Tilt: 270°
  • Control and Programming:
    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
    • Optional wireless version available: CRMX™ technology from Lumen Radio
    • Control channels: 45, 39, 37
    • 3 DMX protocol modes
    • 3-editable programs, each up to 100 steps
    • Stand-alone operation
    • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
    • Pan/Tilt resolution: 8 or 16 bit
    • Movement control: Tracking and vector
    • Color wheel positioning: 8 or 16 bit
    • Rotating gobo wheel positioning: 8 bit
    • Gobo indexing & rotation: 8 or 16 bit
    • Framing shutters system: 8 bit
    • Animation wheel: 8-bit
    • Iris: 8 or 16bit
    • Frost: 8 bit
    • Zoom: 8 or 16bit
    • Focus: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Ethernet port: Art-Net, MA Net, MA Net 2 protocols, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Power in: Neutrik PowerCon
    • Built-in analyser for easy fault finding
  • Rotating Gobos:
    • Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
  • Animation wheel:
    • Aluminium Animation wheel
    • Can be used alone or in combination with rotating gobos
    • Rotating in both directions, variable speed
  • Framing shutters system:
    • 4 Blades, each with separate movement and rotation control
    • Smooth blade movements at variable speed
    • Ultrafast blade movements for creating mid-air effects
    • Pre-programmed shape and blade sequences
    • 90° rotation of the complete framing system
  • Thermal Specification:
    • Maximum ambient temperature: 104°F (45°C)
    • Maximum surface temperature: 212°F (100°C)
  • Electrical Specification:
    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 1020 W at 230 V / 50 Hz
  • Mechanical Specification:
    • Dimensions (HxWxD): 28.4" x 17.6" x 20.8" (722 x 446 x 530 mm)
    • Weight: 58.9 lbs (26.7 kg)
    • Fixation option: Pan/Tilt-lock mechanism
  • Rigging:
    • Mounting points: 2 pairs of ¼-turn locks
    • 2 x Omega brackets with ¼-turn quick locks
