Robe Lighting, Inc ROBIN-1000-LEDBEAM-C
LED Moving Head Beam

OUR PART #:  ROBIN-1000-LEDBEAM-C

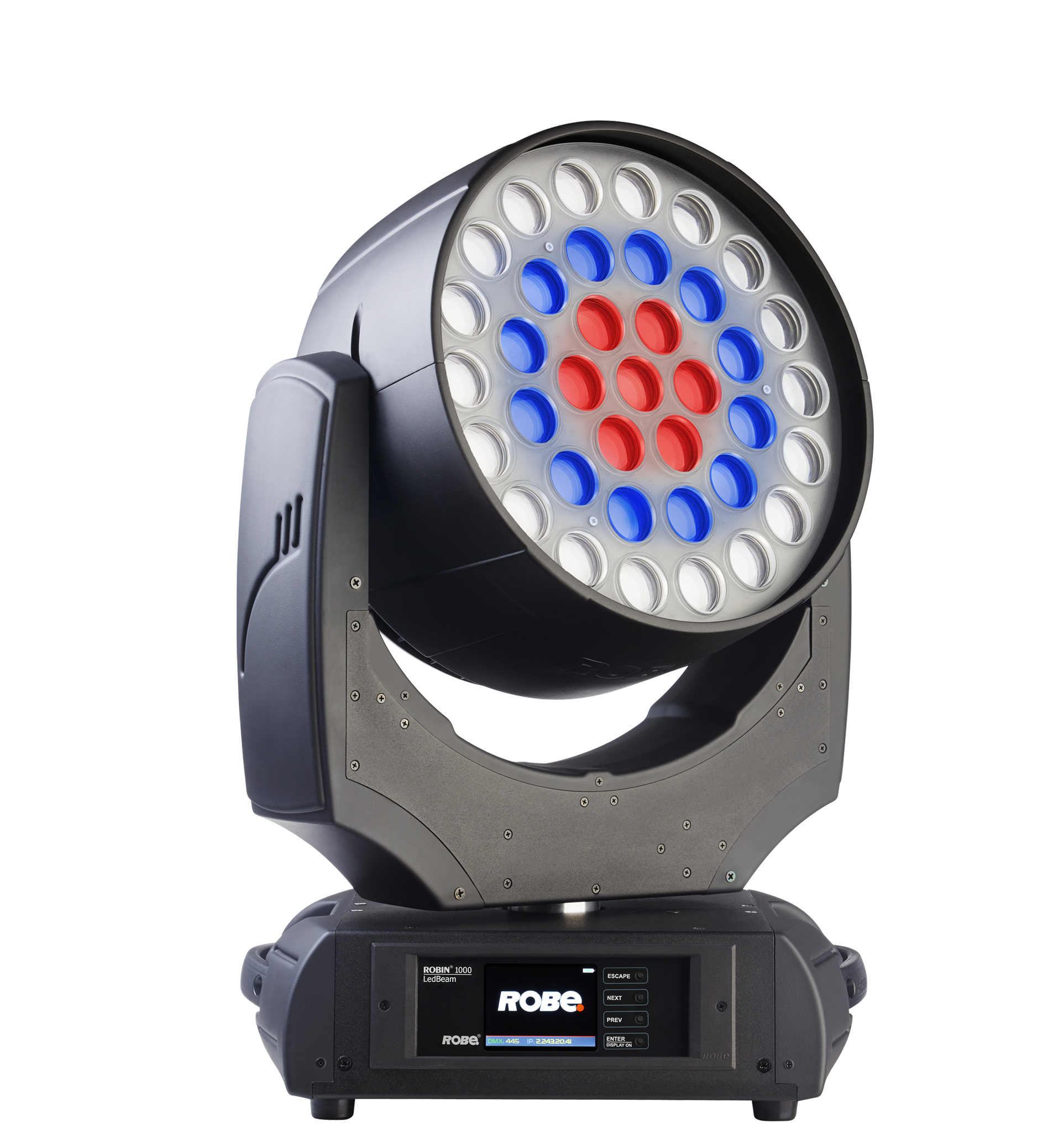

The ROBE Robin 1000 LEDBeam has a tight 4° beam that cuts through the atmosphere and then opens up to a smooth wide 63° wash output.
Learn More

Call for price! Not available online.
List Price: $8,319.00

Similar Products

The ROBE Robin 1000 LEDBeam has a tight 4° beam that cuts through the atmosphere and then opens up to a smooth wide 63° wash output. Based on an array of powerful 15W RGBW LED multichips, with revolutionary optics especially developed for a high output under any circumstance and with the moving head fitted with fast-spin motors which utilize our popular super speedy software driving technique (as used in our Pointe and Robin 100 LEDBeam), this is the right unit that you need for any high profile stage, long distance throw or extra wide theatre scene. All the very important software features of the LED series have been incorporated – including CMY/RGBW colour mixing, improved smooth dimming, tungsten lamp emulation, variable CTO or powerful strobe, which in turn make the new Robin 1000 LEDBeam a very appealing wash/beam solution.

NOTE: Optional Road Case Available

ROBE Robin 1000 LEDBeam Features:

  • Light Source: 37x 15 W RGBW multichips
  • Light Output: 18.000 lux @ 5 m / 9.060 lm
  • Zoom Range: 4° - 63°
  • Effects: 3 LED rings control, tungsten lamp effect, fast strobe

ROBE Robin 1000 LEDBeam Specifications:

  • Source:
    • Light Source Type: 37x 15 W RGBW multichips
    • Fixture total lumen output: 16.000 lm
    • Light Output: 18.000 lx @ 5 m
    • LED Life Expectancy: minimum 60 000 hours
    • Typical Lumen Maintenance: 70% @ 60 000 hours
  • Optical System & Effects:
    • High efficient component optics
    • Zoom range: 4°-63°
    • Color Mixing System: RGBW/CMYW 8-bit or 16-bit
    • CTO filter
    • Virtual color wheel with pre-programmed 237 colors including whites (2 700, 3 200, 4 200, 5 600 and 8 000)
    • LED Zones: 3 LED rings, individual color control of each LED ring
    • Tungsten Lamp Effects at Whites: 2 700 K and 3 200 K
    • Color rainbow effects in both directions with variable speed
    • Zone color effects in both directions with variable speed
    • High Resolution Dimmer: 0-100%
    • Strobe effect with variable speed (max.20 flashes per second)
    • Individual zone strobe effect with variable speed
    • Preprogramed random strobe & pulse effects
  • Control and Programming:
    • Setting & Addressing: Robe Navigation System 2 (RNS2)
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
    • Optional wireless version available: CRMX™ technology from Lumen Radio
    • Control Channels: 37, 21, 15, 10, 37
    • Protocol Modes: 5 DMX
    • Programs: 3 editable programs up to 100 steps
    • Stand-alone operation
    • Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
    • Ethernet Port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built in analyser for easy fault finding
  • Thermal Specification:
    • Maximum Ambient Temperature: 113°Fx (113°F)
    • Maximum Housing Temperature: 167°F (75°C)
  • Movement:
    • Pan movement range 450°
    • Tilt movement range 300°
    • 16 bit movement resolution
    • Automatic Pan/Tilt position correction
    • Built-in Pan/Tilt macros
  • Electrical Specification:
    • Electronic auto-ranging
    • Input Voltage: 100-250 V AC, 50-60 Hz
    • Power Consumption: max. 800W (4 LED colours at all rings)
    • Power Connector: Neutric PowerCon
  • Mechanical Specification:
    • Dimensions (HxWxD): 22.4" x 16.3" x 12.3" (568 x 415 x 312 mm)
    • Weight: 19,4 kg (42.8 lbs)
  • Rigging:
    • Mounting Points: 2 pairs of 1-turn locks
    • Omega Brackets: 2x Omega bracket with 1-turn quick locks
