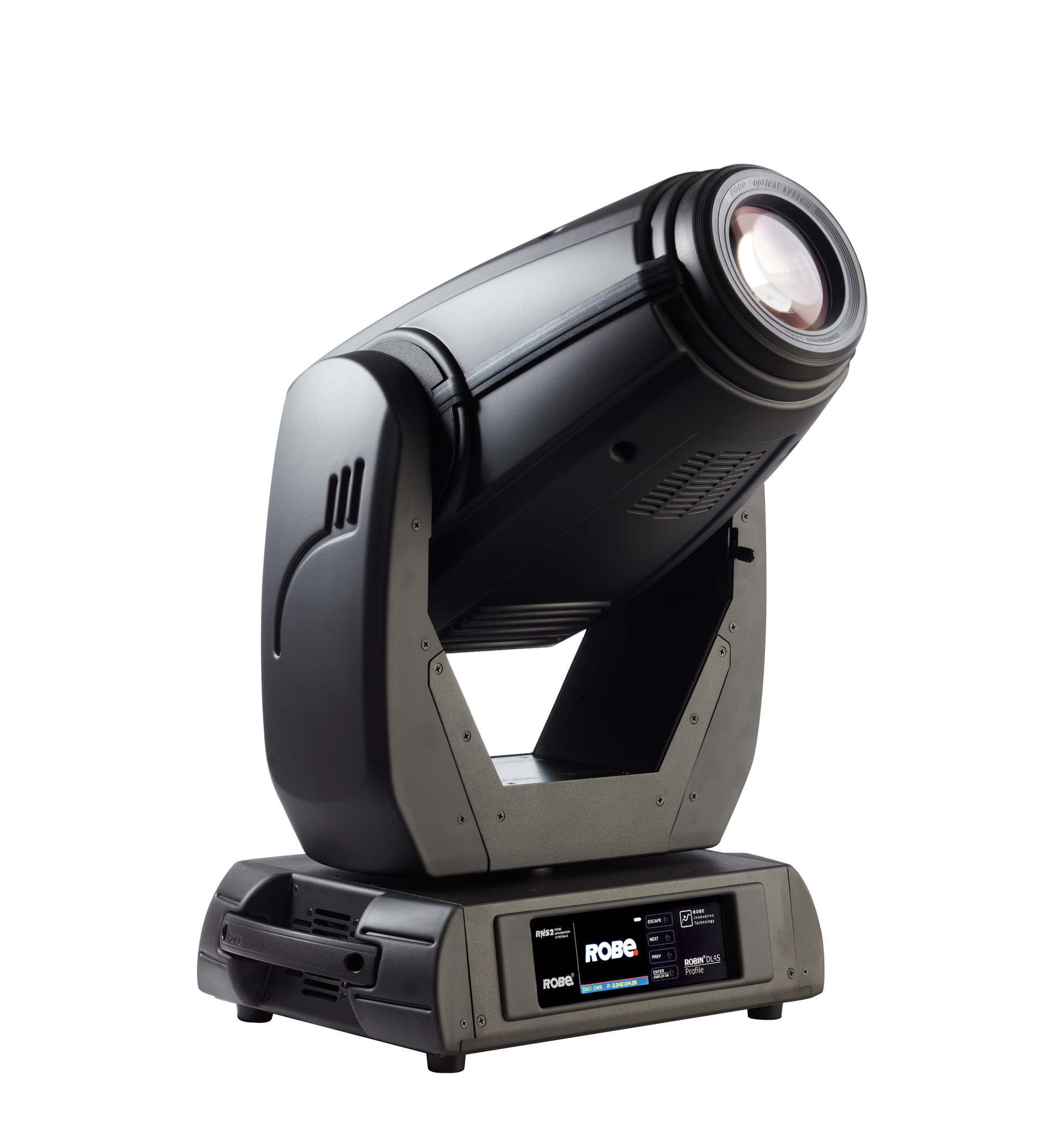

Robe Lighting, Inc ROBIN-DL4S-PROFIL-CB
480 Watt LED Moving Head Profile Fixture

OUR PART #:  ROBIN-DL4S-PROFIL-CB

The Robe ROBIN-DL4S-PROFIL-CB DL4S is equipped with enhanced version of the ROBE RGBW LED module for brighter saturated colors and more powerful output.
Learn More

Call for price! Not available online.
List Price: $12,399.00

Similar Products

The Robe ROBIN-DL4S-PROFIL-CB DL4S is equipped with enhanced version of the ROBE RGBW LED module for brighter saturated colors and more powerful output.

To magnify the already perfectly smooth colors, fades and dimming, the DL4S features innovative LED driving system for improved, extremely high definition dimming curve for all R, G, B, W colors, with 18 bit resolution. The DL4S adds a system of four fast, smooth, framing shutters within the optical path design of the proven DLS Profile format. There is individual control of each shutter blade position and angle, together with rotation of the complete framing module. As well as providing a sharp precise or soft frame for the projected image, the system produces a new series of effects through pre-programmed shutter blade shape and movement sequences. As with all models in the Robe DL luminaire range, the multiple shadows normally associated with an LED source have been eliminated. The enhanced Robe RGBW LED light source reproduces both rich and pastel colors at output levels normally associated with 1 200 W discharge fixtures as well as pure whites at preselected 2 700, 3 200, 4 200, 5 600 and 8 000 kelvin color temperatures. The tungsten emulation function allows the fixture to be integrated seamlessly into lighting schemes with existing traditional lanterns.

NOTE: Optional Road Case Available

Robe DL4S Features:

  • Light source: 480 W RGBW LED engine
  • Light output: TBD / 6.320 lm
  • Zoom range: 10° - 45°
  • Effects: Rotating gobo wheel, animation wheel, framing shutters module

Robe DL4S Specifications:

  • Source:
    • Light source: 480 W RGBW LED engine
    • LED engine life expectancy: 20.000 hrs
  • Optical System:
    • Beam angle: 10°-45°
    • Color mixing mode: RGBW or CMY (8 or 16bit) + variable CTO
  • Electromechanical Effects:
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" metal gobos + open
    • Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +- 45°
    • Animation wheel: Aluminium
    • Iris: Motorized, stepless, pulse effects up to 3 Hz
    • Prism: 3-facet 11° prism rotating in both directions at different speeds
    • Frost filter: Separate, variable
    • Motorized zoom: 10° (gobo position) - 45° (free hole)
    • Focus: Motorized
    • Pan: 540°
    • Tilt: 280°
  • Control and Programming:
    • User Interface: Color Touch Screen - ROBE Navigation System 2 (RNS2), battery backup
    • Protocols: DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
    • DMX modes (channels): 47, 38, 36
    • Wireless DMX version: Lumen CRMX™ as optional accessory
    • Programs: 3-editable, each up to 100 steps
    • Stand-alone operation: Yes
    • Pan/Tilt resolution: 8 or 16 bit
    • Movement control: Tracking and vector
    • Rotating gobo wheel positioning: 8 bit
    • Gobo indexing & rotation: 8 or 16 bit
    • Pre-programmed 237 colors including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
    • Tungsten lamp emulation: Whites 2.700 K and 3.200 K
    • CTO filter: Variable
    • Color rainbow effect: Variable speed
    • Color mixing (Internal 18 bit): 8 or 16 bit
    • Framing shutters system: 8 bit
    • Animation wheel : 8 bit
    • Iris: 8 or 16 bit
    • Frost: 8 bit
    • Zoom: 8 or 16 bit
    • Focus: 8 or 16 bit
    • Dimmer (Internal 18 bit): 8 or 16 bit
    • Strobe effect: Variable speed, 20 flashes per second max.
    • Data in/out: Locking 3-pin & 5-pin XLR, RJ45
    • Power connection: Neutrik PowerCon (cable supplied)
    • Built-in analyser for easy fault finding
  • Rotating Gobos:
    • Outside diameter: 26.9 mm
    • Image diameter: 22.5 mm
    • Thickness: 0.25 mm
    • Max. Thickness: 4.0 mm
    • Material: High temperature borofloat
  • Effect Wheel:
    • Aluminium Animation wheel
    • Can be used alone or in combination with rotating gobos
    • Rotating in both directions, variable speed
  • Framing Shutters System:
    • 4 Blades, each with separate movement and rotation control
    • Smooth blade movements, variable speed
    • Ultra fast blade movement for creating mid-air effects
    • Pre-programmed shape and blade sequences
    • +- 45° rotation of the complete Framing system
  • Thermal Specification:
    • Maximum ambient temperature: 104°F (45°C)
    • Maximum surface temperature: 194°F (90°C)
  • Electrical Specification:
    • Supply input: 100-240 V, 50-60 Hz auto-ranging
    • Power consumption: 550 W max. (Typical 160-215 W - one colorfull)
  • Mechanical Specification:
    • Dimensions (HxWxD): 26.7" x 15.3" x 18.9" (678 x 388 x 480 mm)
    • Weight: 22.7 kg (48.5 lbs)
  • Rigging:
    • Mounting points: 2 pairs of 1-turn locks
    • 2x Omega brackets with 1-turn quick locks
    • Pan and Tilt transport locks
