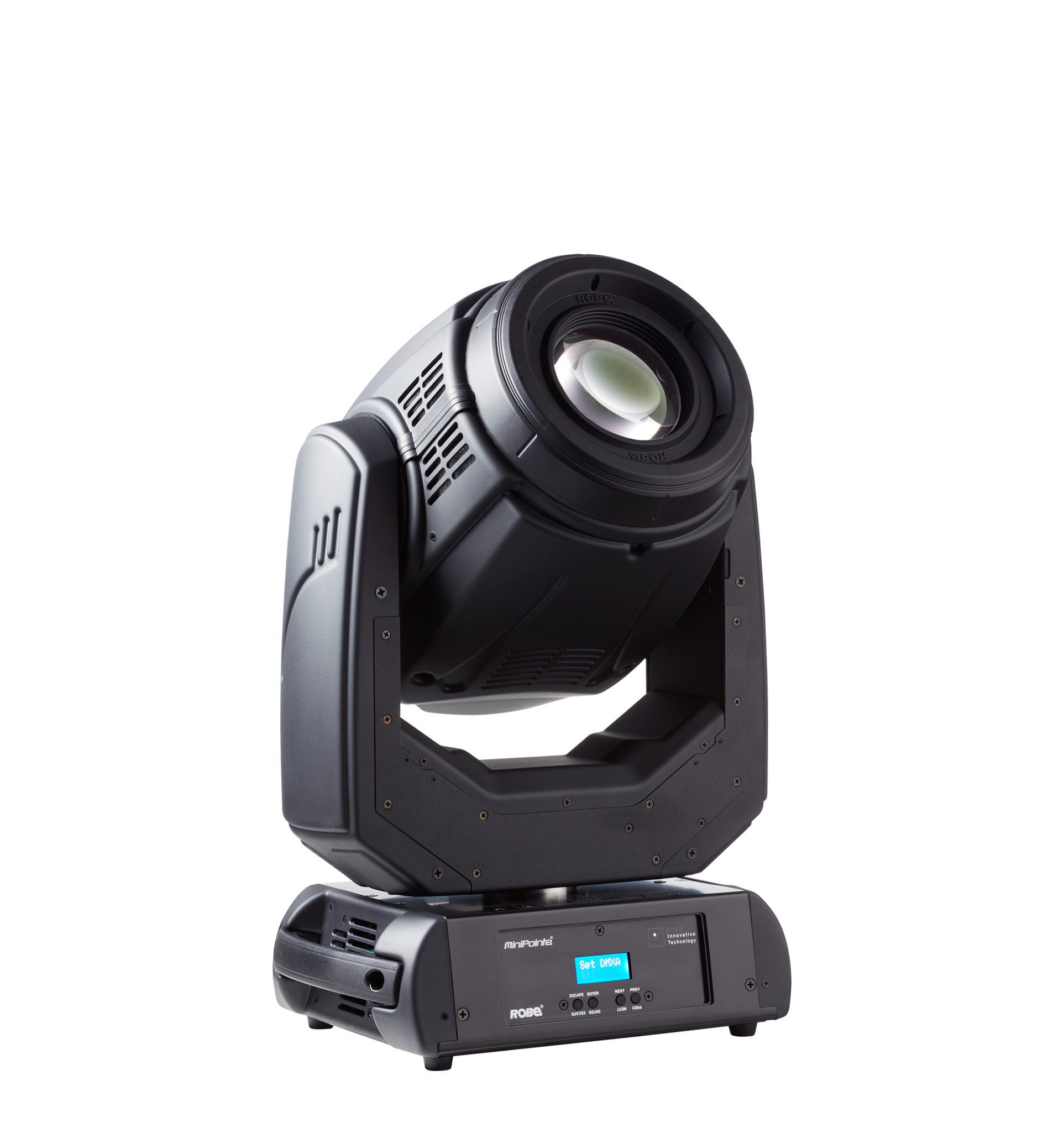

Robe Lighting, Inc miniPointe
Moving Head Beam Fixture


The Robe miniPointe® is a tiny agile air cutter specifically designed to produce sharp beam and aerial effects especially in venues constrained by size.
Learn More
Our Price: $2,586.75
List Price: $3,449.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Robe Lighting, Inc miniPointe
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Robe miniPointe® is a tiny agile air cutter specifically designed to produce sharp beam and aerial effects especially in venues constrained by size.

Striking bright 0° parallel beams with glowing colors and static gobo wheel patterns can be multiplied by innovative Dynamic Flower Effect – DFE™ producing various different shapes of flower beams DFE™ dynamically changing in the air. Fine tuned short arc of the Osram Sirius HRI 140 W RO lamp and optimized optical system pushes with ease through haze and fog. Smooth variable frost filter and and any one of the 13 rich colors is instantly ready to create a smooth instantly ready to create smooth even wash, extending the feature set of this petite but powerful Beam, Wash and Effect fixture.

NOTE: Optional Road Case Available

Robe miniPointe® Features:

  • Light source: Osram Sirius HRI 140 W RO
  • Light output: 4.960 lm, 400.000 lux @ 5m
  • Zoom range: 3° fixed beam
  • Effects: static gobo wheel, Dynamic Flower Effect, Beam Shaper

Robe miniPointe® Specifications:

  • Source:
    • Lamp: Discharge short arc lamp with integrated reflector
    • Approved model: Osram Sirius HRI 140 W RO
    • Life time : 6.000 hours
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical system:
    • Light output: 400,000 lx @ 5 m distance
    • Dichroic glass reflector integrated with the lamp for maximising the light efficiency
  • Beam angle:
    • 3° - on full open/hole
    • 0.7°/1.2°/1.8° with beam reducer
  • Electromechanical Effects:
    • Color wheel: 13 dichroic filters + white
    • Static Gobo wheel: 10 gobos + 3 beam reducers
    • DFE™ – Dynamic Flower Effect – creating spectacular beam effects in the air which can change shape, size and speed of rotation (patent pending)
    • Frost effect: Separate, variable
    • Beam Shaper: Variable shape, indexable and rotatable
    • Dimmer: smooth dimming
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Motorized focus
    • Pan: 540°
    • Tilt: 270°
  • Control and Programming:
    • Setting & Addressing: two-row LCD display & 4 control buttons
    • Protocols: USITT DMX-512, RDM
    • Optional wireless external module available: CRMX™ technology from Lumen Radio
    • Control channels: 22, 17, 27
    • 3 DMX protocol modes
    • 3-editable programs, each up to 40 steps
    • Stand-alone operation
    • Pan/Tilt resolution: 16 bit
    • Movement control: Tracking and vector
    • Color wheel positioning: 8 or 16 bit
    • Static gobo wheel positioning: 8 bitt
    • Prism indexing & rotation: 8 bit
    • Frost: 8 bit
    • Focus: 8 or 16 bit
    • Dimmer: 8 or 16 bit
    • Data in/out: 5-pin XLR
    • Power in/out: Neutrik PowerCon
    • Built-in analyser for easy fault finding
  • Static – Beam Gobos:
    • Aluminium gobo wheel - thickness: 0.5 mm, gobo image diameter: 6.8 mm
  • Thermal:
    • Maximum ambient temperature: 104°F (45°C)
    • Maximum surface temperature: 167°F (75°C)
  • Electrical Specification:
    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 260 W at 230 V / 50 Hz
  • Mechanical Specification:
    • Dimensions (HxWxD): 19.9" x 12.5" x 8" (480 x 317 x 204 mm)
    • Weight: 11.8 kg (26 lbs)
    • Fixation option: Pan/Tilt-lock mechanism
  • Rigging:
    • Mounting points: 2 pairs of ¼-turn locks
    • 2 x Omega brackets with ¼-turn quick locks
  • Optional accessories:
    • Wireless DMX module
    • Line Cords PowerCon In
    • Line Cords PowerCon In/Out
