Datavideo Corporation SE-2850-12
HD/SD 12-Channel Video Switcher

OUR PART #:  SE-2850-12

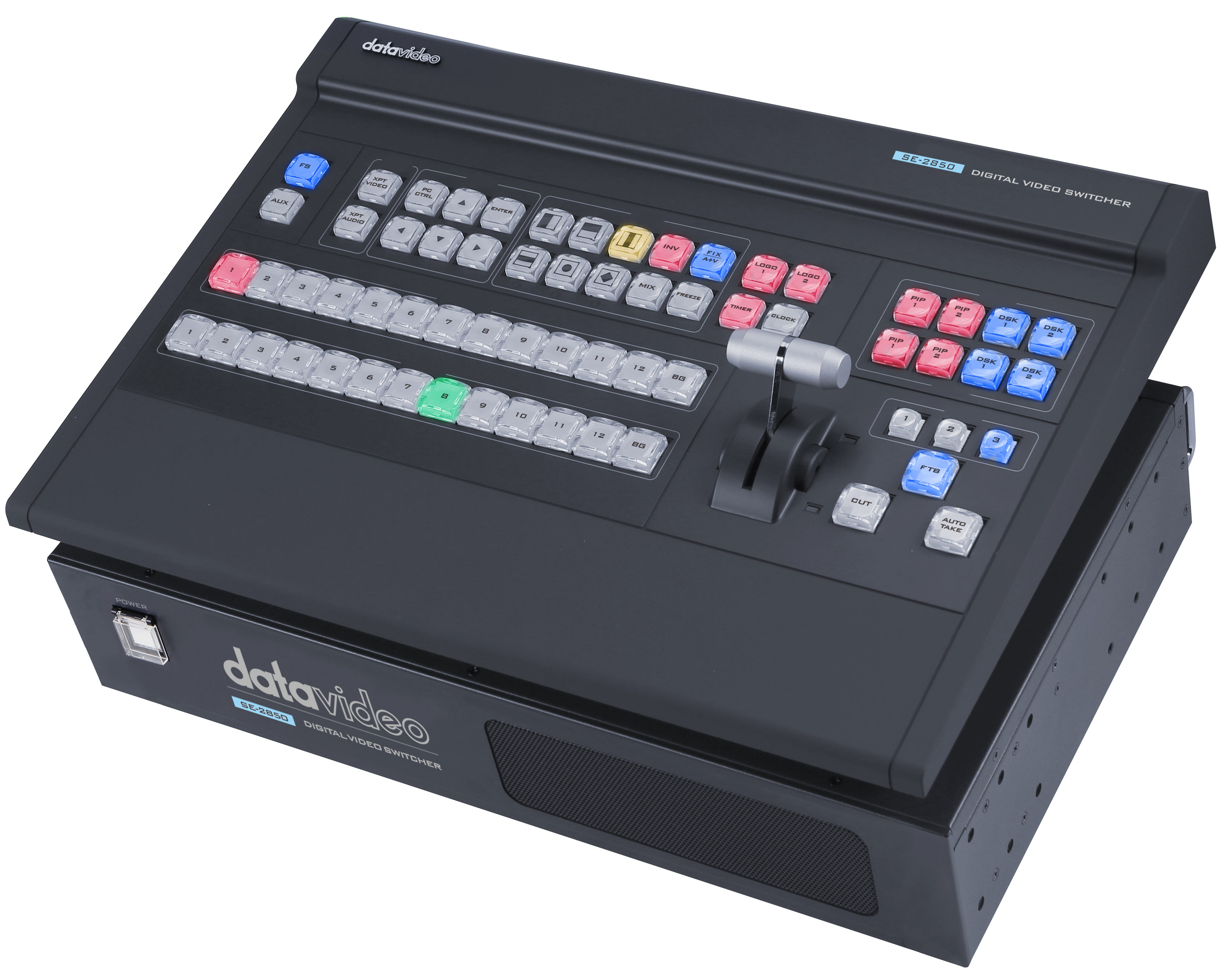

The Datavideo Corporation SE-2850-12 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs.
Learn More
Our Price: $4,999.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation SE-2850-12
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Datavideo Corporation SE-2850-12 is a multi-definition switcher designed for productions requiring 12 channels of HD or SD inputs. Being one of Datavideo’s most flexible switcher solutions, the SE-2850 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for every live production, giving producers the opportunity to output graphics with rich, visually appealing programming.

The SE-2850’s audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850 also features all channel audio de-embedding and audio delay, and four dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850 can switch between up to 12 audio sources.

In addition to producing superb 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2850 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems.

NOTE: See Attached for Product Specifications

Datavideo Corporation SE-2850-12 Includes:

  • 1x SE-2850 Main Unit
  • 1x SE-2850 Control Board
  • 1x AD Switch DC 12V with AC Cord
  • 1x DB9P TO DB9P Cable
  • 1x CB-41 / XLR to XLR Cable
  • 2x Extra button cap for wipe
  • 12x Screw
  • 2x 2U Ear Rack
  • 1x Thank You Card

Datavideo Corporation SE-2850-12 Features:

  • Supports 12 HD or SD Inputs in a variety of configurations:
    • HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI
    • SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
  • 6 user-defined output options on 4 SDI output channels
  • User defined and positioned dual PIP
  • Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel
  • Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems
  • Two independent LOGOS
  • Frame Store (FS) source for each input channel
  • Real-time clock featuring HH:MM:SS on the multi-screen
  • Count down counter MM:SS
  • User defined wipe buttons - choice of 17 wipes with optional border
  • Support XPT cross point: XPT Video and XPT Audio
  • Audio delay for each de-embedded audio source
  • Two Audio output modes (Selectable on OSD):
    • “External analog Audio” - output SDI embedded audio is two stereo pairs from 4 analog audio inputs
    • “Audio Pass Through”- output SDI embedded audio is internal digital stereo pair
  • Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above Separate, rack mountable processing unit
  • Two GPI modes: Level / Pulse trigger selectable
