Belden 1266A-U1000-WHITE
1000 ft of 22 AWG Single-Pair Shielded Wire in White

OUR PART #:  1266A-U1000-WHITE

Belden's 1266A is an audio cable with one pair of 22 AWG stranded (7x30) tinned copper conductors.
Learn More
Our Price: $135.13
List Price: $243.26
You save 44%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Belden 1266A-U1000-WHITE
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

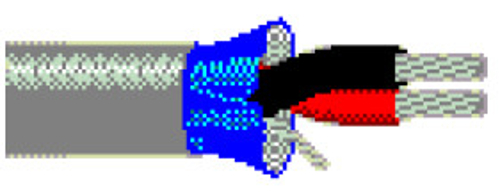

Belden's 1266A is an audio cable with one pair of 22 AWG stranded (7x30) tinned copper conductors. The cable also features polypropylene insulation, an overall Beldfoil® shield (100% coverage), 24 AWG stranded TC drain wire, and a PVC jacket.

Belden 1266A Specifications:

Physical Characteristics (Overall):

  • Conductor:
    • AWG:
      • Number of Pairs: 1
      • AWG: 22
      • Stranding: 7x30
      • Conductor Material: TC - Tinned Copper
    • Total Number of Conductors: 2
  • Insulation:
    • Insulation Material: Polypropylene
    • Wall Thickness: 0.254 mm
  • Outer Shield:
    • Outer Shield Material:
      • Outer Shield Trade Name: Beldfoil
      • Type: Tape
      • Outer Shield Material: Aluminum Foil-Polyester Tape
      • Coverage: 100%
    • Outer Shield Drain Wire AWG:
      • AWG: 24
      • Stranding: 7x32
      • Drain Wire Conductor Material: TC - Tinned Copper
  • Outer Jacket:
    • Outer Jacket Material:
      • Outer Jacket Material: PVC - Polyvinyl Chloride
      • Nom. Wall Thickness: 0.508 mm
  • Overall Cable Nominal Diameter: 3.632 mm
  • Pair Color Code Chart:
    • #1: Black & Red

Mechanical Characteristics (Overall):

  • Operating Temperature Range: -20°C to +60°C
  • UL Temperature Rating: 60°C
  • Bulk Cable Weight: 20.835 kg/km
  • Max. Recommended Pulling Tension: 111.205 N
  • Min. Bend Radius/Minor Axis: 38.100 mm
