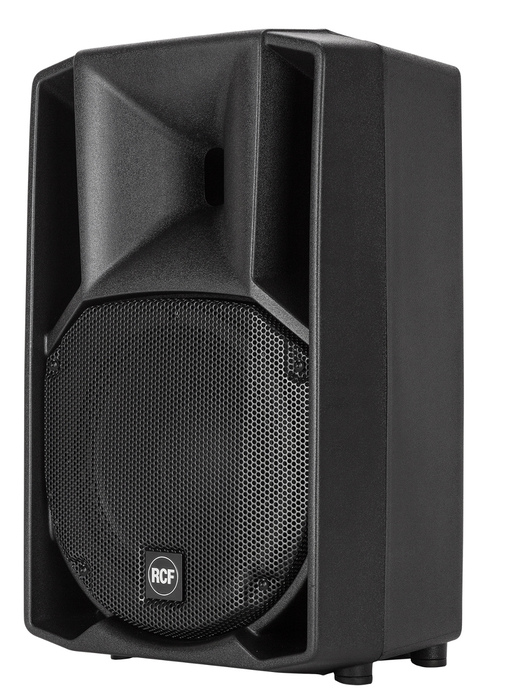

RCF ART 710A-MK4 10" Active Coaxial Loudspeaker, 1400W

The RCF ART 710-A MK4 is an active 2-way speaker, 1400W. ART 710-A MK4 is a unique product in its category. The compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 10” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and speaker protections.

Applications:

• Compact live sound reinforcement
• Portable PA
• Frontfill and sidefill
• Auditorium, Clubs, Ballroom, Corporate AV, Theatre

Features:

• 129dB Max SPL
• 1400 WATT 2-way peak power
• Innovative DSP Processing
• 1" Compression Driver, 1.75" v.c.
• 10" Woofer
• 90° x 70°, wide dispersion constant directivity horn
• FiRPHASE Technology

Specifications:

• Acoustic
  • Frequency Response (@ -3dB): 50Hz - 20000Hz
  • Max SPL: 129dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 70°
  • Compression Driver: 1.0", 1.75" v.c.
  • Woofer: 10", 2.5" v.c.
• Input/Output
  • Input signal: bal / unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: -2dBu / +4dBu
• Processor Section
  • Crossover frequencies: 1600Hz
  • Protections: Thermal, rms
  • Limiter: Soft limiter
  • Controls: Volume, Boost, Mic/Line
• Physical
  • Dimensions (HxWxD): 21.6" x 13.3" x 12.0" (548 x 340 x 305 mm)
  • Net Weight: 31.75lbs (14.4kg)
