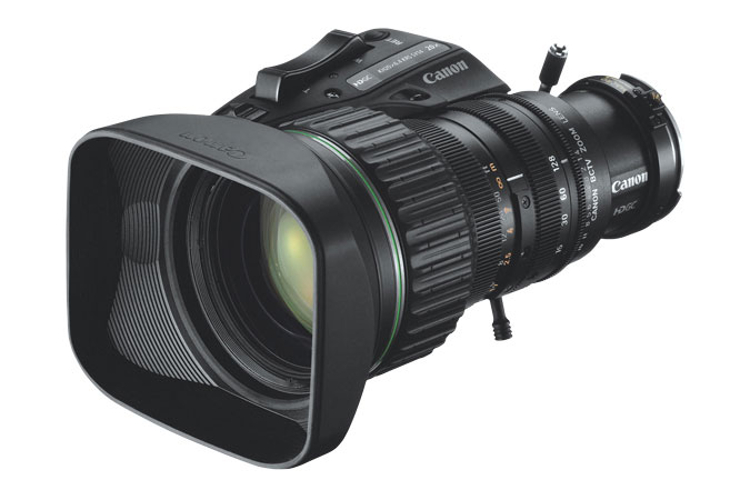

Canon KH20X6.4-KTS
20x 1/2" HDTV Broadcast Lens, 6.4-128mm

OUR PART #:  KH20X6.4-KTS

Canon's KH20x6.4 KTS is a cost-effective new long focal length remote control portable 1/2" HDTV lens offered by Canon.
Learn More

Call for price! Not available online.
List Price: $10,800.00

Similar Products

Canon's KH20x6.4 KTS is a cost-effective new long focal length remote control portable 1/2" HDTV lens offered by Canon. This particular lens is intended for end users having as their foremost priority an HD acquisition system of modest cost - to support a diversity of broadcast, professional, business and industrial remote control applications. This lens is intended to work in conjunction with the new 1/2" image format HDTV cameras that are emerging as low-cost HD acquisition systems for a number of special applications.

The KH20x6.4 KTS has an excellent sensitivity of f 1.4 over a 20x zoom range (falling modestly to f 2.0 at full telephoto). It has a generous 57.1° horizontal field of view and weighs in a low 2.8 lbs. This lens is anticipated to be a superb workhorse that can address a wide range of remote control projects.

The design optimization strategies sought a balanced MTF profile over the entire image plane at an F4.0 aperture setting. Relative light distribution was optimized for F2.8 and above and this uniformity of brightness across the image plane combines with the high contrast and excellent picture sharpness to produce vividly clear HD pictures. Contrast was extended by superb control of black reproduction - with optical and mechanical design innovations that substantially reduced flare, veiling glare, and any internal reflections. Similar attention to minimization of ghost images and other highlight-related chromatic distortions caused by strong light sources on-axis and off-axis further extend the operational contrast range of the lens.

Canon KH20x6.4 KTS Features:

  • Optical Technologies
  • Internal Focus
  • Control Technologies
  • Advanced Drive technology
  • Mechanical Technologies
  • Ecological Design

Canon KH20x6.4 KTS Specifications:

  • Product:
    • Product Category: Remote Control Lens
    • Product Series: KH 20x6.4 KTS
    • Application: Broadcast
  • Image Composition:
    • Object Image Format: 1/2"
    • Aspect Ratio: 16:9
    • Object Image size: 6.97 mm (H) x 3.92 mm (V)
    • Zoom Ratio: 20x
    • Focal Length Range with Extender: 6.4~128mm
    • Angular Field of View:
      • At 6.4mm 57.1° (H) x 34.1° (V)
      • At 128mm 3.1° (H) x 1.8° (V)
  • Scene Composition:
    • MOD From Front of Lens: 0.9 Meter (10mm with Macro)
    • Scene Object Dimensions at MOD:
      • at 6.4mm 89.8 cm x 50.5 cm
      • at 128mm 4.6 cm x 2.6 cm
    • Physical Attributes:
      • Dimensions (WxHxL): 6.4" x 4.1" x 7.2" (163.3 x 103.0 x 182.5mm)
      • Weight: 2.8lbs (1.27kg)
