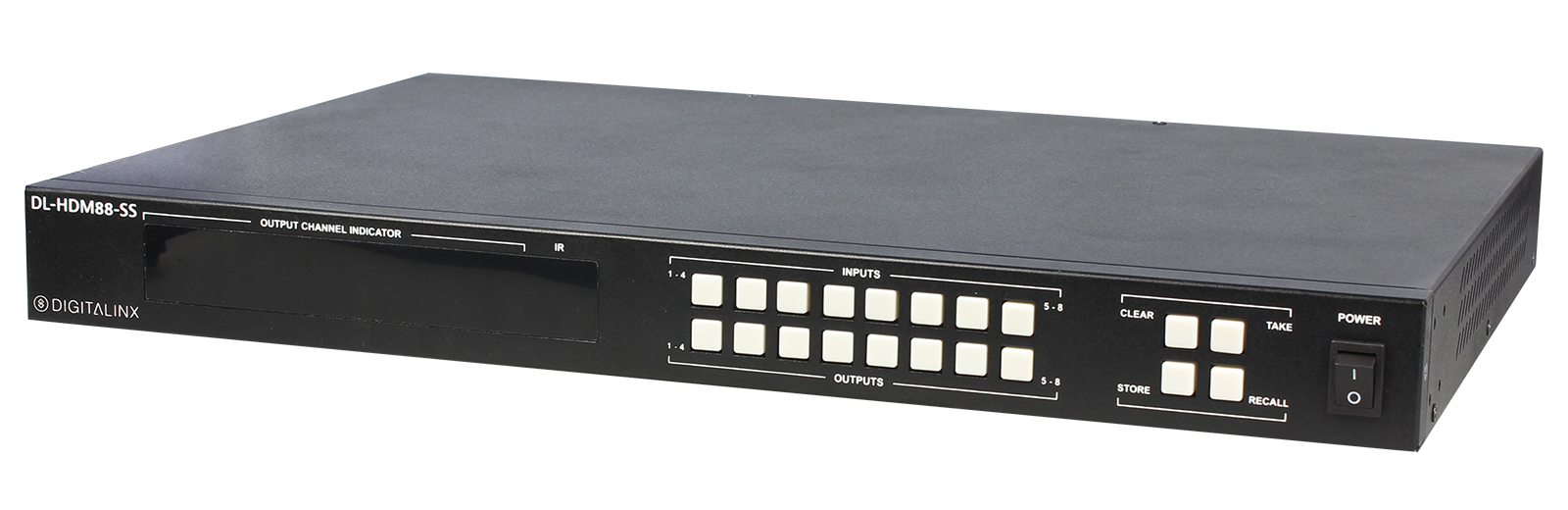

Liberty AV Solutions DL-HDM88-SS
8x8 HDMI Matrix HDMI 2.0, 4K60 4:4:4, HDCP 2.2 Compliant


Our Price: $1,619.96
List Price: $1,799.95
You save 10%!
Write the first review.
Liberty AV Solutions DL-HDM88-SS
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The DigitaLinx DL-HDM88-SS from Liberty AV is an eight input by eight output HDMI matrix switcher with HDCP 2.2 and a full-loading capability 4K@ 60Hz 4:4:4 with HDR output support for each channel. The matrix features advanced independent DIP switch for EDID management. The DL-HDM88-SS offers HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.

The DL-HDM88-SS can be controlled via front panel buttons, front panel IR, external IR, remote IR, RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. The matrix also features a full command set for RS232 and Ethernet control with third party control systems, plus control via a web browser.

Liberty AV DL-HDM88-SS Includes:

  • 8x8 HDMI Matrix Switcher
  • Installation Guide
  • IR Remote
  • IR Receiver
  • Rack Mounting Ears with Screws
  • US Power Cable
  • USB to UART Cable

Liberty AV DL-HDM88-SS Features:

  • 8x8 HDMI matrix switching
  • 4K, HDMI 2.0, HDCP 2.2 compliant
  • Built-in EDID management
  • Front panel, IR, RS232, and Ethernet control
  • Built-in webserver control
  • 1 RU design

Liberty AV DL-HDM88-SS Specifications:

  • Input/Output Connections:
    • HDMI Inputs: Eight (8) HDMI Type A Receptacle
    • HDMI Outputs: Eight (8) HDMI Type A Receptacle
    • IR All In: One (1) 3.5mm TRS
    • TCP/IP: One (1) 8P8C Port (Shielded RJ45 Female)
    • RS232: One (1) DB9 Port Female
    • Power: One (1) IEC C14
  • Supported Audio, Video, and Embedded Control:
    • Video Resolutions:
      • Up to 4K@ 60Hz 4:4:4 8 bit
      • Color Depth: 1080p 48bit / 4K 24bit
    • Maximum Passive HDMI Cable Distance: 4.92 ft / 1.5 meters for 4k60 signals
    • Video Compliance: HDMI 2.0 and HDCP 2.2
    • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Embedded RS232 Baud Rate: 9600 baud
  • Device Control Parameters:
    • IR Carrier Frequency Range: 33-55kHz at 5 volts
    • Ethernet: 100BaseT
    • RS232 Baud Rate: 9600 baud
  • Chassis and Environmental:
    • Enclosure: Painted Aluminum
    • Dimensions (H x W x D): 1.69 in x 17.20 in x 11.77 in (43 mm x 437 mm x 299 mm) – 1 RU
    • Shipping Weight: 9.30 lbs (4.22kg)
    • Operating Temperature: +32° to +113° F (0° to +45° C)
    • Operating Humidity: 10% to 90%, Non-condensing
    • Storage Temperature: -4° to +140° F (-20° to +70° C)
    • Storage Humidity: 10% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • Power Supply: 100V-240VAC / 50-60 Hz
    • Power Consumption: 45W (Max.)
    • ESD Protection: 8kV air, 4kV contact
    • Product Regulatory: FCC, CE, RoHS
  • Other:
    • Standard Warranty: 2 years
    • Diagnostic Indicators: System LCD
