Blackmagic Design CINEURSAM40K/PL [RESTOCK ITEM]
URSA Mini 4K PL Camera

OUR PART #:  CINEURSAM40K/P-RST-1

NOTE: This is a RESTOCK item that has been refurbished by the manufacturer. Please contact your Sales Pro for more information on this and other products.
Learn More
Sale Price: $3,073.36
List Price: $3,495.00
You save 12%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design CINEURSAM40K/PL [RESTOCK ITEM]
Qty:
In Stock

Similar Products

NOTE: This is a RESTOCK item that has been refurbished by the manufacturer. Please contact your Sales Pro for more information on this and other products.

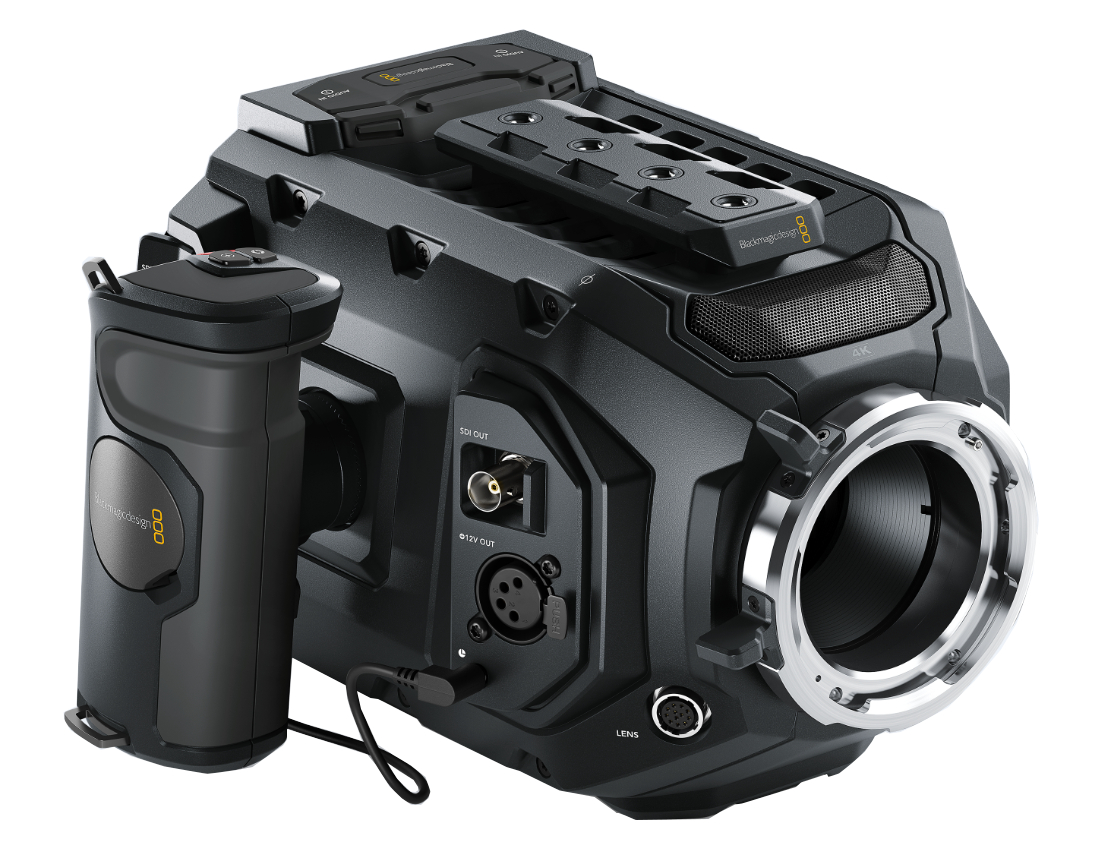

The Blackmagic Design CINEURSAM40K/PL URSA Mini camera with PL lens mount, 4K Super 35 image sensor and global shutter is lightweight and perfectly balanced for handheld use and comfortable enough for all day shooting. The URSA Mini 4K PL is compatible with feature film cinema lenses and features 12G-SDI output, 5” fold out touchscreen monitor and side grip with camera control functions as well as dual CFast card recorders, built in stereo microphones and more.

Blackmagic Design CINEURSAM40K/PL Includes:

  • Blackmagic URSA Mini 4.6K EF
  • Turret Dust Cap
  • Side Handle with LANC Cable and strap
  • Power supply
  • SD card with software and manual
  • DaVinci Resolve Studio USB dongle
  • Software Included:
    • DaVinci Resolve Studio grading software including Resolve USB dongle for Mac OS X and Windows
    • Blackmagic Media Express software
    • Blackmagic Disk Speed Test
    • Blackmagic Camera Setup

Blackmagic Design CINEURSAM40K/PL Features:

  • Highly customizable
  • Cinematic 4.6K sensor
  • HIgh frame rate recording
  • Stunnig ultra HD
  • Non-stop Recording
  • High resolutoin viewfinder
  • Touchscreen control
  • Professional connections
  • Advanced 12G-SDI
  • Professional audio
  • Embedded metadata
  • Flexible power

Blackmagic Design CINEURSAM40K/PL Specifications:

  • Camera Features:
    • Sensor Size: 22mm x 11.88mm (Super35).
    • Shooting Resolutions:
      • 4000 x 2160
      • 3840 x 2160
      • 1920 x 1080
    • Frame Rates: Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
    • Dynamic Range: 12 stops
    • Focus: Focus button turns on peaking, auto focus available using compatible lenses with servo focus via broadcast 12-pin connector
    • Iris Control: Iris button automatically adjusts the lens iris settings on compatible lenses via broadcast 12-pin connector so no pixel is clipped in film mode. Scene average auto exposure in video mode
    • Lens Mount: PL Mount
    • Screen Dimensions: 1 x 5” - 1920 x 1080
    • Screen Type: LCD capacitive touchscreen
    • Metadata Support: Automatic camera data and user data such as shot number, file names and keywords
    • Controls: Touchscreen menus on 5” screen. Push buttons for other controls. 2 assignable shortcut keys
    • Microphone: 2 x built in cardioid microphones for stereo recording with -15dB pad and low cut filter
    • Speaker: 1 x mono speaker, enabled in playback mode when headphones are not used
  • Storage Features:
    • Storage Rates:
      • 4000 x 2160
      • CinemaDNG RAW - 265 MB/s
      • CinemaDNG RAW 3:1 - 125 MB/s
      • 3840 x 2160
      • Apple ProRes 444 XQ - 250 MB/s
      • Apple ProRes 444 - 165 MB/s
      • Apple ProRes 422 HQ - 110 MB/s
      • Apple ProRes 422 - 73.6 MB/s
      • Apple ProRes 422 LT - 51 MB/s
      • Apple ProRes Proxy - 22.4 MB/s
      • 1920 x 1080
      • Apple ProRes 444 XQ - 62.5 MB/s
      • Apple ProRes 444 - 41.25 MB/s
      • Apple ProRes 422 HQ - 27.5 MB/s
      • Apple ProRes 422 - 18.4 MB/s
      • Apple ProRes 422 LT - 12.75 MB/s
      • Apple ProRes Proxy - 5.6 MB/s
      • Storage rates based on 30 frames per second.
    • Storage Type: 2 x CFast 2.0
  • Connections:
    • SDI Video Output:
      • 1 x 12G-SDI BNC 10-bit 4:2:2
      • 1 x 3G-SDI BNC 10-bit 4:2:2
    • SDI Video Input: 1 x 12G-SDI BNC 10-bit 4:2:2
    • Ref/ Timecode Input: 1 x BNC reference or timecode input with automatic detection
    • Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support.
    • SDI Audio Output: 2 channel
    • Headphones: 3.5mm stereo headphone jack
    • Lens Connector: Hirose 12-pin
    • Remote Control: 2 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses
    • Computer Interface: USB 2.0 Mini-B port for software updates
  • Standards:
    • SDI Compliance: SMPTE 292M, SMPTE 424 Level B, Draft SMPTE 2081-1, Draft SMPTE 2082-1
    • SDI Audio Sampling: 48 kHz and 24 bit
  • Operating Systems:
    • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
    • Windows 8.1 or Windows 10
  • Power Requrements:
    • External Power Input:
      • 1 x 4-pin XLR port for external power or battery use
      • 1 x 12-pin molex connector on rear battery plate
      • Custom V-mount battery plate with D-tap +12V regulated output from camera
    • External Power Output:
      • 1 x 12V output using 4-pin XLR for powering external accessories such as EVF
      • 1 x 12V regulated output from rear molex 12-way connector
    • Power: Rear camera mount compatible with industry standard V-mount or Gold Mount battery plates
  • Physical Specifications:

  • Environmental Specifications:
    • Operating Temperature: 32° to 104° F (0° to 40° C)
    • Storage Temperature: -4° to 113° F (-20° to 45° C)
    • Relative Humidity: 0% to 90% non-condensing
  • Product Warranty: 12 Month Limited Manufacturer's Warranty
