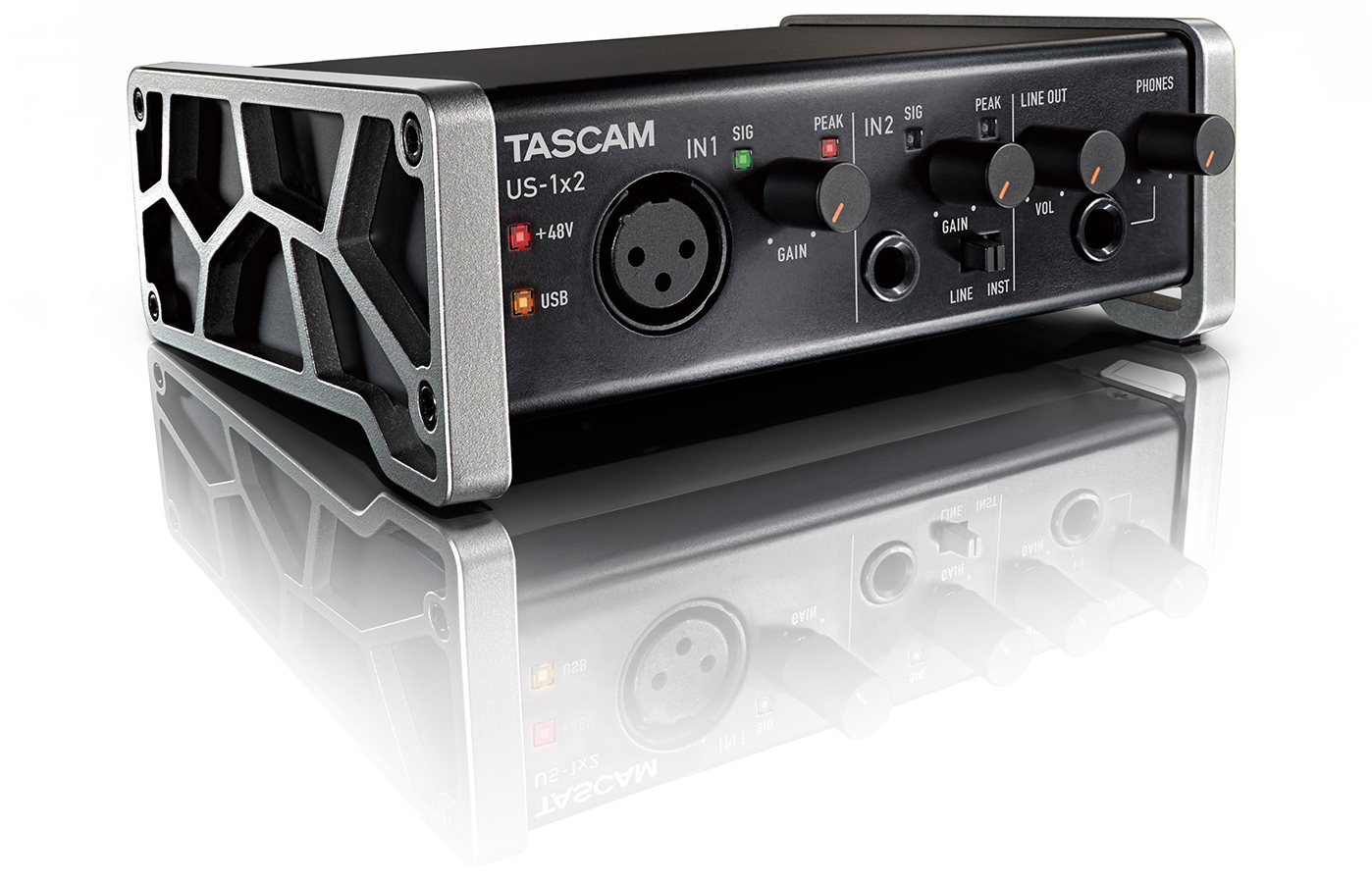

Tascam US-1x2
2 In - 2 Out USB Audio Interface

OUR PART #:  US1X2

The US-1x2 from TASCAM is a 2-in/2-out audio interface with the most compact body among US series.
Learn More
Our Price: $99.99
List Price: $149.99
You save 33%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tascam US-1x2
Qty:
In Stock

Similar Products

The US-1x2 from TASCAM is a 2-in/2-out audio interface with the most compact body among US series. With this model you can fine-select IN/OUT with high audio quality, all within the compact body of this unit. These qualities make it great for RCA line input and output as well as mic/guitar direct input. Among the TASCAM audio interface series, the most simple and compact-designed model for music production is the US-1x2. The iXR, which utilized with the Apple iPad for music production, the US-366 which built with an emphasis on multi-functionality and diversity, and then there is the MiNiSTUDIO series that specializes on the online broadcast.

The US-1x2/US-2x2/US-4x4 is a streamlined product that has been designed to meet requirements for musicians who want to start recording on their computers. This is an audio interface where you can enjoy professional sound quality without specialist knowledge of recording equipment. All in all, The US-1x2 is also the most basic but perfect model designed for users who only requires one mic or uses playback mix like EDM music.

The most important feature is the low noise Ultra-HDDA microphone pre-amplifiers which enhance the microphone signals. Regardless of the condenser or dynamic microphone you are using, you can record with high-quality sound at the correct input level. The addional features are selected by specialists, it allows the simple usability and is dedicated to musicians for their music productions. So even if you are new to an audio interface, you still can start your music production with high sound quality right away.

As well as great input capacity, it has same concept audio circuit as the upper range models which reachs up to 100 dB of S/N ratio. The US-1x2 is more than versatile enough to handle not only for music listening but also music recording, monitoring, and archiving, with cristal-clear sound quality. If you want to use an audio interface, with a computer connection and optimum settings, you need to update your firmware and driver constantly. The US-1x2 dedicated software has Information Window function/automatic updating that enables you to confirm the latest updates and offers a automatic installation for you. It is no longer necessary to check the latest updates manually.

Other than sound quality, the simplicity of design on the US-1x2 is also relavant for home recording musicians. It is designed by Axel Hartman, an famous synsesizer designer. An design concept that combines functionality and the looks will surely inspires creativity on the desktop. For any musician who wants to start a recording right away. We have the solution for you. There is DAW software bundled in the product for music production. You can start your music production immediately without paying extras for a DAW to start.

TASCAM US-1x2 Features:

  • Ultra-HDDA (High Definition Discrete Architecture) mic preamps with -125dBu EIN
  • Up to 96kHz/24-bit recording
  • Support for Windows and Macintosh
  • USB 2.0 computer connection
  • Connect with iPads and other iOS devices
  • +48V phantom power for all inputs
  • High-impedance input available
  • Input level specifications boast a range of 57 dB forusing dynamic mics
  • Direct monitoring function for zero-latency monitoring
  • Tough all-metal casing for durability
  • Angled design provides excellent usability on a desktop
  • Balanced analog RCA stereo line output jacks suitable for connection to powered monitors
  • Standard TRS headphones output jack
  • Separate controls for line and headphones output volumes
  • Input sound monitoring can be set to stereo or mono
  • Input muting function eliminates noise from unused inputs
  • Information window function with the latest information
  • Automatic update and automatic installation function to update the software and firmware automatically
  • USB class compliant 2.0 support
  • DAW License card included
  • Confirmed operation with major DAW software(SONAR,ProTools, Cubase, Live, Studio One, Garage Band)
  • USB bus-powered for mobile recording
  • RoHS supported

TASCAM US-1x2 Specifications:

  • Sampling frequency: 44.1k/48k/88.2k/96k Hz
  • Quantization bit rate: 16/24bit
  • Analog audio inputs:
    • MIC IN (IN 1):
      • Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
      • Input impedance: 2.4k ohms
    • Nominal input level:
      • GAIN:MAX -65dBu (0.0004Vrms)
      • GAIN:MIN -8dBu (0.3090Vrms)
    • Maximum input level: +8dBu (1.9467Vrms)
    • Gain: 57dB
  • LINE/INST IN (IN 2):
    • LINE IN:
      • Connector: 6.3mm (1/4") TRS-jack (T:HOT, R:COLD, S:GND), BALANCED (* When set to "LINE" at LINE/INST switch)
      • Input impedance: 10k ohms
      • Nominal input level:
      • GAIN:MAX -41dBu(0.0069Vrms)
      • GAIN:MIN +4dBu(1.228Vrms)
    • Maximum input level: +20dBu(7.75Vrms)
    • Gain: 57dB
  • INST IN:
    • Connector: 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED (* When set to "INST" at LINE/INST switch)
    • Input impedance: 1M ohms
    • Nominal input level:
      • GAIN:MAX -58dBV(0.0013Vrms)
      • GAIN:MIN -13dBV(0.2239Vrms)
    • Maximum input level: +3dBV(1.1425Vrms)
    • Gain: 57dB
  • LINE L/R IN:
    • Connector: RCA pin-jack, UNBALANCED
    • Input impedance: 10k ohms
    • Maximum input level: +6dBV(1.9953Vrms)
  • Analog audio outputs:
    • LINE OUT:
      • Connector: RCA pin-jack, UNBALANCED
      • Output impedance: 100 ohms
      • Maximum output level: +6dBV (1.995Vrms)
    • PHONES:
      • Connector: 6.3mm(1/4") stereo phone jack
      • Maximum output level: 18mW+18mW or more (THD+N 0.1% or less, 32ohms loaded)
    • Control IN / OUT:
      • USB:
        • Connector: USB B type 4-pin
        • Format: USB2.0 HIGH SPEED
        • DC IN 5V:
        • Connector: USB Micro B type
  • Power:
    • When connected PC: USB bus powered
    • When connected iOS: AC Adapter (TASCAM PS-P520, sold separately)
    • Power consumption: 2.5W
  • Dimensions (W x H x D): 5.74 x 2.17 x 4.72 in (146 ×55 × 120mm)
  • Weight: 1.37 lbs (623g)
  • Operating temperature: 41 to 95°F (5 to 35°C)
  • Accessories: USB cable (1.5m), Installation manual, User's manual, warranty card
  • Audio performance:
    • Frequency response:
      • IN 1/IN 2 to LINE OUT L-R:
      • 44.1k/48k Hz: 20Hz to 20kHz, +0dB/-0.5dB(JEITA)
      • 88.2k/96k Hz: 20Hz to 40kHz, +0dB/-1.0dB(JEITA)
    • PHONES:
      • 44.1k/48k Hz: 20Hz to 20kHz, +0dB/-1.0dB(JEITA)
      • 88.2k/96k Hz: 20Hz to 40kHz, +0dB/-3.0dB(JEITA)
    • THD: 0.006% or less
    • S/N ratio: 100dB or more
    • Crosstalk: 95dB or more
    • EIN: -127dBu or less
  • Computer system requirements:
    • Windows:
      • Compatible computers: Windows-compatible computer with a USB 2.0 port
      • CPU type/speed: Dual core/2GHz or more(x86)
      • Memory: 2GB or more
      • DRIVER: ASIO2.0, WDM
    • Mac:
      • Compatible computers: Mac with a USB 2.0 port
      • CPU type/speed: Dual core/2GHz or more(x86)
      • Memory: 2GB or more
      • DRIVER: Core Audio
    • iOS:
      • DRIVER: Core Audio for iPhone
  • Supported Os' (PC):
    • Windows:
      • Windows 10 (November Update) , Windows 8.1 , Windows 8 , Windows 7
    • Mac:
      • macOS Sierra? (10.12) , OS X El Capitan (10.11) , OS X Yosemite (10.10)
    • iOS:
      • iOS 10 , iOS 9 , iOS 8 , iOS 7
