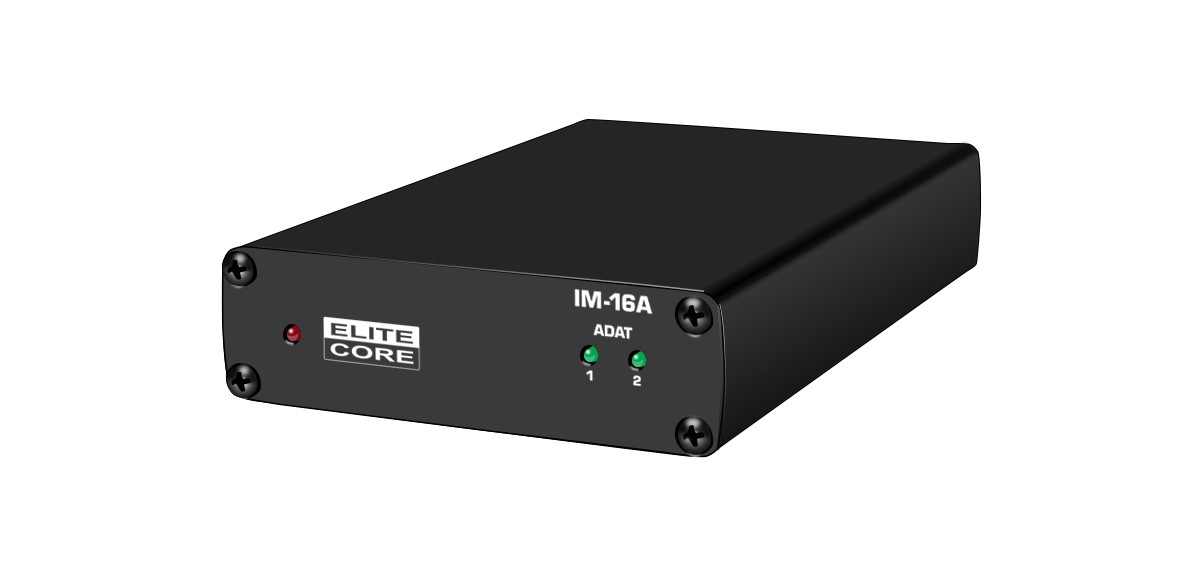

Elite Core IM-16A-CORE-DIGITAL 16-Channel ADAT Interface Module for PM-16 Systems

A 16-channel ADAT to PM-16 Interface, the Elite Core Audio IM-16A is used to convert signals from ADAT optical sources such as mixing consoles, microphone preamps, Analog to Digital converters, and DAW interfaces for use by the PM-16 system. The data received by the (2) 8-channel ADAT optical inputs are combined and sent to the audio network as a single 16-channel Elite Core PM-16 data stream.

Elite Core Audio IM-16A Features:

• 2 x ADAT Optical Inputs
• Network Out feeds PM-16 Systems
• Word Clock Sync
• Rugged aluminum chassis with black anodized finish
• Power from external 48VDC supply or PoE (802.3af)
• Made in the USA

Elite Core Audio IM-16A Specifications:

• Manufacturer #: IM-16A-CORE-DIGITAL
• Dimensions: 1.2" x 4.06" x 6.64"
• Power: 802.3af PoE or 48VDC/.63A Adapter
• Sampling Frequency: 48 kHz
• Audio Data Format: 24-bit
• Connectors:
  • RJ45 Network Connector
  • 2 x ADAT Optical Connectors
• Network: Ethernet 10/100 network interface
