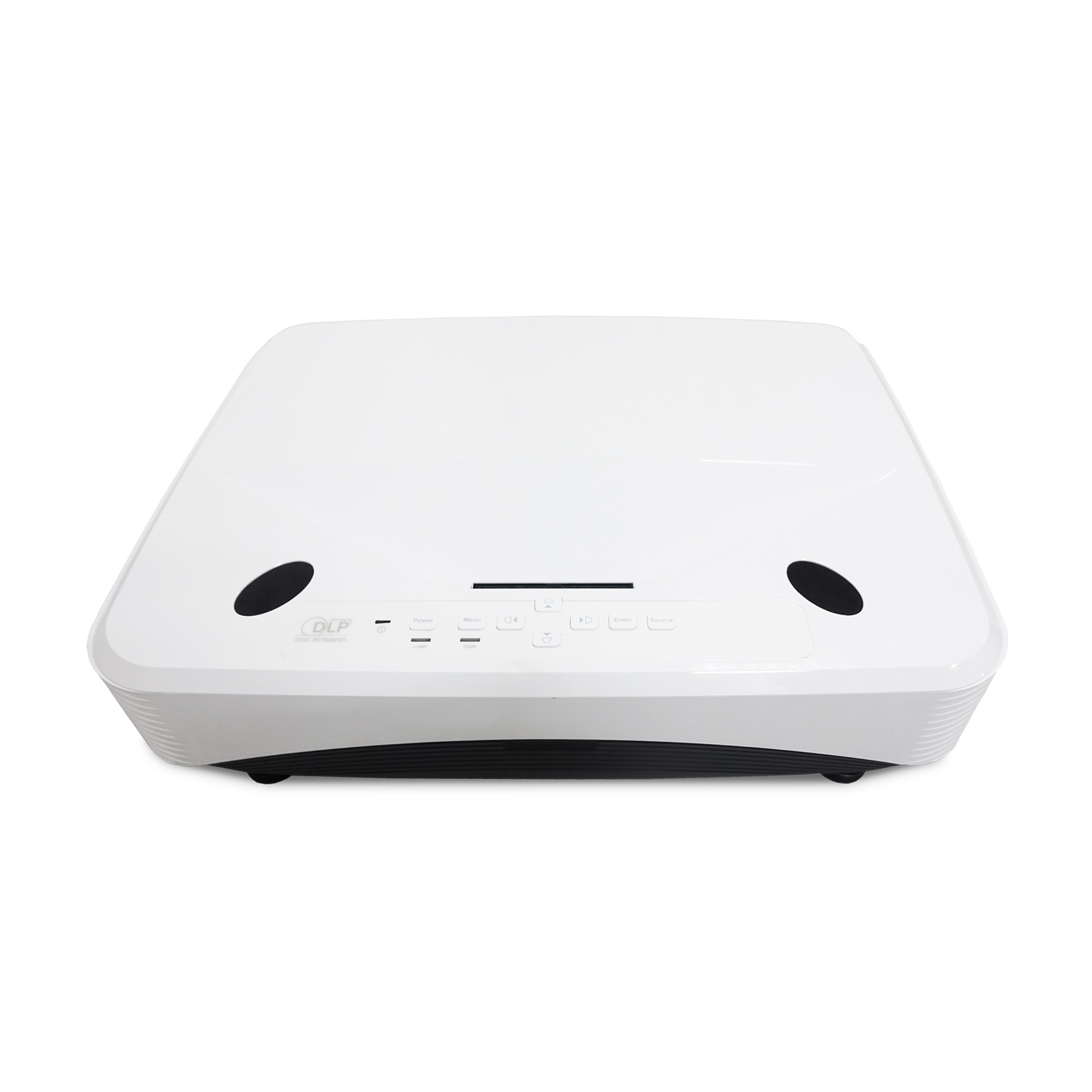

Vivitek DH765ZUST
3500lm 1080p DLP UIltra Short Throw Laser Projector


The Vivitek DH765Z-UST redefines ultra-short throw projection from performance and value perspectives by delivering large, readable images virtually shadow-free.
Learn More

Call for price! Not available online.

Similar Products

The Vivitek DH765Z-UST redefines ultra-short throw projection from performance and value perspectives by delivering large, readable images virtually shadow-free. Ideal for education, corporate collaboration, themed entertainment and digital signage, the DH765Z-UST’s low profile design, quietness, and minimal maintenance requirements ensure seamless installation and ease of operation.

To make the user experience even more engaging, Vivitek’s NovoPRO solution can be added for full wireless connectivity and collaboration for up to 64 users in the room. NovoPRO is designed to ensure a top quality wireless experience to accommodate today’s popular Bring Your Own Device (BYOD) concept. NovoPRO ensures cross OS platform compatibility at a price-performance point that makes it easily affordable for any meeting room, boardroom or workspace.

For usage within a digital signage environment, pair the DH765Z-UST projector with NovoDS Digital Signage system. Simplicity and ease of use make NovoDS the new standard in single or enterprise-wide digital signage deployment.

Vivitek DH765Z-UST Includes:

  • Remote Control with Batteries
  • User Manual CD
  • Quick Start Guide
  • Warranty Card
  • VGA Cable

Vivitek DH765Z-UST Features:

  • Laser Phosphor Light engine provides up to 20,000 hrs and a low cost of ownership and ease of operation
  • Quietest laser projector in its class at 28/31 dB
  • Ultra-short throw lens of 0.24:1 projects a large image size – up to 150” diagonal
  • Low profile design
  • Education warranty available

Vivitek DH765Z-UST Specifications:

  • Display Type: Single Chip 0.65" DLP Technology by TI
  • Brightness: 3,500 ANSI Lumens
  • Native Resolution: 1080p (1920 x 1080)
  • Maximum Resolution: VGA (64 x 480) to WUXGA (1920 x 1200)
  • Contrast Ratio: 12,000:1
  • Lamp Life and Type: Up to 20,000 Hours, Laser Light Engine
  • Image Size (Diagonal): 80-150” Diagonal
  • Aspect Ratio: Native 16:9
  • Lens Shift: No
  • Zoom Ratio: Fixed
  • Throw Ratio: 0.23:1
  • Keystone Correction: 2D, Vertical and Horizontal ±30°; Auto Vertical
  • Horizontal Frequency: 15 K, 102 KHz
  • Vertical Scan Rate: 23-120 Hz
  • Operating Temp.: 0°-40°C
  • HDTV Compatibility: 480i, 480p, 576i, 567p, 720p, 1080i, 1080p
  • Video Compatibility: NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p 60Hz)
  • I/O Connection Ports: HDMI wi th MHL, HDMI, Composite Video (in RCA), S-Video (in Mini DIN 4pin), Audio in (Mini Jack),
  • Audio L/R (RCA x2), Audio Ou t (Mini Jack), LAN RJ45, RS232 (DB-9pin), USB (Type Mini B), Compu ter in (D-sub 15pin), Monitor Out (D-sub 15pin)
  • Security Solutions: Kensington® Security Slot, Security Bar, Keypad Lock
  • Dimensions (WxDxH): 18” x 14.8” x 5.2” (456 x 376 x 132 mm)
  • Weight: 23.1 lbs (10.5 kg)
  • Available Colors: White
  • Noise Level: 31 dB / 28 dB (Normal / Economy Mode)
  • Power: Supply and Cons.: AC 100-240V, 50/60 Hz; AC 100-240 V, 50/60 Hz
  • Instant on/off: Yes
  • Speaker: 10W x1
