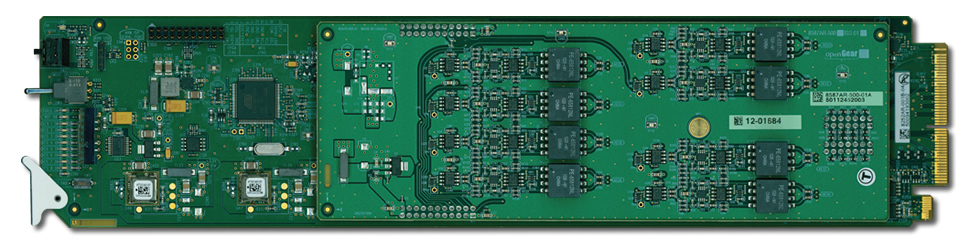

Ross Video DMX-8259-B-R2B 3G/HD/SD 8-Channel AES/EBU De-Embedder with Rear Module

The Ross Video Ltd. DMX-8259-B-R2B is a rear module for DMX-8259-B AES/EBU audio de-embedder. The -R2 rear module occupies 2 slots in the OG3-FR platform and supports 1 openGear® card. The -R2 rear module is used for solutions that require access to the full I/O connections.

The DMX-8259-B is a high quality program audio de-embedder capable of de-embedding up to 8 AES / EBU pairs (16 audio channels) from a 3G / HD / SD SDI signal. Audio proc amp control on each channel allows for audio processing with gain of ±20db, audio delay up to 1 second and channel invert.

The DMX-8259-B supports full channel assignment to the discrete outputs. Various configuration options, including internally generated patterns and tones, are available for audio and video output scenarios should a loss of input occur.

The DMX-8259-B features 8 AES 110O unbalanced outputs.

Ross Video Ltd. DMX-8259-B-R2B Features:

• 16 channel audio de-embedding for all popular 3G / HD / SD SDI formats
• Audio proc amp controls; gain, invert, and delay
• Assign any embedded channel to any discrete audio output
• Ability to re-map channels in embedded video stream
• Programmable video output on SDI input loss
• Silence output on loss of audio input
• Programmable silence detection and timeout thresholds
• Balanced 110O AES outputs
• No audio breakout cables required
• 5-year transferable warranty
• Power: 8.5 watts
