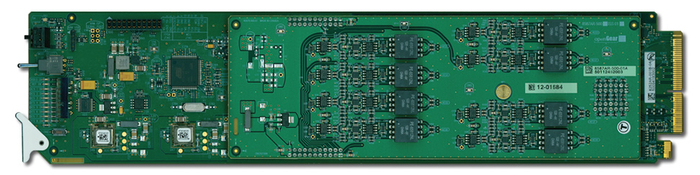

Ross Video Ltd MUX-8258-B-R2B
SDI 8 channel AES/EBU Multiplexer with WESC/BNC Rear Module

OUR PART #:  MUX-8258-B-R2B

The Ross Video Ltd. MUX-8258-B-R2B is a high quality program audio embedder capable of embedding up to 8 AES / EBU pairs (16 audio channels) into an 3G / HD / SD SDI signal.
Learn More
Our Price: $1,439.04
List Price: $1,499.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ross Video Ltd MUX-8258-B-R2B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Ross Video Ltd. MUX-8258-B-R2B is a high quality program audio embedder capable of embedding up to 8 AES / EBU pairs (16 audio channels) into an 3G / HD / SD SDI signal. Audio proc amp control on each input allows for audio processing with independent channel sample rate conversions, gain of ┬▒20dB, audio delay up to 1 second and channel phase invert and summing capability.

The MUX-8258-B-R2B is extremely flexible in handling channel assignments and channel re-mapping as well as fully configurable append and overwrite capability for existing channels. Various configuration options are available for backup scenarios should a loss of input occur.

The MUX-8258-B-R2B features 8 AES 110O balanced inputs.

Ross Video Ltd. MUX-8258-B-R2B Features:

  • 16 discrete channel audio embedding for all popular 3G / HD / SD SDI formats
  • Audio proc amp controls; gain, invert, delay and sum, sample rate conversion
  • Full control over channel assignments, primary and backup sources
  • Configurable overwrite and append capability for existing embedded audio
  • Programmable video output on SDI input loss
  • Backup audio insertion on audio input loss
  • Programmable silence detection and timeout thresholds
  • Balanced 110O AES inputs
  • No audio breakout cables required
  • 5-year transferable warranty
  • Power: 8.5 watts
