Vaddio PCC MatrixMIX Live Production Controller

NOTE: This product is currently available for pre-order ONLY. Placing a pre-order ensures that you will receive your unit as soon as it's available. Please contact your Sales Pro for more information.

Vaddio's PCC MatrixMIX Live Production Controller is designed for use with the AV Bridge MatrixMIX AV Switcher. The PCC MatrixMIX integrates video switching, camera control, and graphics mixing into a single ergonomic user interface.

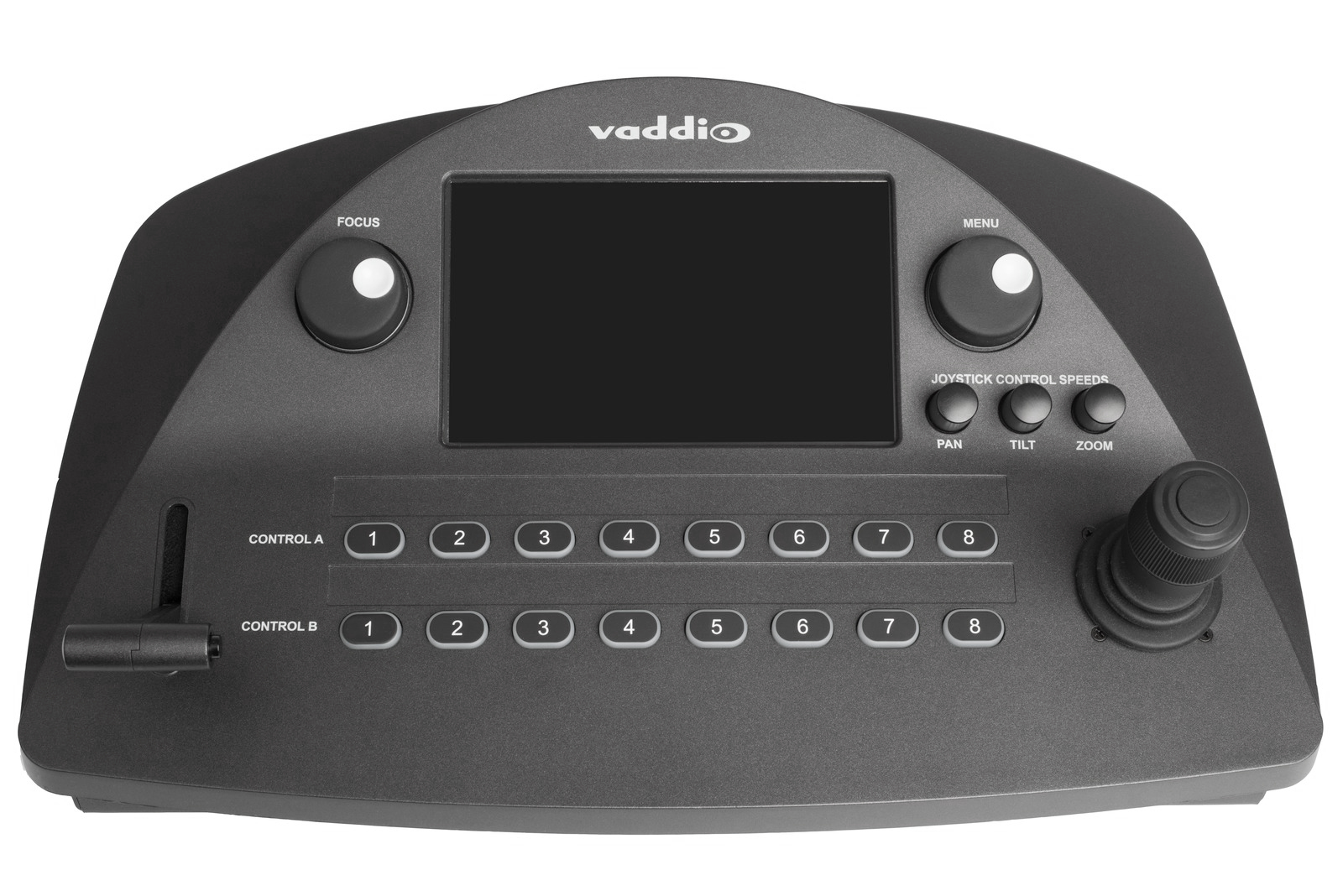

The PCC MatrixMIX is equipped with precision controls for the most demanding camera operation environments. It has a full color touchscreen interface for easy-to-find camera functions, pan, tilt and zoom speed control knobs, illuminated push buttons for camera selection, large focus knob for fine control with auto/manual toggle and a three-axis Hall-effect joystick for smooth precise camera movements. All of these controls are browser-based and available through an embedded web server for control anywhere.

This broadcast-quality joystick controller comes with full preset store and recall, CCU functionality, and IP management for seamless control of any Vaddio RoboSHOT or ClearSHOT cameras –– from anywhere in the world. Whether you are creating a remote studio or state-of-the-art broadcast system, the PCC Premier is your solution to ultimate camera control.

Includes

• PCC MatrixMIX
• Mid-span PoE+ power injector with AC cord set(s)
• Cat-5e patch cable, 10 ft (3 m)
• Quick Start Guide

Features

• Easy-to-find camera functions, pan, tilt and zoom speed control knobs
• Illuminated push buttons for camera selection
• Large focus knob for fine control with auto/manual toggle and three-axis Hall-effect joystick
• Browser-based user interface for control anywhere

Specifications

• Camera Management and Video Output:
  • Control via IP Network:
    • Up to 80 cameras
    • 10 address book groups
  • Local Program Output: HDMI at resolutions up to full HD (1080p/60)
  • IP Streaming Decoder and Protocol: H.264, RTSP
  • Streaming Resolution: Up to full HD (1080p/60)
• Hardware:
  • Control console:
    • 7” capacitive touch panel display: Camera presets and administrative menu
    • Illuminated rotary knobs: Focus (control, auto/manual) and Menu (display panel navigation)
    • Rotary knobs: Pan, tilt, and zoom speed
    • Illuminated pushbuttons: Program and Preview camera selection
    • 3-axis Hall effect joystick, single-button: Pan, tilt, and zoom
  • System I/O:
  • Gigabit Ethernet port with PoE+ support
  • HDMI output
• Power, Physical and Environmental:
  • Power Requirements PoE+ (Power over Ethernet) Power Consumption < 25W
  • Dimensions (HxWxD: 5.125" x 17" x 11" (12.6 x 43.2 x 27.9 cm)
  • Operating humidity 20% to 80% RH
  • Storage temperature 23° to 140°F (-5° to +60° C)
  • Weight 7.2 lb (3.3 kg)
  • Storage humidity 20% to 80% RH
  • Operating temperature 32° to 104°F (0° to +40°C)
