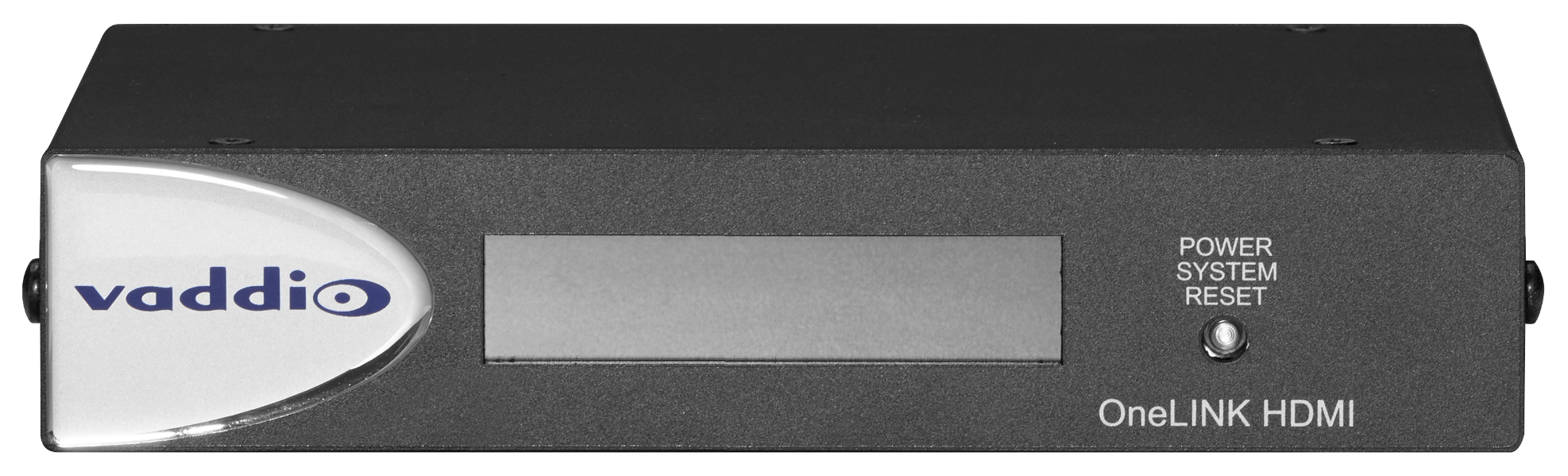

Vaddio 999-1105-043 OneLINK HDMI Extension for Vaddio HDBaseT Cameras

OUR PART #: ONELINK-HDBASET MFR #: 999-1105-043

Copied to clipboard

This OneLINK HDMI Receiver is designed for Vaddio HDBaseT cameras allowing for Power/Video/Control over a single Cat. 5 cable up to 100m (328'). ...Read more

Vaddio 999-1105-043 OneLINK HDMI Extension For Vaddio HDBaseT Cameras Image 1
Vaddio 999-1105-043 OneLINK HDMI Extension For Vaddio HDBaseT Cameras Image 2
Vaddio 999-1105-043 OneLINK HDMI Extension For Vaddio HDBaseT Cameras
Our Price: $1,504.80
List Price: $1,672.00
You save 10%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 19-21 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This OneLINK HDMI Receiver is designed for Vaddio HDBaseT cameras allowing for Power/Video/Control over a single Cat. 5 cable up to 100m (328'). This model has a compatible direct connection with RoboSHOT 20 UHD and RoboSHOT 12/30 HDBT cameras with the HDBaseT OneLINK port.

Includes

  • One (1) OneLINK HDMI Receiver
  • One (1) 48 VDC, 1.36 Amp power supply with AC cord set
  • Quick-Start Guide

Features

  • Video, power, network and control on a single Cat-5e (or better) cable
  • Distances up to 328 ft (100m) using Cat-5e cable
  • Bidirectional control via Ethernet and RS-232
  • Passes uncompressed HDMI video up to 2160p/29.97
  • Compatible Vaddio rack mounts are available

Specifications

  • Model Number: 999-1105-043
  • Height: 1.72" / 1U
  • Width: 8.375" / half-rack
  • Depth: 6"
  • Weight: 1.55 lbs
  • Operating Temperature: 32°F to 104°F
  • Operating Humidity: 20% to 80% RH (non-condensing)
  • Storage Temperature: 32°F to 104°F
  • Storage Humidity: 20% to 80% RH (non-condensing)
