Waves Platform M
Control Surface for eMotion LV1 by iCON


The Waves Platform M is a controller for eMotion LV1.
Learn More
Our Price: $349.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Waves Platform M
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

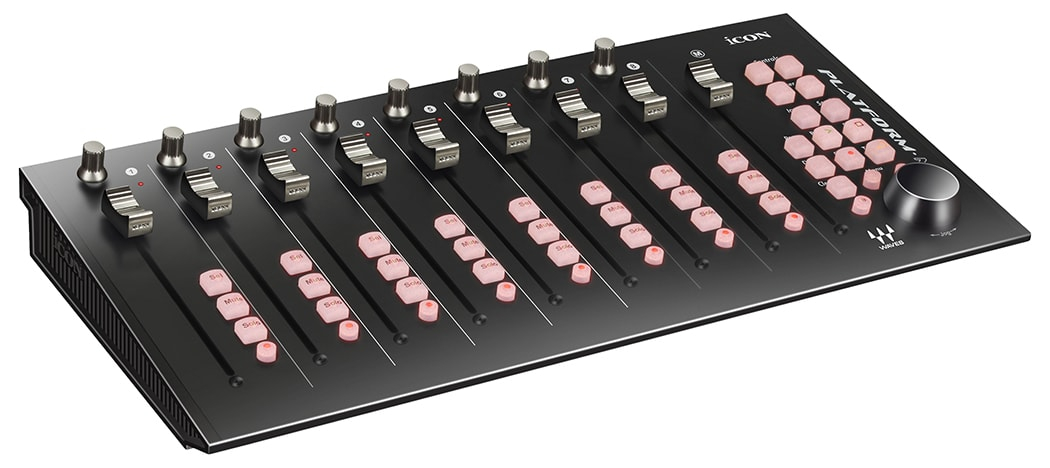

The Waves Platform M is a controller for eMotion LV1. It is versatile and compact enough to fit comfortably into any FOH, monitor, recording, or broadcast environment, Platform M lets you control customizable inputs, plugin settings, bus sends and more on your eMotion LV1 live mixer.

With an intuitive layout, Platform M gives you 8 full-sized motorized channel faders, 1 master fader, 8 rotary dual-function encoder knobs, illuminated channel and configuration buttons, a touch-and-turn jog wheel for fast control of any parameter, and access to your entire mix by banking across mixer layers.

Waves Platform M Features:

  • Extremely compact, durable, and versatile
  • Customize the perfect setup with a variety of platform extension modules
  • 8 touch-sensitive motorized channel faders with 10-bit resolution
  • 1 touch-sensitive motorized fader for the master channel, with 10-bit resolution
  • 8 dual-function encoder knobs (rotate and enter)
  • Jog wheel for assigned control and menu access.
  • Illuminated buttons for each channel, including Sel, Mute, Solo
  • 6 illuminated mode and function buttons
  • Illuminated menu buttons with two directional navigation keys (Left/Right and Up/Down), used in combination with the jog wheel
  • 4 illuminated buttons for shifting channel banks and control pages
  • Class-compliant with Windows XP, Vista (32-bit), Windows 7/8/10 (32-bit & 64-bit) Mac OS X (IntelMac)
  • USB 2.0 high-speed connectivity
  • Superior build quality and robust metal casing with Kensington lock port
  • 12V/2.5A power adapter included

Waves Platform M Specifications:

  • Connector: To computer USB connector
  • Power supply: 12V/2.5A DC
  • Current consumption: 2.0A or less
  • Weight: 1.765kg (3.89lb)
  • Dimensions (L x W x H): 395 x 196 x 58 mm (15.6 x 7.7 x 2.3”)
