Allen & Heath ZED-10 [RETURN/REFURB RESTOCK MODEL]
10-Channel Compact Mixer with USB Interface and 4 XLR Inputs

OUR PART #:  ZED10-B3

NOTE: This item has been returned by a customer and/or refurbished by the manufacturer. It may show signs of previous use.
Learn More
Our Price: $199.20
List Price: $299.00
You save 33%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath ZED-10 [RETURN/REFURB RESTOCK MODEL]
Qty:
In Stock
Similar Products

NOTE: This item has been returned by a customer and/or refurbished by the manufacturer. It may show signs of previous use. This item has been verified by the manufacturer to be re-issued at a discounted price. This item carries the full warranty from the manufacturer. Please contact your Sales Pro for more information on this and other products.

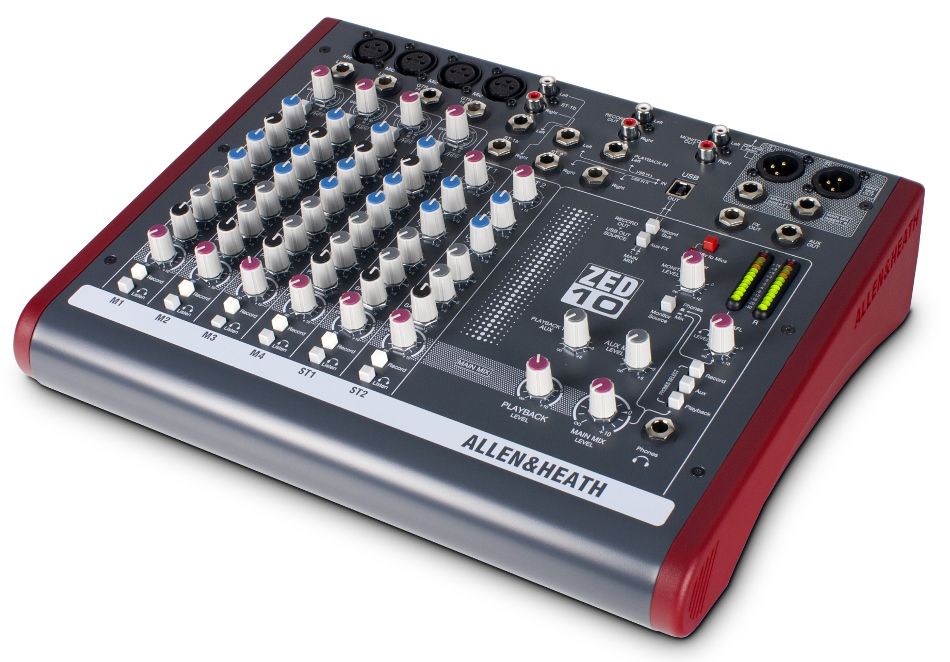

The Allen & Heath ZED-10 is a 10-channel compact mixer that is ultra-portable for carrying to the gig, and can be used for recording live or in the studio. It comes with configurable USB audio in/out making it easy to capture stereo recordings. Guitars can be plugged in directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. Equipped with professional XLR stereo outputs and a flexible monitoring section with headphone and speaker feed outputs.

Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way this has been implemented on ZED is super-flexible and super-easy! No longer do you need to fiddle around the back of your PC to get to the sound card inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and you are ready to go with CD quality audio to and from your PC or Mac. Switches and connection through jack socket terminals provide different send/return configurations:

  • Send Options:
    • Main Mix Left + Right (Post master level)
    • Aux + FX bux (Aux is a pre-fade send, FX is a post-fade send)
    • Record Bus Left + Right (Seperate stereo bus to Main Mix)
  • Return Options:
    • To Playback input (through jack socket break contacts)
    • To Stereo 2-channel (through jack socket break contacts)

The ZED-10 also features a responsive 3-band, swept mid frequency EQ design which utilises MusiQ – with optimised slope (or Q factor) for equalising individual instruments.

ZED-10’s pre-amps are similar in design to Allen & Heath's MixWizard range of mixers, but with a twist. Inputs 3 & 4 have a high impedance jack input capable of taking either a normal line level or a low level input from a guitar pickup. These newly designed inputs have been crafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pick-ups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain “Boost” switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.

Allen & Heath ZED-10 Features:

  • 4 mic/line inputs, 2 with Class A FET high impedance inputs
  • Neutrik mic XLR
  • Neutrik 1/4" jacks
  • 3 band EQ with MusiQ
  • 2 auxes
  • Sound image pan
  • Illuminated PFL indicator
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Responsive 3-band, swept mid EQ with MusiQ
  • 2 stereo sources with MP3 player compatibility
  • Separate 2-track record outputs
  • Stereo playback input for 2-track replay
  • XLR main stereo outputs with inserts
  • Comprehensive monitoring
  • Configurable USB stereo audio in/out
  • Stereo monitor outs
  • 48V microphone phantom power
  • DI level switching for sub mixing
