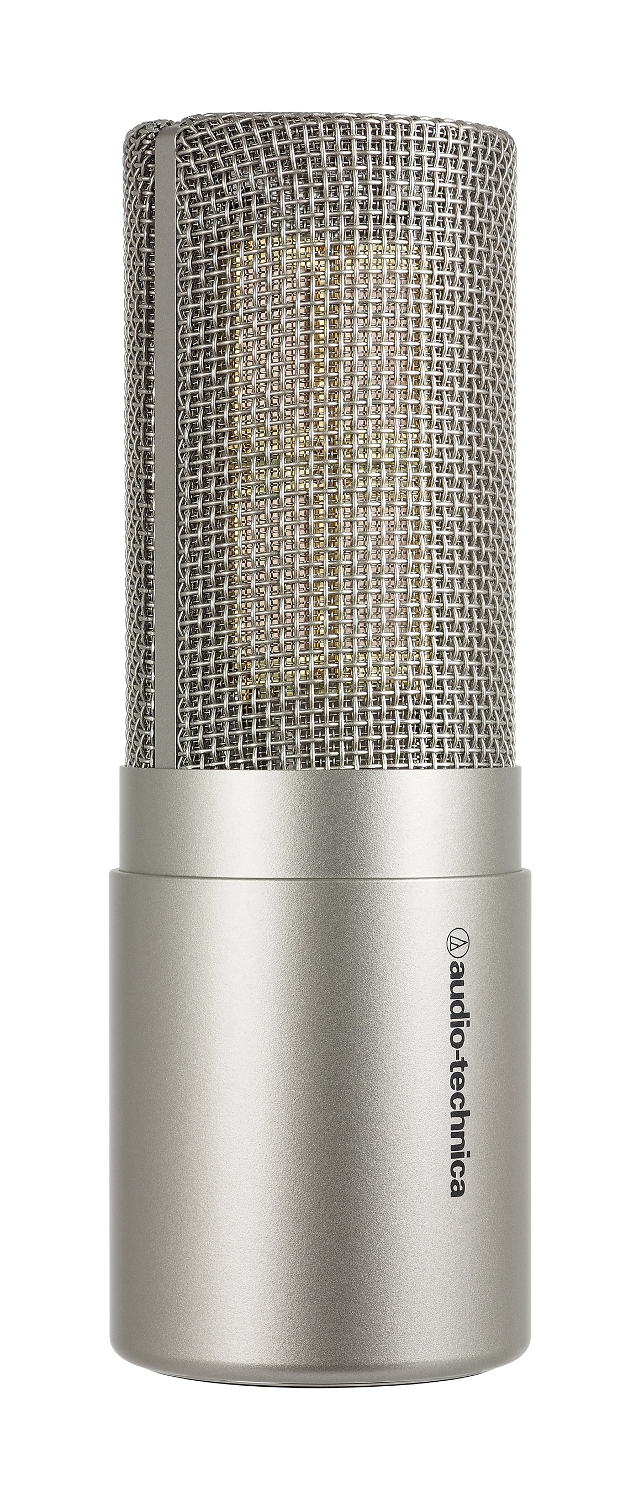

Audio-Technica AT5047
Cardioid Condenser Vocal Microphone

OUR PART #:  AT5047

The Audio-Technica AT5047 is a premier studio microphone that is equally at home with vocals and instruments.
Learn More
Our Price: $3,499.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica AT5047
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Audio-Technica AT5047 is a premier studio microphone that is equally at home with vocals and instruments. Boasting an exceptionally wide dynamic range – the greatest among all Audio-Technica microphones – the AT5047 captures the full, expressive character of a sound source, no matter how loud or how soft. And since it is equipped with a transformer-coupled output, the microphone maintains a constant load output impedance, even when capturing sources at extreme SPL, resulting in a stable relationship between the mic and a mic preamp or console input.

Audio-Technica AT5047 Features:

  • Exceptionally wide dynamic range captures the full, expressive character of instruments and voices – from the caress of drum brushes to powerful vocal performances
  • Four rectangular diaphragms (2 micron) function together to provide a combined surface area twice that of a standard one-inch circular diaphragm
  • Discrete components carefully selected and optimized for maximum performance and compatibility with standalone microphone preamps and console inputs
  • Transformer-coupled output provides smooth sonic character
  • Hand assembled and inspected for 100% quality control
  • Advanced internal shock mounting decouples the capsule from the microphone body
  • Elegant, durable housing of aluminum and brass
  • Included advanced-design custom AT8480 shock mount provides superior isolation
  • Custom hard-shell carrying case with die-cut foam compartments offersprotection during storage and transport

Audio-Technica AT5047 Specifications:

  • Element: Fixed-charge back plate, permanentlypolarized condenser
  • Polar Pattern: Cardioid
  • Frequency Response: 20 – 20,000 Hz
  • Open Circuit Sensitivity: -29 dB (35.5 mV) re 1V at 1Pa
  • Impedance: 150 ohms
  • Maximum Input Sound Level: 148 dB SPL, 1 kHz at 1%T.H.D.
  • Noise: 6 dB SPL
  • Dynamic Range (typical): 142 dB, 1 kHz at Max SPL
  • Signal-to-Noise Ratio: 88 dB, 1 kHz at 1 Pa
  • Phantom Power Requirements: 48V DC, 2.7 mA typical
  • Weight: 592 g (20.9 oz)
  • Dimensions: 165.3 mm (6.51'') long, 57.0 mm (2.24'')maximum body diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Accessories Furnished: AT8480 shock mount for ?"-27threaded stands; ?" to ?" stand adapter; protective carrying case
  • Audio-Technical Case Style: R10
