Kramer ADC-U31C/M2 USB 3.1 Type C to HDMI, USB 3.0 and PD

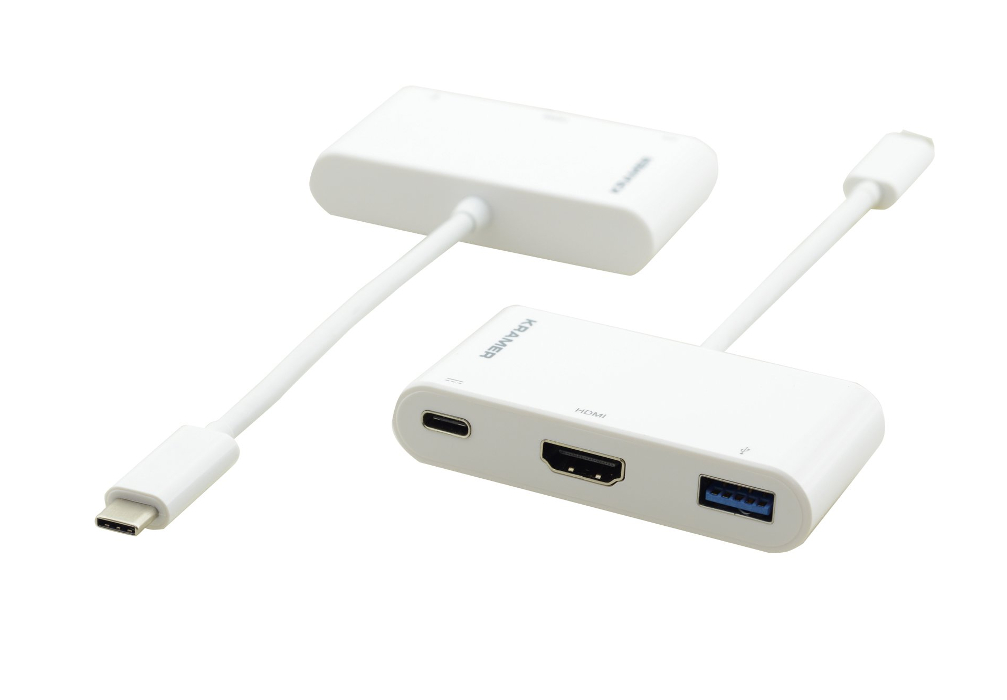

Kramer’s ADC-U31C/M2 is a USB 3.1 Type-C to multi-port adapter cable, supporting 4K@30Hz resolution on the HDMI video output to any HDMI display or projector. A USB 3.0 port is included to charge/sync your smartphone or connect other legacy devices such as an external USB hard drive or hub. The adapter also supports fast charging of your laptop thanks to pass-through power on the female PD (power delivery) USB-C port.

Kramer ADC-U31C/M2 Features:

• Max. Resolution: 4K@30Hz (4:4:4)
• Compatible with Windows & Mac
• Mirror or Extend a Computer Display Workspace
• Plug and Play Installation — No drivers required, bus powered
• Power: Supports fast laptop charging up to 60W (20V/3A)
• RoHS Compliant

Kramer ADC-U31C/M2 Specifications:

• Overall:
  • Max. Resolution: 4K@30Hz 4:4:4
  • Wide Screen Supported: Yes
• Physical:
  • Connector A: USB Type–C connector — male (input)
  • Connector B: 1 HDMI (female), 1 USB–C/PD (female), 1 USB 3.0 Type–A (female)
  • Sheath Material: PVC
  • Overall Sheath Diameter: 4.2±0.2mm
  • Outer Sheath Color: White
  • Product Length: 170±10mm
• Regulatory:
  • Standards Compliance: RoHS, CE, FCC

Note

NOTE: Your USB–C equipped device must support video (DP alt mode) to work with this adapter
