Atomos ATOMNJAIN1

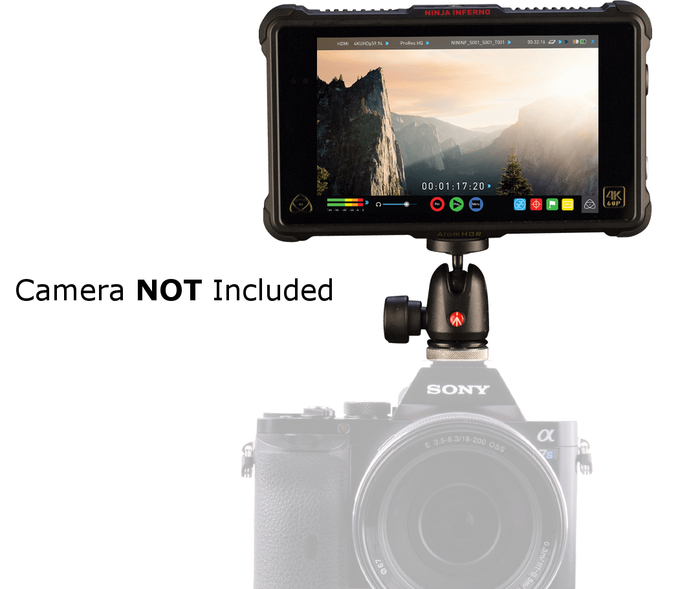

7" 4K HDMI Recording Monitor

OUR PART #:  ATOMNJAIN1

The Atomos ATOMNJAIN1 Ninja Inferno unlocks the professional capability of 4Kp60 10-bit cameras...
Learn More
Our Price: $995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Atomos ATOMNJAIN1
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atomos ATOMNJAIN1 Ninja Inferno unlocks the professional capability of 4Kp60 10-bit cameras, bypassing the internal recording limitations and taking full advantage of the sensor by recording to the camera's maximum color accuracy, color resolution and dynamic range. Monitor and Record HDR or REC709 up to 4:2:2 10-bit as log high bitrate Apple ProRes or Avid DNxHR.

Atomos Ninja Inferno Includes:

  • Ninja Inferno unit
  • Master Caddy II x 1
  • 12V-3A AC power supply

Atomos Ninja Inferno Features:

  • Latest Connectivity in a Rugged Design
  • Record the best image possible today, Assasinate MPEG
  • XLR for your DSLR
  • The Ultimate Monitor. Recording for free
  • HDR made simple, included for free
  • High Bright for Rec709 Outdoor shooting
  • Trust what you see: Calibrate for accurate color, Scopes for accurate exposure and focus
  • Playback review with Clients & Crew
  • Choose the SSD to suit your workflow

Atomos Ninja Inferno Specifications:

  • Weight:
    • Without batteries & media: 22.2oz (630g)
    • With batteries & media: 37.9oz (1074g)
  • Dimensions (WxHxD): 8.4" x 5" x 1.8” (214 x 127 x 45mm)
  • Construction: High quality lightweight ABS Polycarbonate for durability & portability; Built-in armor protection
  • Power:
    • Operating power: 10 - 33W
    • Compatible batteries: NP-F series and supporting accessories
    • Input voltage (battery): 6.2V to 16.8V
    • Battery time (based on 7.4V): -
    • 5200mAh: up to 1.5hrs (monitor & record 4K 30p)
    • 7800mAh: up to 2.2hrs (monitor & record 4K 30p)
    • DC In: 1 x DC in (6.2 - 16.8V)
    • Continuous power (* Patent pending): Primary-secondary battery system, Change batteries without losing power, Loop batteries continuously
  • Touchscreen:
    • Size: 7.1”
    • Resolution: 1920 x 1200
    • PPI: 325
    • Aspect ratio: 16:9 native
    • Color Gamut: REC709 HDTV
    • Look up table (LUT) support: 3D LUT (.cube format)
    • Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
    • Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit
  • HDR:
    • AtomHDR: Yes
    • Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm
    • Supported Gamuts:
      • Sony SGamut / SGamut3 / SGamut3.cine
      • Canon Cinema / BT2020 / DCI P3 / DCI P3+
      • Panasonic V Gamut
      • Arri Alexa Wide Gamut
    • Bit depth: 10-bit (8+2 FRC)
    • Brightness: 1500nit (+/- 10%)
    • HDR input (PQ/HLG): Yes / Yes
    • HDR output (PQ/HLG): Yes / Yes
  • Video input/loop out:
    • HDMI: 1 x HDMI (2.0)
    • SDI: -
    • Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)
  • Video output (play out):
    • HDMI: 1 x HDMI (2.0)
    • SDI: -
    • Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)
  • Supported loop out formats:
    • HDMI to HDMI:
      • 720p 50/60, 1080i 50/60
      • 1080p 24/25/30/50/60/100/120
      • 2160p 24/25/30/50/60
  • Supported Codecs & frame rates (record & playback):
    • Video to ProRes / DNxHR (DNx utilizes a .MOV wrapper):
      • Brand / Model / Codec: Refer camera compatibility list; atomos.com/cameras
        ProRes (HQ, 422, LT) DNxHR (HQX,HQ,SQ,LB)
      • Resolution / Framerate:
        • 4K DCI: 24/25/30/50/60p
        • 4K UHD: 24/25/30/50/60p
        • 2K: N/A
        • 1080p: 24/25/30/50/60/100^/120^ 1080i; 50/60i
        • 720p: 50/60p
  • Onboard processing:
    • Pulldown removal:
      • 24/25/30pSF > 24/25/30p (2:2 pulldown)
      • 60i > 24p (3:2 pulldown)
    • 4K UHD downscaling: Yes - Loop-out and playback
  • Audio in/out (48kHz PCM audio):
    • HDMI: 2 or 8ch 24-bit, camera dependent
    • Audio:
      • 2ch balanced XLR analog in/out
      • Dynamic range >90dB
      • Max signal level +24dBu
      • Max analog gain +52dB
      • 48V Phantom Power for Mic
  • Remote start/stop:
    • HDMI:
      • Auto HDMI Trigger
      • Supported Protocols: Canon, Sony, Atomos Open Standard
    • Other: LANC control - Slave
  • Playback:
    • Playlist / Genlock / LTC: Yes / No / No
    • CDNG (Recorded content): N/A
    • ProRes (Recorded content): All recorded files can playback. Playback in slow motion >= 100fps
    • DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion >= 100fps
  • Recording:
    • Pre-roll record: Yes (HD 8s, 4K 2s)
    • Custom timelapse: Yes
    • Meta data tagging: Yes (10 tags available)
    • Supported media: 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
    • Master caddy case: Master Caddy II (included) 75 x 105 x 12mm
    • Master caddy dock: 2.5” SATA to USB 2.0/3.0
    • Supported applications: Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
    • XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
    • Optional extras:
      • Accessory Kit: 2 x battery, 1 x charger, 1 x power supply, HPRC case, USB dock, control cable,
        Dtap cable, Master Caddy x 4, Power supply, Sun hood
      • Power Kit: 2 x battery, 1 x charger, 1 x power supply
      • Other: Atomos HDMI cable, X-Rite i1DisplayPro calibration

To be the first to review this item, click here.
