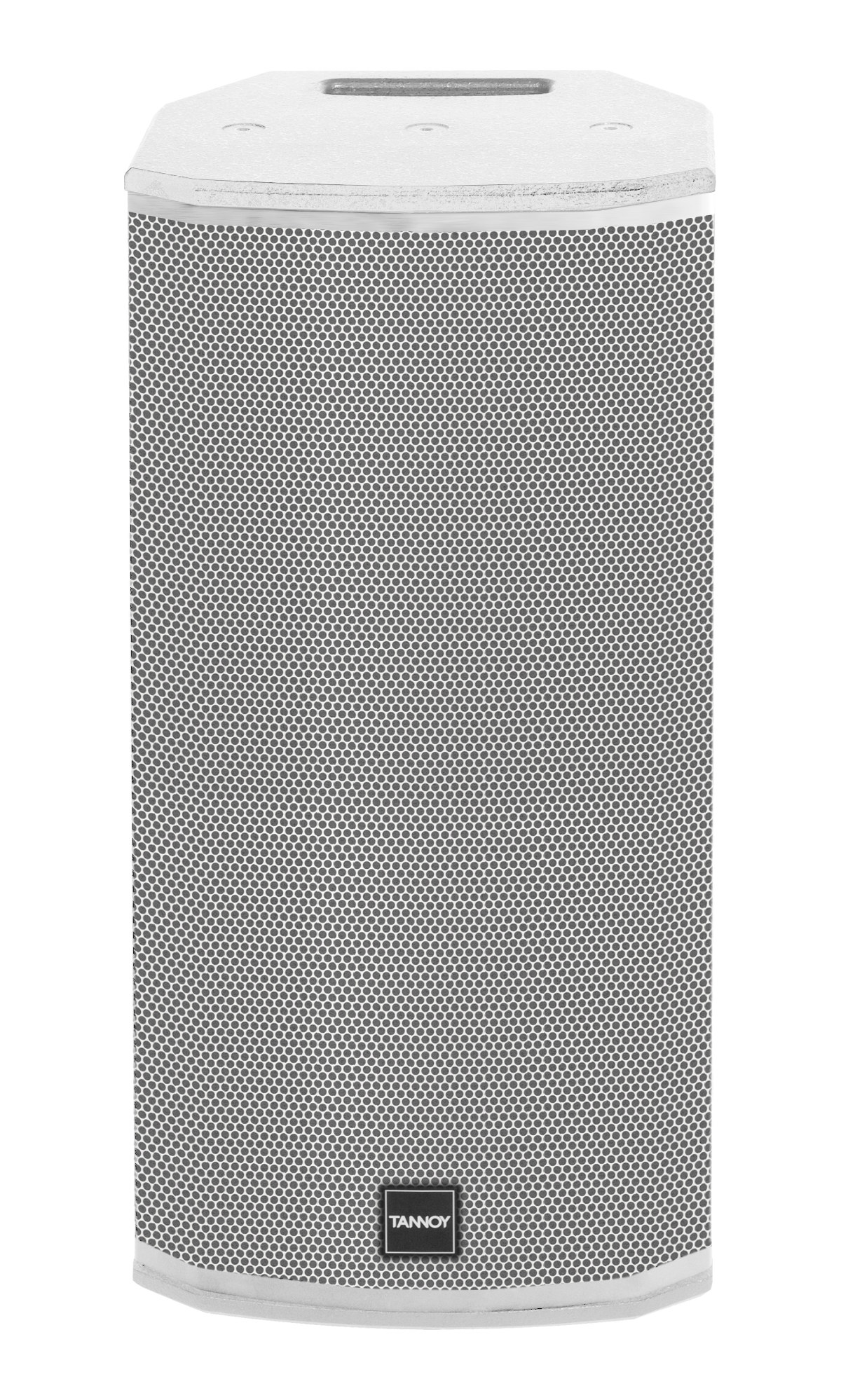

Tannoy VXP8.2-WH
1000W 8" Dual Concentric Powered Loudspeaker, White

OUR PART #:  VXP8.2-WH

Tannoy's VXP 8.2-WH, part of their VXP Series—conceived...
Learn More
Our Price: $1,499.99

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tannoy VXP8.2-WH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Tannoy's VXP 8.2-WH, part of their VXP Series—conceived, engineered and built with precision in the United Kingdom—represents an evolution of Tannoy’s core philosophies in self-powered loudspeaker design. It combines the technological refinement of the passive VX 8.2 with the IDEEA™ integrated power module from Lab.gruppen, resulting in a highly compact, ultra-reliable, and efficient, self-powered loudspeaker delivering a high-fidelity and sonically superior solution for small-medium scale sound reinforcement and high performance speech reproduction where transparency and vocal character are paramount. It has also been acoustically matched with the wider range of VXP Series models, making it an extremely capable component within much larger installations.

At the IDEEA module's heart is a patented Class D output stage capable of high power levels with very low distortion and minimal current draw – and all with a net operating efficiency in excess of 80%. It has a universal switching power supply that accepts any mains voltage from 70 – 265 V (± 10%) at 50 Hz or 60 Hz through the appropriate IEC cord. In Auto mode, it will turn on with signal present, and switches to standby mode after 20 minutes of no input, and in doing so reduces power consumption to less than 1 W (while in standby).  Manual control mode anables the speaker to be turned on and off as required.  switchable 90 Hz high-pass filter is also provided for use when adding a subwoofer.

Audio connection is done via female XLR and power via powerCON® (included) on the rear panel. The VXP 8.2-WH comes in a white textured paint finish with matching grille, and is also available in custom matched RAL colors (available separately).

Tannoy VXP 8.2-WH Features:

  • Full range multi-purpose powered sound reinforcement loudspeaker for portable and installation applications
  • 1,000 Watt power featuring LAB GRUPPEN IDEEA electronics Class-D amplification
  • 8" Dual Concentric full range driver for point source phase coherence
  • 8" low frequency driver for extended bass response
  • Tightly-controlled 90Âş dispersion for optimum coverage and forward projection
  • Ideal for FOH, floor monitor, delay and stage front fill applications
  • Switchable full range or high pass filter operation
  • Vented and internally braced plywood enclosure
  • Finished with hard wearing semi matt black paint
  • Rugged powder coated perforated steel mesh grille
  • Blanking plate for optional VTH pole mount
  • Versatile mounting via optional custom designed hardware
  • Fully balanced input and link output on Neutrik XLR connectors
  • Neutrik powerCON for a secure locking mains power connection
  • Designed and engineered in the U.K.

Tannoy VXP 8.2-WH Technical Specifications:

Performance

  • Frequency Response (-3 dB) (1)
  • Full Range Mode: 75 Hz - 35 kHz
  • Frequency Range (-10 dB) (1)
  • Full Range Mode: 60 Hz - 45 kHz
  • Frequency Response (-3 dB) (1)
  • High Pass Mode: 100 Hz - 35 kHz
  • Frequency Range (-10 dB) (1)
  • High Pass Mode: 80 Hz - 45 kHz
  • Dispersion (-6 dB): 90 degrees conical
  • Driver Complement: 1 x 200 mm (8.00") constant directivity Dual Concentric
  • Crossover: Passive 360 Hz and 1.5 kHz, with dynamic HF protection
  • Directivity Factor (Q): 8.1 averaged 1 kHz to 8 kHz
  • Directivity Index (DI): 9.2 averaged 1 kHz to 8 kHz
  • Rated Maximum SPL (2): Average: 117 dB
  • Peak: 123 dB

Distortion

  • 10% Full Power (8.94 V):
    • 2nd Harmonic 250 Hz: 0.58%, 1 kHz: 0.34%, 10 kHz: 1.73%
    • 3rd Harmonic 250 Hz: 0.34%, 1 kHz: 0.69%, 10 kHz: 0.15%
  • 1% Full Power (2.83 V):
    • 2nd Harmonic 250 Hz: 0.15%, 1 kHz: 0.11%, 10 kHz: 1.73%
    • 3rd Harmonic 250 Hz: 0.15%, 1 kHz: 0.37%, 10 kHz: 0.22%

Amplifier

  • Maximum signal input for clip: Input attenuator at Maximum: +4.5 dBu (Hard clip will occur at 14.5 dBu input signal)
  • Dynamic Range: 106 dB
  • Efficiency: >90%
  • Distortion: <0.05% @ 1 kHz - 3 dB output (22 kHz bandwidth)
  • Input Impedance: 10 kOhms (unbalanced)20 kOhms (balanced)

PSU

  • Input Connector: Locking Neutrik Powercon
  • Voltage Selection: Universal mains input
  • System Type: High efficiency, regulated switch mode Power supply
  • Efficiency: >85% typical
  • Input voltage: 100 Vac - 240 Vac +/- 10%, 50 - 60 Hz +/-10%
  • Mains fuse: Internal
  • Fuse type: 3.15AT
  • Mains: Inrush current limiter
  • Standby Power consumption: < 1 W
  • Idle Power consumption: < 15 W
  • Maximum Power consumption: 300 W

Protection Systems

  • Over Current: Output current limiter, always active
  • Clip limiter: Output voltage clip limiter, always active
  • Temperature: Over temperature causes protective mute
  • Brownout: Automatic protection & recovery
  • Mains: Inrush current limiter
  • Indicators:
    • 1 x Power LED
    • 1 x Signal LED
    • 1 x Limit LED (Power LED: Red = Standby, Green = On, Yellow = Temperature protection active)
  • Amplifier Type: Inherently bridged, globally modulated, high Performance single channel class D

Construction

  • Enclosure: 25.3 litre, 15 mm (0.62") birch plywood, vented and internally braced
  • Finish:
    • Textured white paint (custom colous available, contact your Sales Pro)
    • Powder coated perforated steel grille
    • Airnet cloth behind
  • Connectors:
    • 1 x female XLR (input)
    • 1 x male XLR (link)
    • 1 x Neutrik Powercon
  • Controls & Indicators:
    • Level Control
    • Power LED (Blue)
    • Signal LED (Green)
    • Limit/Protect LED (Red)
    • Full Range / HighPass Switch (110 Hz)
    • Power Mode Switch
    • Power Switch
  • Dimensions (H x W x D): 23.2" x 11.0" x 10.8" (590 x 280 x 275mm)
  • Net Weight (ea): 34.2 lbs (15.5 kg)
  • Shipping Weight: 38.6 lbs (17.5 kg)
  • Packed Quantity: 1
