Blackmagic Design HYPERD/VDUP25/12G
25 slot SD card 4K Duplicator/Encoder

OUR PART #:  HYPERD/VDUP25/12G

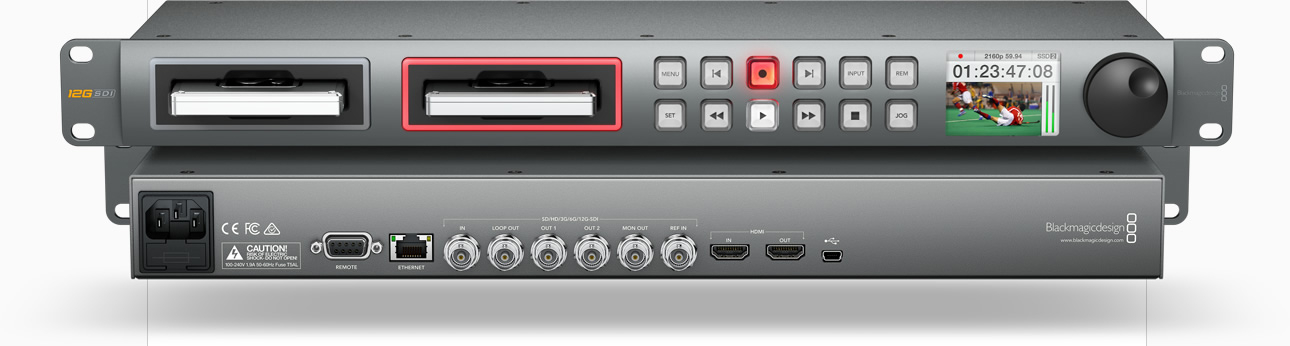

The Blackmagic Design HYPERD/VDUP25/12G HyperDeck Studio 12G is a more advanced version of HyperDeck Studio.
Learn More
Our Price: $1,995.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design HYPERD/VDUP25/12G
Qty:
In Stock

Similar Products

The Blackmagic Design HYPERD/VDUP25/12G HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.

Blackmagic Design HYPERD/VDUP25/12G Includes:

  • HyperDeck Studio 12G
  • SD card with software
  • User manual
  • Blackmagic HyperDeck SDK
  • Ethernet HyperDeck Control Protocol

Blackmagic Design HYPERD/VDUP25/12G Specifications:

  • Connections:
    • SDI Video Input: 1
    • SDI Video Output: 2
    • SDI Rates: 270 Mb, 1.5G, 3G, 6G, 12G.
    • HDMI Video Input: HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.
    • HDMI Video Output: HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2.
    • Analog Video Input: None.
    • Analog Video Output: None.
    • Analog Audio Inputs: None, embedded audio only.
    • Analog Audio Outputs: None, embedded audio only.
    • Timecode Connections: None.
    • SDI Audio Input: 16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • SDI Audio Output: 16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • HDMI Audio Input: 8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • HDMI Audio Output: 8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • Reference Input: Tri-Sync or Black Burst
    • Recorder Configuration: Front panel configurable or USB 2.0 high speed interface.
    • Computer Interface: 1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control

  • Standards:
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards:
      • 720p50, 720p59.94, 720p60
      • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
      • 1080PsF23.98, 1080PsF24
      • 1080i50, 1080i59.94, 1080i60
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B.
    • SDI Metadata Support: HD RP188 and closed captioning CEA-708.
    • Audio Sampling: Television standard 24-bit, 48 kHz sample rate.
    • Video Sampling: 4:2:2
    • Color Precision: 10-bit
    • Color Space: REC 601, REC 709
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
  • Media:
    • Media: 2 x SSD for SD, HD and Ultra HD recording.
    • Media Type: SATA-II or SATA-III solid state disc.
    • Media Format: Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
  • Supported Codecs: Uncompressed QuickTime, Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60.
  • Computer Capture: None
  • Control:
    • Built-in Control Panel: 12 buttons for transport and menu control, 2.2 inch color display.
    • External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol
  • Software:
    • Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only)
    • Internal Software Upgrade: Loaded at system start, or via updater software using USB port.
  • Operating Systems:
    • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
    • Windows 8.1 or Windows 10.
  • Display: Built-in LCD for video, audio and timecode monitoring and menu settings.
  • Physical Installation: 1 rack unit size. Less than 7" deep.
  • Power Supply: 1x Internal 100 - 240V AC.
  • Physical Specifications:

  • Environmental Specifications:
    • Operating Temperature: 41°to 104°F (5° to 40°C)
    • Storage Temperature: -4° to 113°F (-20° to 45°C)
    • Relative Humidity: 0% to 90% non-condensing
  • Warranty: 12 Month Limited Manufacturer's Warranty
