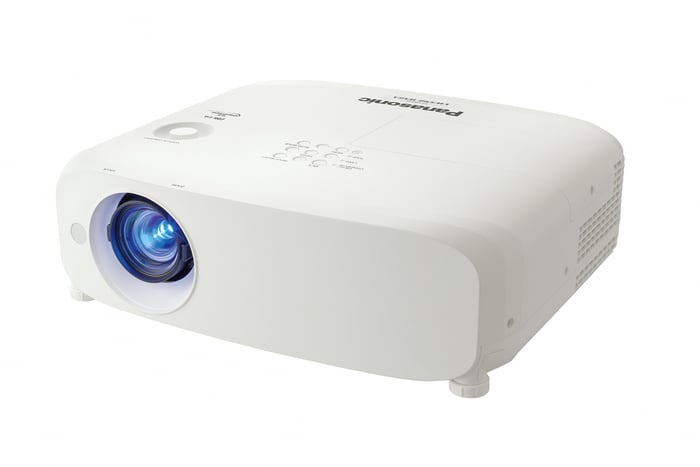

Panasonic PT-VW540U
5500 Lumen WXGA LCD Projector with Lens

OUR PART #:  PTVW540U

Whether for the classroom or the boardroom, bright ideas make teamwork easy - so facilitate those ideas with the Panasonic PT-VW540N.
Learn More
Panasonic PT-VW540U - Filter Replacement View
Panasonic PT-VW540U - Lamp Replacement View
Panasonic PT-VW540U - Lens Shift Feature View

Click a thumbnail to see more images. (6 total)

Our Price: $1,157.31
List Price: $1,799.00
You save 36%!
Panasonic PT-VW540U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

Whether for the classroom or the boardroom, bright ideas make teamwork easy - so facilitate those ideas with the Panasonic PT-VW540N. This portable LCD project is a member of Panasonic's PT-VZ580 series of business projectors with brightness and portability among there many features. The PT-VW540N can be used in spaces large or small, allowing sharing on the big screen easier than ever.

Panasonic PT-VW540U Features:

  • 6-Colors Adjustment and Color Correction Functions
  • Efficient Low-Maintenance Design
  • Daylight View Basic
  • Quiet Operation
  • 1.6x Zoom Lens and Lens Shift Function
  • Quick Lamp and Filter Replacement
  • Auto Screen Image Rotation
  • Easy Geometric Adjustment Function
  • USB Display Function
  • Additional Features include:
    • Direct Power Off
    • Built-in Speaker
    • ECO Management Function
    • Whiteboard and Blackboard Modes
    • Emulation Mode
    • Multi Monitoring & Control Software
    • Crestron Connected™, AMX DD, and PJLink™ Compatible
    • Auto Input Signal Search
    • Early Warning Software ET-SWA100 Series (Optional)
    • Startup Logo Function
    • Presentation Support Function
    • Audio Standby Mode
    • Digital Zoom Function
    • Anti-theft Features
    • Built-in Closed Caption Decoder

Panasonic PT-VW540U Specifications (partial):

  • Power supply: AC 120 V, 50/60 Hz
  • Power consumption: 385 W
  • LCD panel:
    • Panel size: 0.64 inches (1.63 cm) (16:10 aspect ratio)
    • Display method: Transparent LCD panel (× 3, R/G/B)
    • Pixels: 1,024,000 (1280 × 800) × 3, total of 3,072,000 pixels
  • Lens: 1.6x manual zoom (throw ratio: 1.08–1.76:1), manual focus F 1.60–1.90, f 15.31–24.64 mm
  • Lamp: 280 W UHM lamp × 1
  • Screen size (diagonal): 30-300 inches
  • Brightness: 5,500 lm [input signal: PC, lamp power:Normal, picture mode: Dynamic, Daylight View: OFF, Auto Power Save: OFF]
  • Center-to-corner uniformity: 85%
  • Contrast: 16,000:1 (all white/all black) [input signal: PC, lamp power: Normal, picture mode: Dynamic, Iris: On, Daylight View: OFF, Auto Power Save: OFF]
  • Resolution: 1280 × 800 pixels (Input signals that exceed this resolution will be converted to 1280 × 800 pixels.)
  • Keystone correction range: Vertical: maximum ±35 ° (auto/manual, input: W XGA), Horizontal: maximum ±35 ° (manual, input: WXGA), Up to a total of ±55 ° during simultaneous horizontal and vertical correction.
  • Built-in speaker: 1 1/16” (4.0 cm) round shape × 1, output power: 10 W (monaural)
  • Cabinet materials: Molded plastic
  • Dimensions: 15-5/16” × 4-29/32” × 13-1/16” (389 × 125× 332 mm)
  • Weight: Approximately 10.6 lbs (4.8 kg)

NOTE: For additional information, features and specifications; please consult the documentation tab above.
