8" Pendant Subwoofer with Crossover, 8 Ohm Or 70/100V Operation


NOTE: This item has cosmetic flaws, but is in working condition. Please contact your Sales Pro for more information on this and other products.
Learn More
Sale Price: $209.99
List Price: $415.00
You save 49%!
Be the first to review.

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


In Stock
Similar Products

NOTE: This item has cosmetic flaws, but is in working condition. Please contact your Sales Pro for more information on this and other products.

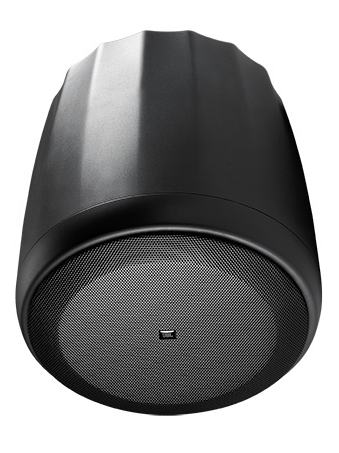

The JBL Control 60PS/T pendant subwoofer loudspeaker provides bass extension and high impact for high-fidelity sound systems in a wide variety of applications including restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized. Featuring 150 Watt power handling and low distortion, the long-excursion 8" (200 mm) low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 2" (50 mm) voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty cycle, working conditions.

NOTE: Control 60PS/T is sold in pairs. For more information, please contact your Full Compass Sales Pro.

JBL Control 60PS/T Includes:

  • Two suspension cable systems (see “suspension”)
  • Six removable locking 2-pin euroblock connectors
  • Six rubber cover boots for euroblock connectors

JBL Control 60PS/T Features:

  • High impact, 150 Watt direct radiating pendant subwoofer with built-in passive crossover for up to four satellite speakers
  • 8" (200 mm) long-excursion driver
  • 8 ohm (150 Watt) and 70V/100V (100 Watt) operation
  • Hanging hardware with 15 ft (4.5 m) galvanized steel cable and easy to adjust clamp
  • Stylish design
  • UL listed (speaker and hanging cable system)

JBL Control 60PS/T Specifications:

  • Frequency Range (-10 dB): 42 Hz – 350 Hz
  • Frequency Response (+/- 3 dB): 55 Hz – 125 Hz
  • Power Capacity:
    • 300 Watts Continuous Program Power, 100 hrs
    • 150 Watts Continuous Pink Noise, 100 hrs
  • Nominal Sensitivity (2.83V/1m): 88 dB
  • Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Impedance: 8 ohms
  • Transformer Taps: 110W, 55W, 30W (& 15W @70V). Set via rotary tap-selector switch (70V/100V taps along with direct 8
  • Transformer Insertion Loss: 0.98 dB @ 15W, 0.99dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W
  • Standalone Hookup: Connect to Input connector; built-in low-pass filter permanently engaged.
    • Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers.
  • Subwoofer-Satellite Hookup: For either two orfour satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling). Satellite speakers to be low-Z type (8 to 16)
  • Transducer: 8" (200mm) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former.
  • Enclosure Material: High impact polystyrene
  • Grille: Zinc-plated steel grille with powder-coat finish, foam backing (grille and grille backing are removable for painting)
  • Environmental: Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 –splash-proof rating
  • Termination: Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included.
  • Suspension: Two identical suspension cable systems (one as main suspension cable and the other as safety cable), each consisting of 15 ft (4.5 m) long, 0.077" (2 mm) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cable has SWL rating of 45 kg (99lb).
  • Safety Agency: Speaker listed per UL1480(UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
  • Dimensions:
    • 13.1" (333 mm) diameter, 13.6" (344 mm) height to top of cabinet.
    • 14.5" (369 mm) to top of suspension bracket.
  • Net Weight: 16.7 lbs (7.6 kg)
  • Shipping Weight: 38.7 lbs (17.6 kg) per pair-packed carton
  • Optional Accessories: MTC-PC60 full top panel /terminal cover. Wire access holes in plastic cover to be drilled by installer to suit the number and dimensions of wire.
  • Colors: Available in black or white, Paintable
