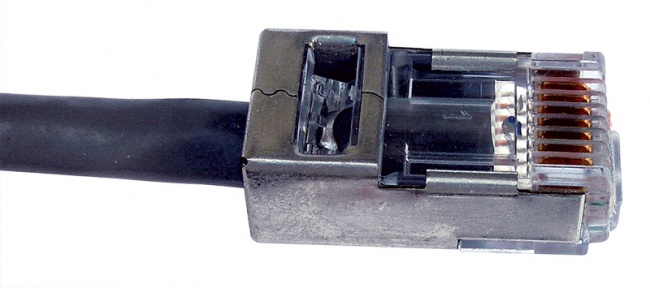

Platinum Tools 202020J Jar of 50 Shielded EZ-RJ45 Connectors for CAT5e and CAT6 Cables with Internal Ground

Platinum Tools' EZ-RJ45® fully shielded plug, with an internal ground, combines the performance advantage exclusive to the EZ-RJ45® design with the performance advantage inherent to shielded products to provide an unparalleled solution for the market.

Platinum Tools Shielded EZ-RJ45 Connectors Features:

• EZ-RJ45® design allows the wires to pass through the connector so the twists in each pair can be pulled closer to the contacts than conventional plugs
• Maintaining the twists to the point of termination significantly decreases crosstalk and markedly increases performance
• Fully shielded products provide reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies
• Significantly improve Shannon capacity
• Substantially improve noise immunity at all frequencies, especially above 30 MHz when cable balance starts to significantly degrade

Platinum Tools Shielded EZ-RJ45 Connectors Specifications:

• Part Number: 202020J
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated. RoHS compliant
• Max Cable OD: 0.260" (6.60 mm), Max Insulated wire OD: 0.041" (1.041 mm)
• For solid round or stranded wire cables
• Made in the USA, Patented
• TAA Compliant
