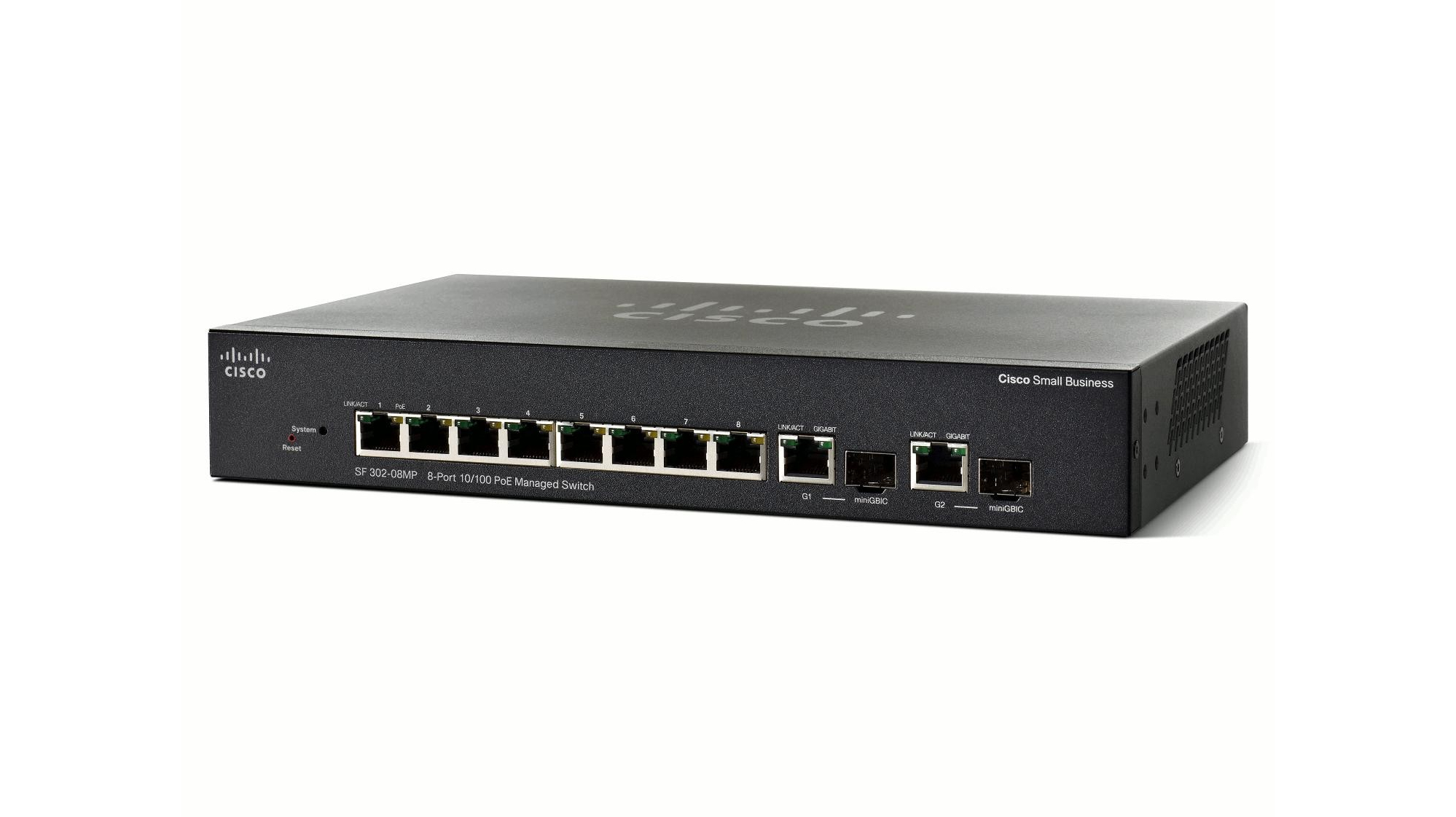

Elite Core SF302-08MP-CORE 8-Port Managed PoE Distribution Module with Gigabit Uplinks

This unit, Elite Core Audio's SF302-08MP from Cisco, has been specially optimized for use with the Elite Core PM-16 System. It delivers power and audio to up to (8) PM-16 Personal Mixers via CAT5e cable. Any PM-16 mixers connected to it don't need a power supply.

Elite Core Audio SF302-08MP Specifications:

• Manufacturer #: SF-302-08MP-CORE
• Power Over Ethernet:
  • Power Dedicated to PoE: 124W
  • Number of Ports That Support PoE: 8
• Power Consumption:
  • Power Savings Mode: Energy Detect
  • Power Consumption, Worst Case:
    • 110V=136.4W
    • 220V=137.1W
  • Heat Dissipation: 467.8 BTU/hr
• Ports:
  • Total System Ports: 8 Fast Ethernet + 2 Gigabit Ethernet
  • RJ-45 Ports: 8 Fast Ethernet
  • Combo Ports (RJ-45 + SFP): 2 Gigabit Ethernet Combo
• Buttons: Reset
• Cabling Type:
  • Unshielded twisted pair Category 5 or better for 10BASE-T/100BASE-TX
  • UTP Category 5 Ethernet or better for 1000BASE-T
• LEDs: System, Link/Act, PoE, Speed
• Flash: 16 MB
• CPU: 128 MB memory
• Packet Buffer Memory: 4 MB
• Power Supply: 100-240V, 47-63 Hz, internal, universal
• MTBF: @ 40° C: 63,569 hours
• Certifications: UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
